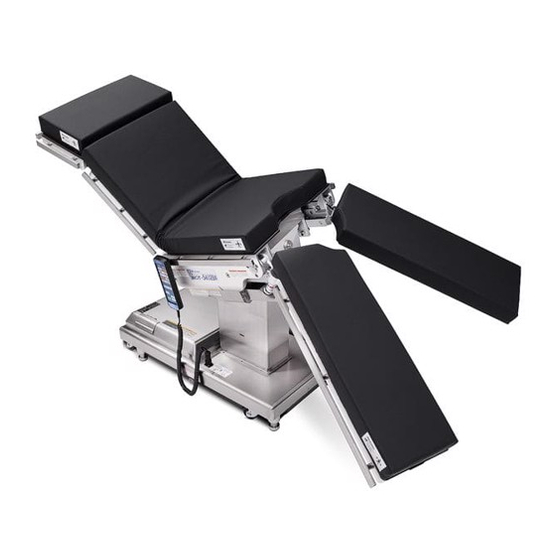

Mizuho MOT-1602BW Operator's Manual

Operating table
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

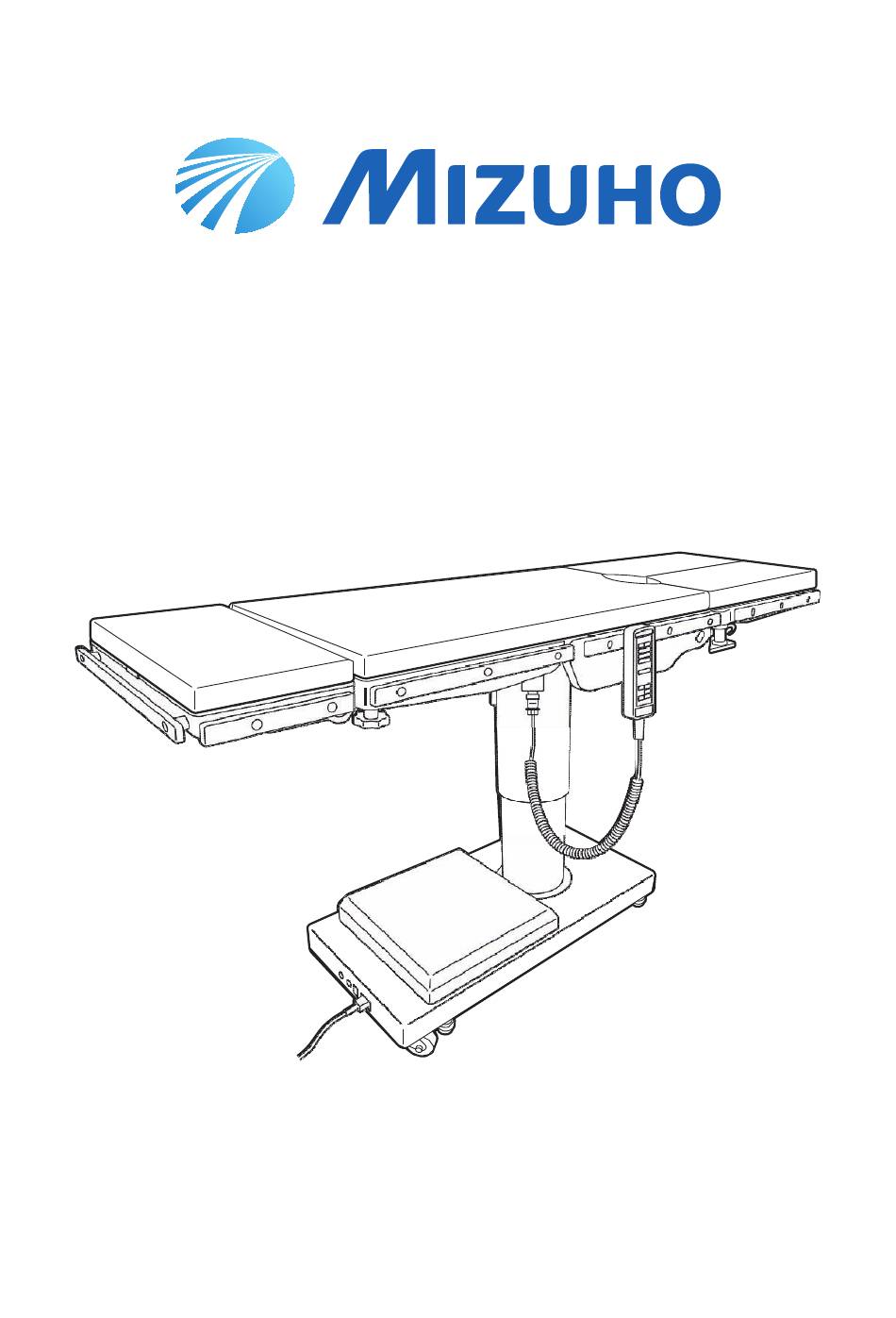

Operating Table MOT-1602BW
Operator's Manual
This operating table is designed for medical operations. Using this operating table for any
other purpose other than this intended use may cause serious injury.
The operator and the person in charge of the maintenance of this operating table must read
this operator's manual thoroughly and understand the contents before operating, inspecting,
adjusting and maintaining it.
Keep this manual for reference in a place where is readily accessible.
MES-CK18-261-31EN Ver.1 2018.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOT-1602BW and is the answer not in the manual?

Questions and answers

Related Manuals for Mizuho MOT-1602BW

Summary of Contents for Mizuho MOT-1602BW

  • Page 1 Operating Table MOT-1602BW Operator’s Manual This operating table is designed for medical operations. Using this operating table for any other purpose other than this intended use may cause serious injury. The operator and the person in charge of the maintenance of this operating table must read this operator's manual thoroughly and understand the contents before operating, inspecting, adjusting and maintaining it.

  • Page 2: Table Of Contents

    Table of contents Introduction ………………………………………………………… 1 This manual ……………………………………………………………………… 1 Intended use and this product ………………………………………………… 1 Accessories ……………………………………………………………………… 2 Safety precaution ………………………………………………… 3 Read thoroughly before using ………………………………………………… 3 Labeling ………………………………………………………………………… 8 Section Introduction ………………………………………………12 Main unit …………………………………………………………………………12 Control unit ………………………………………………………………………13 Operation ……………………………………………………………14 Installation and battery charging ………………………………………………14 Turning on/off the power ………………………………………………………17...

  • Page 3: Introduction

    . Introduction 1.1 This manual This manual contains information for safely and effectively using this product. Before operating this product, read this manual thoroughly to understand how to operate, inspect, adjust and maintain the product. Failure to follow these instructions could lead to serious injury. The safety information is categorized as per the following so that the contents of warnings and cautions, and the details of warnings and cautions which are labeled on the product may be comprehended.

  • Page 4: Accessories

    1.3 Accessories „ „ Standard components and accessories Mattresses (for head, back and hips, and legs) Control unit Main unit Operators manual...

  • Page 5: Safety Precaution

    . Safety precaution 2.1 Read thoroughly before using Never perform the following when you use the product. Otherwise, damage to the operating table, electrical shock, and/or fire may occur. (1) Head plate and leg plate Do not step or sit on the head plate or the leg plate(s). The operating table may tip over resulting in injury. WARNING Before lowering the table or placing it in a reverse Trendelenburg position, check if there are any devices...
  • Page 6 (2) Control unit • Do not forcibly pull on the control unit cord. • Do not subject the control unit to strong shocks. The control unit may get CAUTION damaged. (3) Power cord • Do not place any heavy objects on the power cord. •...
  • Page 7 • Make sure to inspect and maintain the operating table before and after use. The operating table may require replacement of the parts due to significant wear, deterioration, and/or breakage depending on the usage conditions and frequency usage. • For preventive maintenance and inspections, contact your distributor or Mizuho directly. ● The usage of high-frequency surgical equipment • When using a high-frequency surgical equipment and/or a cardiac defibrillator,...
  • Page 8 4. As with step 3, disinfect the surfaces of the tables and side rails. 5. Wipe off the operating table with a clean dry cloth 15 minutes after disinfecting it. • Make sure to use Mizuho authorized disinfectants. The disinfectants are as shown below.
  • Page 9 ● Moving and transporting • Follow the procedures below to move the operating table. CAUTION * Before moving the operating table, disinfect the entire operating table in order to prevent infection. 1. Turn off the power and disconnect the power cord from the medical grade outlet. 2. Check if the handles and levers are in fixed positions, and each section is fixed firmly.

  • Page 10: Labeling

    2.2 Labeling The operating table is labeled at the locations shown as below. Before use, make sure to understand the contents of the labels. „ „ Warning and Caution labels (1) C651608  (2) C651607  (3) C653624  (4) C656741 ...
  • Page 11 „ „ Other labels (1/2) (10) (11) (16) (15) (14) (13) (12) (9) C600516 (10) C651609   (11) C651615 (12) C651618   (13) C653618  (14) C653623  (15) C651605  (16) C610501 ...
  • Page 12 „ „ Other labels (2/2) (17) (17) (17) (17) (17) (20) (19) (18) (17) C653620 (18) C651616 (19) C651617 (20) C651612 or C651626 or C651627 or C651612 or C646058 or C646059 or C646057...
  • Page 13 „ „ Labeling list Symbol Description Label no. Indicates a possibility of injury or even death if operates the (1) (2) (3) (5) (6) (7) table without following the warning. General prohibition sign General mandatory action sign. (5) (6) Refer to the operators manual (5) (13) (14) (15) Enclosure Class (Splash-proof) (13)

  • Page 14: Section Introduction

    . Section Introduction 3.1 Main unit Leg plate (*1) Waist plate Back plate Head plate (*1) Leg plate flexing lever Leg plate fixing lever Table locking Head plate lever flexing lever Control unit Head plate fixing knob Control unit connector Fig.

  • Page 15: Control Unit

    3.2 Control unit MOT1602BW Power indicator Battery indicator Reverse Trendelenburg: Trendelenburg: Head down Head up Lateral tilt: Left down Lateral tilt: Right down Back plate bending: Down Back plate bending: Up Lift: Down Lift: Up Flex Reflex Brake lock Brake unlock Level E switch Power ON/OFF switch...

  • Page 16: Operation

    . Operation 4.1 Installation and battery charging „ „ Installation space This product requires the installation space shown as below. 2.5 m or more 2.5 m or more 2.5 m or more 2.5 m or more...
  • Page 17 „ „ Attaching the control unit Align the connector with the guide and insert it into the receptacle properly. Turn the connector ring in the direction of the arrow until it stops. „ „ Detaching the control unit When you replace the control unit, detach the connector from the receptacle.
  • Page 18 (ON) soon, the battery may degrade. Request repairs from your distributor or Mizuho. Press the power on/off switch. Battery charging starts. The power indicator lights and the battery indicator blinks showing the battery charge level reaching 30%, 75% and 100% in that order.

  • Page 19: Turning On/Off The Power

    4.2 Turning on/off the power „ „ Turning on the power Turn on the power switch. ON/OFF Press of the control unit. The power indicator lights and battery indicator blinks Power on/off switch Check the battery lamp. If the power indicator and the battery indicator of the control unit blinks, battery charging is necessary.
  • Page 20 „ „ Turning off the power Turn on the power switch. The power indicator and battery indicato go out, and then the power is turned off. (OFF)

  • Page 21: Fixing And Unfixing The Operating Table

    4.3 Fixing and unfixing the operating table „ „ Fixing the operating table Before you operate the operating table, activate the brake to fix the operating table. ENERGIZE Hold down and press NOTE The brake is activated to fix the operating table. • If the brake cannot be activated and the operating MOT1602BW table is not fixed, refer to "Troubleshooting". • Operations such as raising the tabletop will not operate until the fixing of the tabletop is completed.

  • Page 22: Tilting The Tabletop Laterally

    4.4 Tilting the tabletop laterally „ „ Tilting to the left NOTE The maximum angle ENERGIZE Hold down and press TILT LEFT achieved in the right down The tabletop tilts to the left in the view from the head side. and left down position is 23°...

  • Page 23: Trendelenburg

    4.5 Trendelenburg „ „ Reverse Trendelenburg (Head up) NOTE The maximum angle of ENERGIZE REV. TREND. Hold down and press head up or head down is The tabletop moves to the head up position. 28 degrees from the level Head up position position.

  • Page 24: Tilting The Back Plate

    4.6 Tilting the back plate „ „ Moving up the back plate NOTE • The maximum angle ENERGIZE Hold down and press BACK UP achieved in the back plate The back plate moves up. up position is 90° to the level position. MOT1602BW • The maximum angle 90°...

  • Page 25: Changing The Tabletop Height

    4.7 Changing the tabletop height „ „ Moving up the tabletop NOTE • The maximum height from ENERGIZE Hold down and press the floor to the tabletop The tabletop moves up. upper surface is 1020 mm. • The minimum height from MOT1602BW the floor to the tabletop upper surface is 670 mm. Move up 1020 mm „...

  • Page 26: Flexing Or Reflexing The Tabletop

    4.8 Flexing or reflexing the tabletop „ „ Flexing the tabletop (center up) ENERGIZE Hold down and press FLEX The back plate flexes downward and the waist plate turns to the Trendelenburg head up position. MOT1602BW Center up „ „ Reflexing the tabletop (center down) ENERGIZE Hold down and press REFLEX The back plate reflexes upward and the waist plate turns to the reverse Trendelenburg head down position. MOT1602BW Center down...

  • Page 27: Returning To Level

    4.9 Returning to level „ „ Returning the tabletop to level position NOTE Raising, and braking do not ENERGIZE Hold down and press LEVEL function. The tabletop returns to the level position after Trendelenburg, lateral tilting, back plate tilting, and flexing are worked. MOT1602BW...

  • Page 28: Adjusting The Head Plate

    4.10 Adjusting the head plate The head plate can be flexed in 15° increments, to 4 different positions upward (maximum 60°) and to 6 different positions downward (maximum 90°). The head plate can also be detached. „ „ Flexing the head plate Make sure to tighten the head plate fixing knob securely. WARNING If the head plate moves, the patient may get injured. Pull the head plate flexing lever in the head direction. The head plate can be flexed upward and downward. Flex the head plate and then release the lever. The head plate is fixed in that position.
  • Page 29 „ „ Attaching the head plate Make sure to tighten the head plate fixing knobs securely. WARNING If the head plate moves, the patient may get injured. Hold the both sides of the head plate firmly and align the insertion shaft of the head plate with the reception hole in the back plate, and insert. After checking that the head plate is completely inserted, tighten the two head plate fixing knobs located on the lower side of the back plate.

  • Page 30: Adjusting The Leg Plate

    4.11 Adjusting the leg plate The leg plates are flexable, outward stretchable, and detachable. „ „ Flexing the leg plate The right and left leg plates are independently flexable up to 90°. Pull the leg plate flexing lever toward the leg side, and then push the leg plate downward. To reset the leg plate to the horizontal position, hold and bring up the tip of the leg plate. Leg plate flexing lever  ...
  • Page 31 „ „ Detaching the leg plates Hold the ends of the leg plate at the leg side Turn the leg plate fixing knob. Hold and pull up the both ends of the leg plate. Leg plate Leg plate fixing knob „ „ Attaching the leg plates Hold the both ends of the leg plate and insert the leg plate shaft into the leg plate clutch.

  • Page 32: Turning The Tabletop

    4.12 Turning the tabletop The table top can be turned. „ „ Turning the table • Make sure to lock the table locking lever. If the table top moves, the patient may get injured. WARNING • Do not turn the table top with a patient put on. The patient may fall from the operating table.

  • Page 33: Maintenance And Inspection

    Make sure to inspect the items below before and after use. If there are any abnormalities, request your distributor or Mizuho for repairs. Otherwise it may cause WARNING problems during surgery. Inspect the items below. If there is any problem, request your distributor or Mizuho for repair. (1) Mattresses „ Before use • Check all the mattresses for any damage.
  • Page 34 (3) Table plates „ Before use • Check all the table plates for any damage. „ After use • Check all the table plates for any damage or dirt. (4) Control unit „ Before use • Press the switches on the control unit to see if all functions are working properly. (5) Oil leakage „...

  • Page 35: Periodic Replacement Parts

    5.2 Periodic replacement parts Mizuho specifies that the following parts need to be periodically replaced for safety use. The replacement time is a rough standard. Earlier replacement may be required depending on the usage condition and/or usage frequency. Request your distributor or Mizuho for replacements. Control unit Battery Caster Brake rubber Power cord...

  • Page 36: Specification

    . Specification 6.1 Specification table Product name Operating Table MOT-1602BW Highest 1020mm Elevation range Lowest 670mm Head down 28° Trendelenburg angle Head up 28° Right down 23° Lateral tilt angle Left up 23° Back plate flexing 90° angle Down 30° Flexing Center up / Center down...

  • Page 37: External View

    Note 3: Excluding the side rail Note 4: IEC 60601-1, Medical electrical equipment - Part1: General requirements for safety Note 5: Company standard (in case that appropriate maintenance and inspection is done) Note 6: Based on Mizuho's own validation data 6.2 External view  ...

  • Page 38: Troubleshooting

    . Troubleshooting „ „ When the control unit cannot be used „ Use the emergency brake release handle to release the brake Do not tilt the tabletop while the emergency brake release handle is in the "UNLOCK" position. WARNING The patient may fall from the operating table. In case of electrical trouble, the operating table can be moved by using the emergency brake release handle.

  • Page 39: Before Contacting For Repairs

    Turn the emergency brake release à the control unit does in the release (UNLOCK) position. handle toward "LOCK". ( Page 36) not function. If the situation does not improve even if the above countermeasures are implemented, request repairs from your distributor or Mizuho.
  • Page 40 „ Warranty MIZUHO Corporation will repair defective parts of this product without charge for one year from the date of delivery/installment except for cases of damage caused by a third party’s repair, act of nature, improper use or damage on purpose. All other warranty terms and conditions are subject to regulations of MIZUHO...

  • Page 41: App. Electromagnetic Compatibility

    Operating Table MOT-1602BW should be observed to verify normal operation in the configuration in which it will be used. GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC EMISSIONS Operating Table MOT-1602BW is intended for use in the electromagnetic environment specified below. The customer or the user of Operating Table MOT-1602BW should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
  • Page 42 Operating Table MOT-1602BW is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of Operating Table MOT-1602BW can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and Operating Table MOT-1602BW as recommended below, according to the maximum output power of the communications equipment.
  • Page 43 GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY Operating Table MOT-1602BW is intended for use in the electromagnetic environment specified below. The customer or the user of Operating Table MOT-1602BW should assure that it is used in such an environment. Electromagnetic Immunity test IEC 60601 test level Compliance level environment – guidance Floors should be wood, Electrostatic concrete or ceramic tile.
  • Page 44 GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY Operating Table MOT-1602BW is intended for use in the electromagnetic environment specified below. The customer or the user of Operating Table MOT-1602BW should assure that it is used in such an environment. Electromagnetic environment – Immunity test IEC 60601 test level Compliance level guidance Portable and mobile RF...
