User's Guide
LMK1C1104 Low-Additive, Phase-Noise LVCMOS Clock
Buffer Evaluation Board
Y4
Y6
The LMK1C1104 is a high-performance, low additive jitter LVCMOS clock buffer with one LVCMOS input, four
LVCMOS outputs, and a global output enable pin.
This evaluation module (EVM) is designed to demonstrate the electrical performance of the LMK1C1104.
Throughout this document, the acronym EVM and the phrases evaluation module and evaluation board are
synonymous with the LMK1C1104EVM.
The LMK1C1104EVM is equipped with 50-Ω SMA connectors and impedance-controlled 50-Ω microstrip
transmission lines for best performance.
SNAU249A – DECEMBER 2019 – REVISED DECEMBER 2020
Submit Document Feedback
ABSTRACT

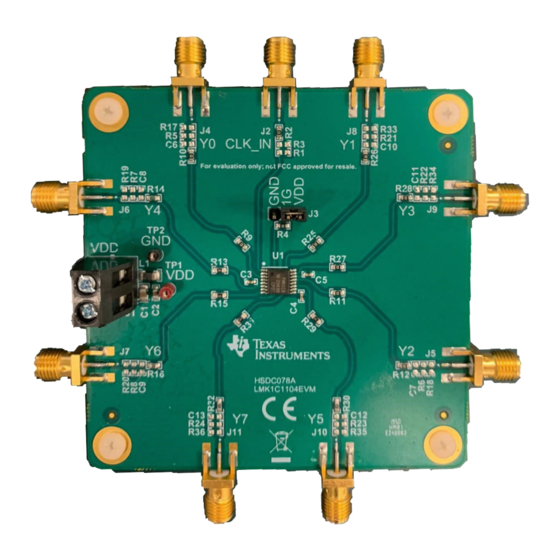

Figure 1-1. LMK1C1104EVM
Figure 8-1
illustrates the LMK1C1104EVM.
LMK1C1104 Low-Additive, Phase-Noise LVCMOS Clock Buffer Evaluation
Copyright © 2020 Texas Instruments Incorporated
Y3
Y2
Board
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMK1C1104 and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments LMK1C1104

Summary of Contents for Texas Instruments LMK1C1104

  • Page 1 ABSTRACT Figure 1-1. LMK1C1104EVM The LMK1C1104 is a high-performance, low additive jitter LVCMOS clock buffer with one LVCMOS input, four LVCMOS outputs, and a global output enable pin. This evaluation module (EVM) is designed to demonstrate the electrical performance of the LMK1C1104.

  • Page 2: Table Of Contents

    Clock output traces are length matched 2 Signal Path and Control Circuitry The LMK1C1104EVM supports single-ended inputs up to 250 MHz. For more information about the LMK1C1104, see the LMK1C1104 product data sheet available for download from the TI Web site (www.ti.com).

  • Page 3: Power-Supply Connections

    The LMK1C1104EVM operates from a single 3.3-V / 2.5-V / 1.8-V supply. 5 Enabling/Disabling the Outputs The enable pin, 1G, of the LMK1C1104 can be controlled using jumper J3. Pull 1G to VDD by shunting pins 2 and 3 of J3 to enable the outputs as shown in Figure 5-1.

  • Page 4: Output Clock

    By default, a shunt is placed on pins 2 and 3 to enable the outputs. 6 Output Clock The LMK1C1104 fans out four LVCMOS outputs. The outputs can be loaded using the pullup and pulldown footprints. No resistor has been soldered in those footprints.

  • Page 5: Schematic

    10uF 0.1µF 0.1µF 0.1µF 1µF CLKIN CLKIN LMK1C1104PW Figure 8-1. LMK1C1104 Schematic SNAU249A – DECEMBER 2019 – REVISED DECEMBER 2020 LMK1C1104 Low-Additive, Phase-Noise LVCMOS Clock Buffer Evaluation Board Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 6: Revision History

    Added content to the Output Clock section......................• Changed Table 7-2 ............................• Changed Figure 8-1 ............................5 LMK1C1104 Low-Additive, Phase-Noise LVCMOS Clock Buffer Evaluation SNAU249A – DECEMBER 2019 – REVISED DECEMBER 2020 Board Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
