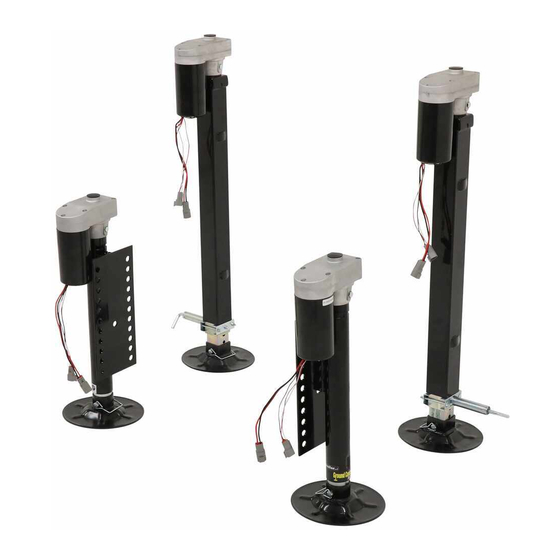

- Page 1 Ground Control Landing Gear ® OEM INSTALLATION MANUAL...
- Page 2 When an out-of-sync landing gear is fully retracted, the breaker will trip and allow the other landing gear to fully retract to synchronize both landing gear again. Note: Qualified personnel are required to install the Ground Control 3.0 Landing Gear system. Note: The landing gear system is for 5th wheel applications only.
- Page 3 Installation Landing Gear Note: The landing gear mounting brackets are mounted on the trailer frames by LCI. Attach landing gear (Fig. 1) to the mounting brackets welded to the trailer (Fig. 2A). Use the tabs (Fig. 1) on both sides of the landing gear leg to position it properly. The tabs should be in against the frame rails and out by the bolts of the brackets (Fig.
- Page 4 Wiring Landing Gear Note: Circuit protection is not supplied. LCI recommends two 20 amp auto-reset circuit breakers be used for the landing gear motors in addition to a 30 amp auto-reset circuit breaker placed in line with the power source. Note: See Wiring Diagram to complete these steps.
- Page 5 Wiring Diagram All oeM supplied wiring to be 6 AWG Black Black Black Silver (AUX) Silver (AUX) Recommended Bronze (BAt) 20 Amp Breaker (oeM Supplied) Landing Recommended Bronze (BAt) Gear Switch 20 Amp Breaker Silver (AUX) Mounted (oeM Supplied) Curbside Recommended 30 Amp Breaker Bronze (BAt)
- Page 6 operation Never attempt to operate the system without the footpad properly secured or severe product damage, serious personal injury or death may occur. electric landing gear is designed for vertical operation. excessive side loads may cause damage to the landing gear. the bolt-on pull pin MUSt be inserted fully through both sides of the tube prior to use.
- Page 7 Notes __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________...
- Page 8 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
