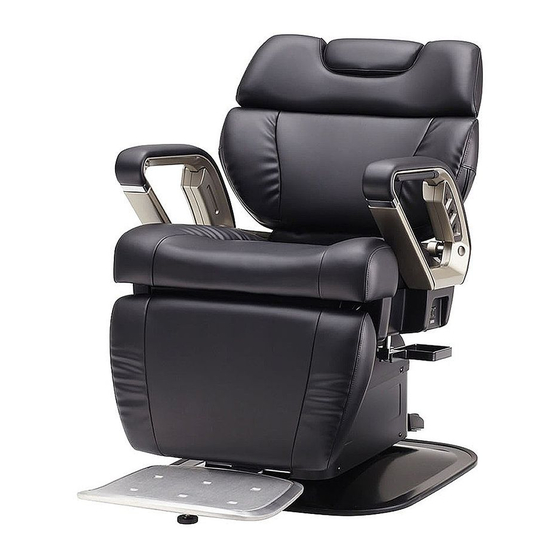

Takara Belmont INOVA-EX Installation Instruction

INOVA-EX
This installation instruction is an annex of the operation manual. However, this instruction contains important
information. Please keep this installation instruction in a safe place for your future reference as well as
the operation manual.
Installation Procedure
1
Carry the chair to the predetermined position.
Hold the pallet when carrying.
(If holding the upper part only, the base may drop
off. This may cause injury.)
Do not lift the front portion of the seat, the seat portion will break and it may
Warning
cause bodily harm or property damage.
2
Apply a rabber ring to the base.
After the chair is placed on the installation position, apply a rubber ring to the rim of the
base with lifting the base from the floor.
3
Connect the equipment to the power supply.
Use an outlet of AC 230V(7A or higher).( 220V/240V (7A or higher),110V/120V (12A or higher))
Be sure to connect the earth.
This will prevent electric shock and protect the electric circuits. If you fail to connect the earth, we will
not assume responsibility to any accident due to electric leakage.
All manuals and user guides at all-guides.com
Installation Instruction
Rubber Ring
Base
After removed from the pallet, the chair must
be lifted up from the floor with holding the iron
Plate below the UP/DOWN switch and then
carried with holding the base.
UP/DOWN Switch
Lifting one side and next the
other side of the chair will
ease the operation.
Base.
