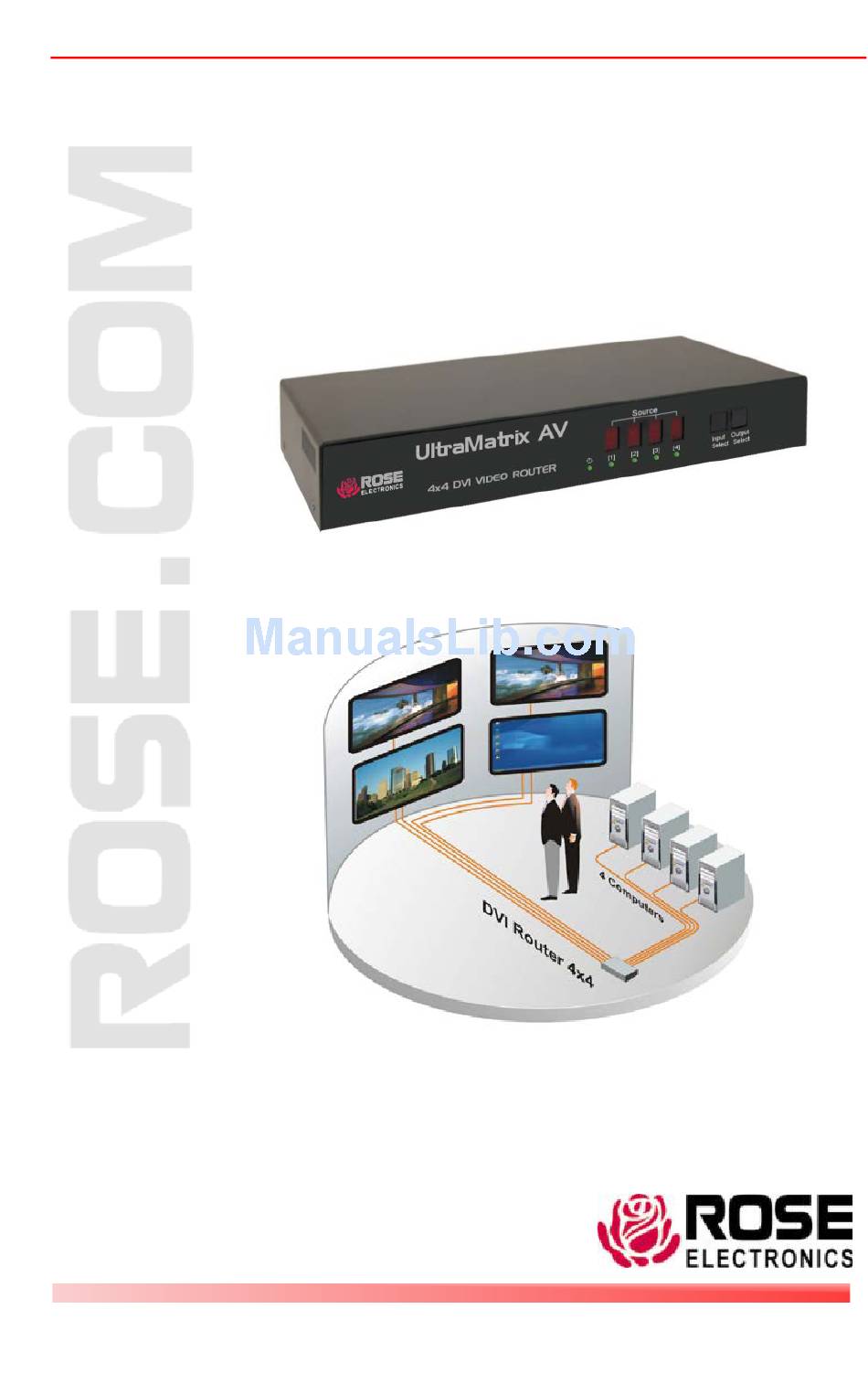

- Page 1 UltraMatrix™ AV DVI 4x4 DVI VIDEO ROUTER INSTALLATION OPERATIONS MANUAL 10707 Stancliff Road 800-333-9343 Houston, Texas 77099 www.rose.com...
- Page 3 UltraMatrix™ AV to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
-
Page 4: Table Of Contents
Page # Disclaimer ...................... 1 System introduction ..................1 Features ..................... 2 Package contents ..................2 Rose Electronics web site................2 About this manual ..................2 Model ......................3 Cables ......................3 Installation and Set-Up .................. 4 Connecting the video sources ..............5 Connecting the video monitors .............. -
Page 5: Disclaimer
Router. The UltraMatrix AV is the result of Rose Electronics commitment to providing state-of-the-art solutions for today’s demanding workplace. The UltraMatrix AV has proven to be a valuable investment for any business, big or small that has a need to easily route DVI video from several sources to multiple displays. -
Page 6: Features
Rose Electronics web site Visit out web site at www.rose.com for additional information on the UltraMatrix AV 4x4 and other products that are designed for data center applications, classroom environments and other applications. About this manual This manual covers the installation and operation of the UltraMatrix AV, 4 x 4 DVI video router. -
Page 7: Model
Right 4 connectors – 4 DVI-I video out connectors DB9F Serial input for serial switching commands Power input jack (+5V power adapter) Cables DVI-I MM – Video In DB9MM – Serial RS232 In Figure 3. Cables ULTRAMATRIX AV INSTALLATION AND OPERATIONS MANUAL... -
Page 8: Installation And Set-Up
Installation and Set-Up Please refer to the safety section first before proceeding with any installation or configuration or the UltraMatrix AV. It is recommended that the following installation procedure be followed. All equipment (UltraMatrix AV, Monitors, and PC’s) should be powered off until all cabling is connected. Once... -
Page 9: Connecting The Video Sources
UltraMatrix AV 4x4’s rear panel. Learn Mode The learn mode feature of the UltraMatrix AV 4x4 enables the unit to learn the specifications of the monitor connected to output port #1, from the PC, or from an Apple monitor. To enter the learn mode, press and hold both the input select and output select buttons for 2 seconds. -
Page 10: Switching Using The Front Panel
Data Bits – 8 Parity – None Stop Bits - 1 Connect to the UltraMatrix AV 4x4 unit and issue the following command : <CR>//MxxIyy<CR> where xx = output port / yy = input port / <CR> = carriage return To switch monitor #2 to computer #4, issue the command <CR>//M02I04<CR>... -
Page 11: Installing Rosecontrol Software
Select the Com Port that the serial cable is connected to on the controlling computer and click on “OK”. The Rose Control switching matrix will adjust to the 4x4 showing 4 inputs and 4 outputs as shown in figure 6. ULTRAMATRIX AV INSTALLATION AND OPERATIONS MANUAL... -
Page 12: Switching Using Rose Control Switching Matrix
To select multiple outputs to connect to a single input, hold the control (Ctrl) key down and click on the individual output numbers needed. Next, click on the input number to route to the selected outputs. ULTRAMATRIX AV INSTALLATION AND OPERATIONS MANUAL... -
Page 13: Recording Macros
5. To play back a macro, simply click on one of the 50 macro buttons. Use the scrollbar to bring any of these into view. 6. The macros are automatically saved in the current configuration file. They are also saved when you select the File/Save Configuration... menu. ULTRAMATRIX AV INSTALLATION AND OPERATIONS MANUAL... - Page 14 To save the macro and session settings, click on “File” and choose “Save Configuration” or “Save Configuration As” and save the session and all macro information to a file on the controlling computer. ULTRAMATRIX AV INSTALLATION AND OPERATIONS MANUAL...
-
Page 15: Safety
SAFETY Safety The UltraMatrix AV 4x4 has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the unit should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 16: Safety And Emc Regulatory Statements
Servicing There are no user-serviceable parts inside these products. Only service- trained personnel must perform any servicing, maintenance, or repair. The user may adjust only items mentioned in this manual. ULTRAMATRIX AV INSTALLATION AND OPERATIONS MANUAL... -
Page 17: Service Information
Technical Support If you are experiencing problems, or need assistance in setting up, configuring or operating your UltraMatrix AV 4x4, consult the appropriate sections of this manual. If, however, you require additional information or assistance, please contact the Rose Electronics Technical Support... -
Page 18: Appendix A - Specifications
(305mm W x 178mm D x 44.5mm H Weight 4.05 lbs (1.84kg) Appendix B – Part Numbers and Cables Part Number Description UMA-04DX04D UltraMatrix AV 4x4 CAB-DVIIMM DVI video cable (male to male) CAB-D9MF DB9 Male to Female (5’ to 20’) ULTRAMATRIX AV INSTALLATION AND OPERATIONS MANUAL... - Page 20 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 Internet: WWW.ROSE.COM...
