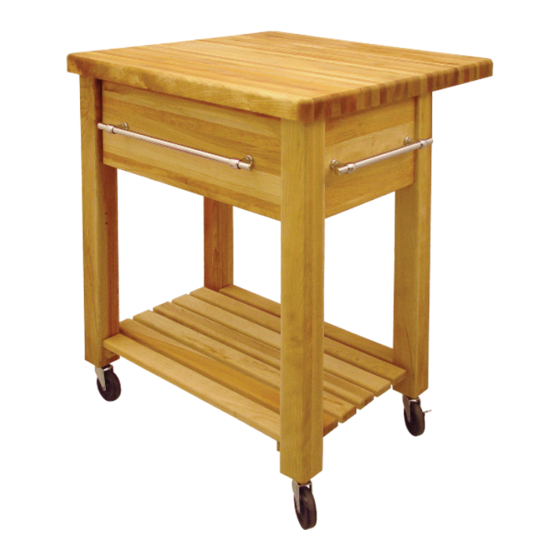

The grand island with drop leaf
Hide thumbs

Advertisement

Quick Links

Download this manual

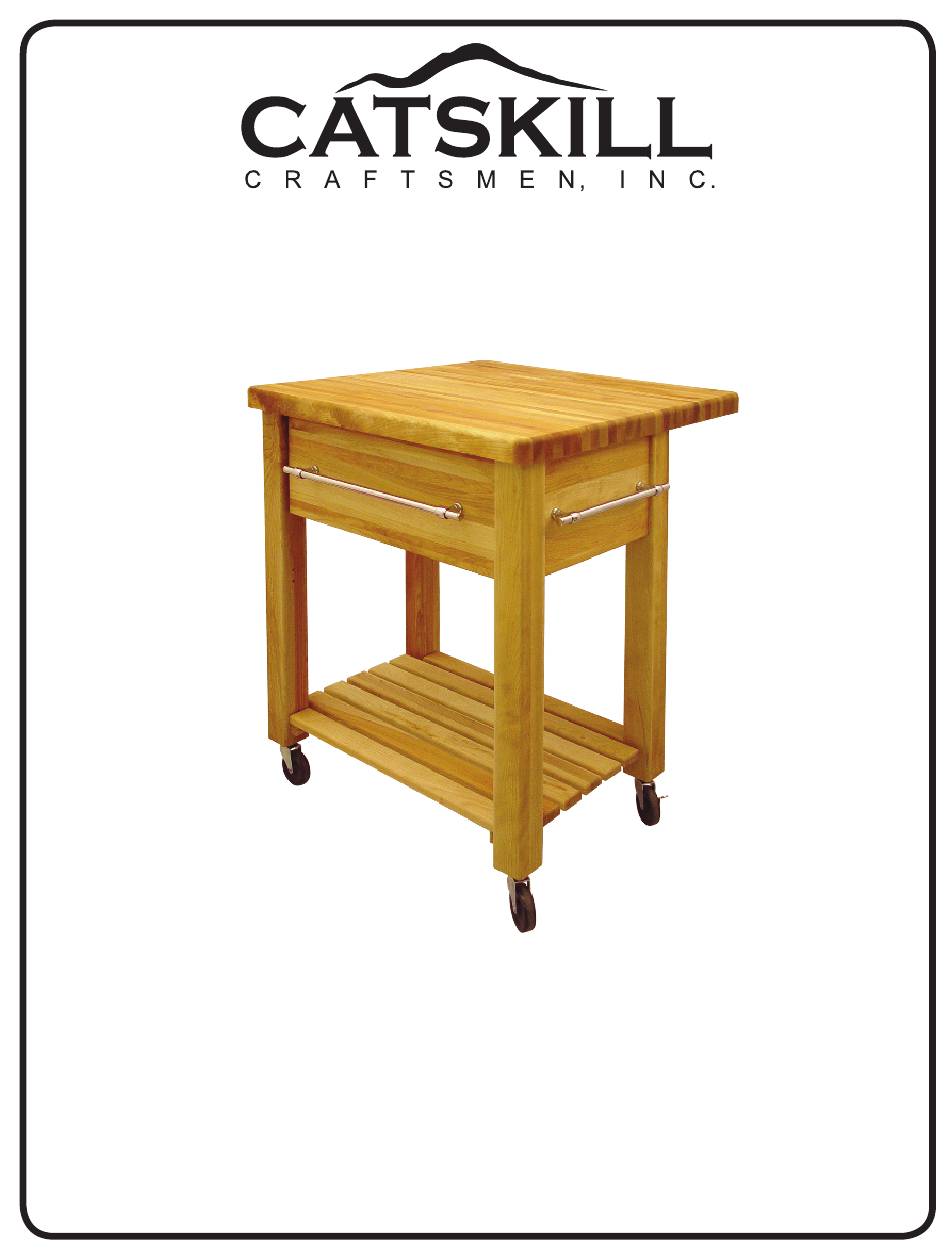

Assembly Instructions
Model 2007
The Grand Island with Drop Leaf
GENERAL:
1. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at
607-652-7321 from 7:30 am - 4:30 pm EST and we'll send you the prepaid part via UPS usually that same
day! You may also email us info@catskillcraftsmen.com.
2. Read the assembly instructions and the enclosed brochure before beginning assembly. Assembly is
easy if you read and follow the instructions step by step. See our website for assembly tips and videos.
3. Tools required: Phillips screwdrivers, medium and small; medium flat blade screwdriver and a hammer.
4. This unit uses the Bastion System; a simple yet rugged compression fastening system. We have a
video online at www.catskillcraftsmen.com illustrating the proper installation of this system.
5. Directions (left/right, front/back) are given as facing the front of an assembled upright unit.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2007 and is the answer not in the manual?

Questions and answers

Related Manuals for CATSKILL 2007

Summary of Contents for CATSKILL 2007

  • Page 1 Assembly Instructions Model 2007 The Grand Island with Drop Leaf GENERAL: 1. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at 607-652-7321 from 7:30 am - 4:30 pm EST and we’ll send you the prepaid part via UPS usually that same day! You may also email us info@catskillcraftsmen.com.
  • Page 2 CABINET PARTS MODEL 2007 Drop Leaf (1) P/N DL-2007 Table Top (1) P/N TT-2007 Glide Support Braces (2) Drawer Front (1) P/N GS-2007 P/N DF-2007 13 x 2 x 3/4 21 15/16 x 9 x 3/4 Drawer Side Left (1)
  • Page 3 7/16” Pan Head #6 Screw (8) Bastion Set Screw (16) Bastion Barrel Nut (16) Hinge (2) Bastion Post (16) Caster Socket (4) 14” FULL EXTENSION GLIDE SET (1) Locking Wheel Caster (2) Non-Locking Wheel Caster (2) P/N GLIDE - 2007...
  • Page 4 TIPS ON HOW THE BASTION FASTENING SYSTEM WORKS 1. The Bastion fastening system consists of a steel post (threaded on one end with a hole through the shaft on the other end); a Barrel Nut (cylindrical barrel-shaped with threaded Illustration Bas. 1 open end &...
  • Page 5 STEP 1 Table top L-Bracket holes ASSEMBLE SIDE PANELS A. Each side panel consists of two (2) legs, one not used (1) top side brace and one (1) Glide Support Towel bar holes in front legs Nut access holes Brace. When assembled, diagonal legs will be the same (i.e.
  • Page 6 STEP 2 ATTACH DRAWER GLIDES TO GLIDE SUPPORT STICKS A. Take the Drawer Glides, extend them to theif fullest. See illustration 4. The Glide has 3 parts. Remove the furthest extended part (1) (smallest) by pushing the black plastic lever down – then pull part out, separating it.
  • Page 7 STEP 3 ATTACH THE BACK BRACE AND BOTTOM SHELF A. The Top Back Brace attaches 1 1/4” down on the legs, allowing clearance for the hinges and drop leaf supports. Attach the back brace with bastions to the right and left side assembly. B.
  • Page 8 STEP 5 ATTACH TABLE TOP A. With the top still inverted, invert the leg assembly onto the top as shown. Secure top to leg assembly with 5/8” #6 screws through L-brackets. STEP 6 ATTACH CASTERS A. With unit still inverted, tap Caster Sockets into holes in leg ends until seated then tap in the Casters.
  • Page 9 STEP 7 ATTACH TOWEL BARS Note: Unit should still be inverted See Illustrations. Screw brass towel bar posts into the top side braces and the drawer front using 1 1/4” #8 screws. Attach pipe holder by slidding supports over posts and secure with tiny set screws using allen wrench provided.

  • Page 10: Step 9 Final Steps

    STEP 8 ASSEMBLE DRAWER A. Attach the drawer back to the drawer sides with 1 1/4” #8 screws. Slide in drawer bottom, best side up. Attach front using the Bastion System. Holes in the posts will be parallel to the long edge of the drawer front.
  • Page 11 Catskill Craftsmen’s factory. For Please send me______# of bottle(s) of the one eight ounce (8 fl. oz.) bottle, which Catskill Craftsmen Butcher Block Oil at $6.95 is sufficient for two applications, simply per bottle. My check or money order is send $6.95 along with the completed...
