Summary of Contents for DMP Electronics 7860

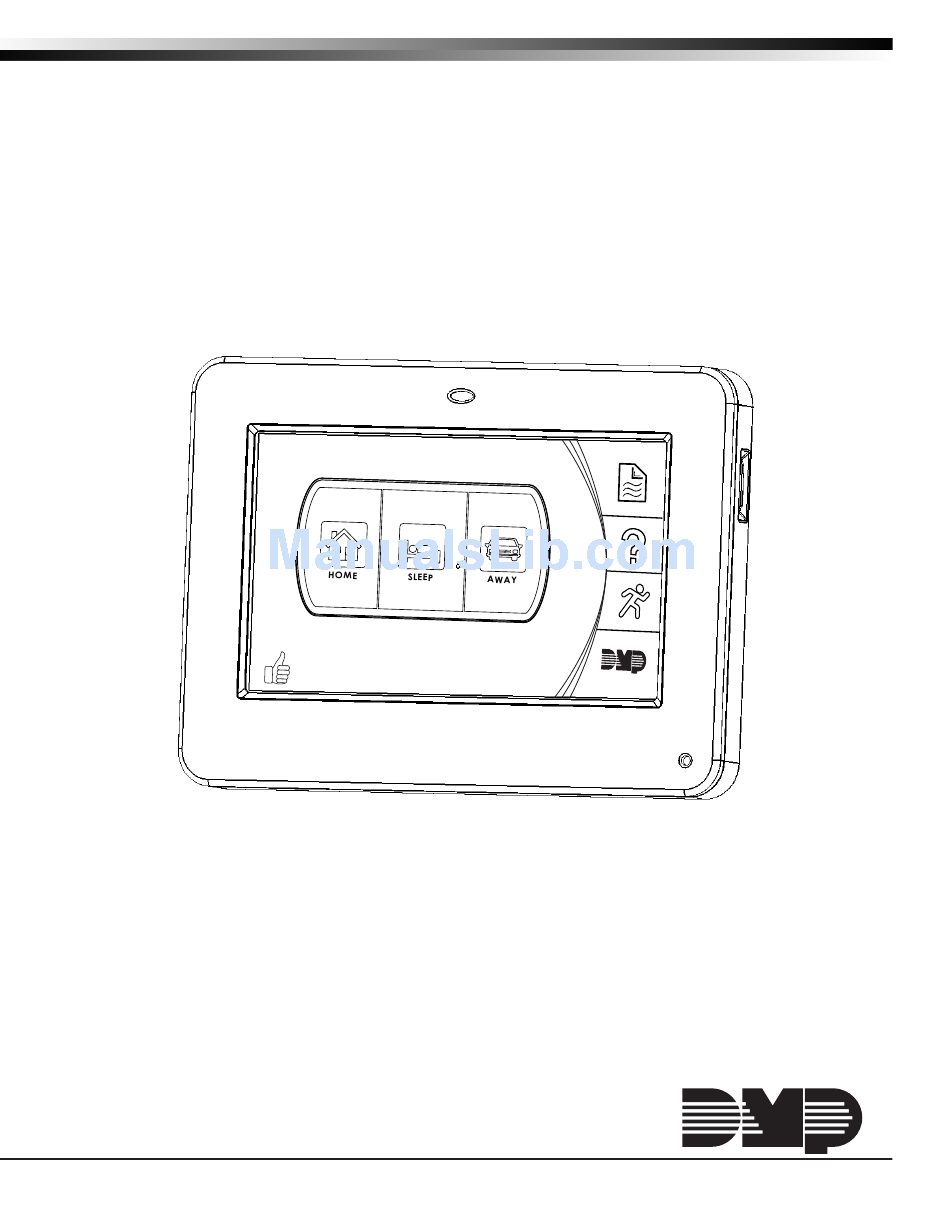

- Page 1 Inst alla tIon GuIde Models 7860, 7863, 7870, 7873 Touch Screen LCD Keypads...
- Page 2 © 2011 Digital Monitoring Products, Inc. Information furnished by DMP is believed to be accurate and reliable. This information is subject to change without notice.
-
Page 3: Dmp Keypad Features
DMP Keypad Features The DMP Graphic Keypads offer flexible features and functionality in a stylish design choice. Each keypad provides: • Custom home screen image • Panic icons • AC Power/Armed LED • Full color touchscreen display • Internal speaker •... -
Page 4: Cleaning The Touchscreen Display
Touchscreen Display The 7800 Series have an integrated LCD with a touchscreen user interface. The display can be set up two different ways. The 7800 Series can be set up to display a custom image for the home screen. See Home Screen section below. -
Page 5: Installing The Keypad
7, yellow to terminal 8, green to terminal 9, and black to panel terminal 10. Use 1k Ohm EOL resistors, DMP Model 311, on keypad zones 1 through 4. The 7860, and 7863 keypads are supplied with a 4-wire harness for panel keypad bus connection. -
Page 6: Card Readers
Surface and Backbox Mounting Holes Keypad Back Zones 1 to 4 7870 / 7873 Keypads Brown/White – Zone 1 White/Brown Red/White – Zone 2 White/Red Orange White – Zone 3 External Reader/Door Strike White/Orange 7873 Keypad Yellow/White – Zone 4 Green/White –... -
Page 7: Door Strike Relay Specifications
Keypad Back Zones 1 to 4 7870 / 7873 Keypads Brown/White External Card – Zone 1 White/Brown Reader Red/White – Zone 2 White/Red Orange White – Zone 3 White/Orange Yellow/White – Zone 4 White/Yellow Green/White – Connect Reader Data 0 All Keypads 1K EOL White –... -
Page 8: Zone 2 Door Contact With Soft-Shunt
Zone 2 Door Contact with Soft-Shunt™ If the door being released by the 7873 keypad is protected, you can provide a programmed shunt time by connecting its contact to Zone 2 (White/Red pair) on the keypad and enabling the Soft-Shunt feature. See ZONE 2 SHUNT later in this document. -
Page 9: Panic Icons
Panic Icons Optional Panic functions allow users to send Panic, Emergency, or Fire reports to the central station. You must enable the Panic function in Installer Options in order to use the Panic Icons. See Programming Keypad Options later in this document. Touch the panic icon to bring up the panic menu. -
Page 10: End-User Options
End-User Options All keypads provide three keypad adjustments the end-user can make through a User Options Menu. The user can also view the keypad model number and address. Press the Menu icon on the keypad display twice. The keypad displays the available options shown below. -
Page 11: Programming Keypad Options
Programming Keypad Options Keypad Options (KPD OPT) Kpd Kpd To program keypad options, press KPD OPT. Opt diag StOp Keypad Address Set the keypad address from 01 to 05 with the XT30, XT50, CUrrent Keypad XR100 and 01 to 16 with the XR500 Series. The default addreSS: 01 address is set at 01. - Page 12 Zone 2 Shunt (7873 only) aCtiVate zOne 2 Select YES to enable the Soft-Shunt™ option on zone 2 ShUnt: nO yeS as described earlier in this document. This zone provides the Soft-Shunt™ for door contacts. This zone must be programmed into the panel. Zone 2 Soft-Shunt Time (7873 only) zOne 2 SOFtShUnt Enter the number of Soft-Shunt seconds to elapse before the...
-
Page 13: Custom Card Definitions
Number of User Code Digits (7863, 7873 only) nO OF USer COde The keypad recognizes user codes from four to ten digits in digitS: length. Touch the display to enter the user code digit length being used by the panel. Default is 5. For an XR100/XR500 Area System, use 4 to 10 digits (typically 5). - Page 14 Site Code Position (7863, 7873 only) Site COde Enter the site code start position in the data string. Touch pOSitiOn: the display to enter a number between 0-255. Default is 1. Site Code Length (7863, 7873 only) Site COde Enter the number of characters the site code contains. Touch Length: the display to enter a number between 1-16.
- Page 15 Choose the Degraded Mode Action required. ChOOSe aCtiOn Select OFF (Relay Always Off) — The relay does not OFF Site any On turn on when any Wiegand string is received. Off does not affect any REX operation. Select SITE (Accept Site Code) — Door access is granted when the Wiegand site code string received matches any site code programmed at SITE CODE ENTRY.
-
Page 16: Exiting The Installer Options
DMP . User’s Guide This User’s Guide covers 7860, 7863, 7870, and 7873 keypads and contains three different sections: Keypad Arming and Disarming, Keypad Door Strike, and Keypad Entry Delay. All of the examples displayed assume that CLOSING CODE is YES in panel programming. -
Page 17: All/Perimeter System Arming And Disarming
Keypad Arming and Disarming Area system Arming and Disarming Touch the lock icon and select the arming/disarming option. The keypad displays ENTER CODE: -. Present your card to the reader. Once validated by the system, all areas assigned to your code arm or disarm automatically and the 7873 keypad Door Strike relay activates. - Page 18 Keypad Door Strike Area and All/Perimeter Door Strike From the Status List, present your card to the reader. Once the system validates the card, the Door Strike relay activates. Home/Away systems only activate the 7873 Door Strike relay when arming and disarming. ABC SECURITY 10:20 AM ABC SECURITY...
-
Page 19: Fcc Information
FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 20: Wiring Specifications For Keypad Bus
FOUR INTERNAL WIEGAND INTERNAL STANDBY CURRENT ZONES PROX INPUT DOOR CURRENT READER STRIKE RELAY 7860 184mA 211mA 7863 184mA 211mA 7870 184mA + 1.6mA 211mA + 2mA per active zone per active zone 7873 184mA + 1.6mA 211mA + 2mA... -
Page 21: Specifications
Specifications Operating Voltage 12 VDC Dimensions 7” W x 5.25” H x 0.5” D Compatibility All keypads are compatible with all DMP panels. Listings and Approvals FCC Part 15 RFID Reader FCC ID: CCKPC0131 Industry Canada ID: 5251A-PC0131 Underwriters Laboratories (UL) Listed ANSI/UL 365 Police Connected Burglar ANSI/UL 609... - Page 22 LT-1162 1.01 11355...
