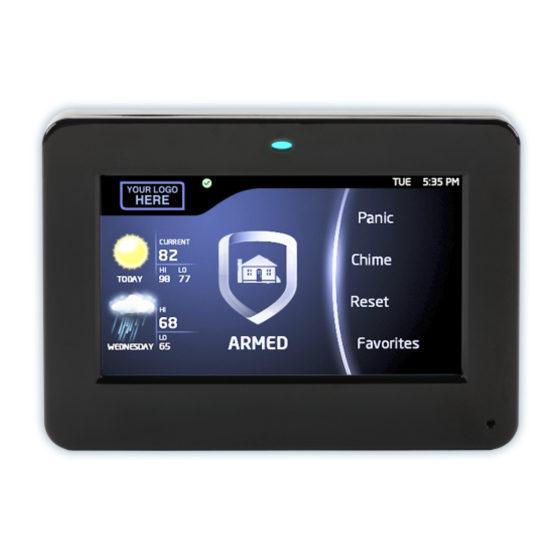

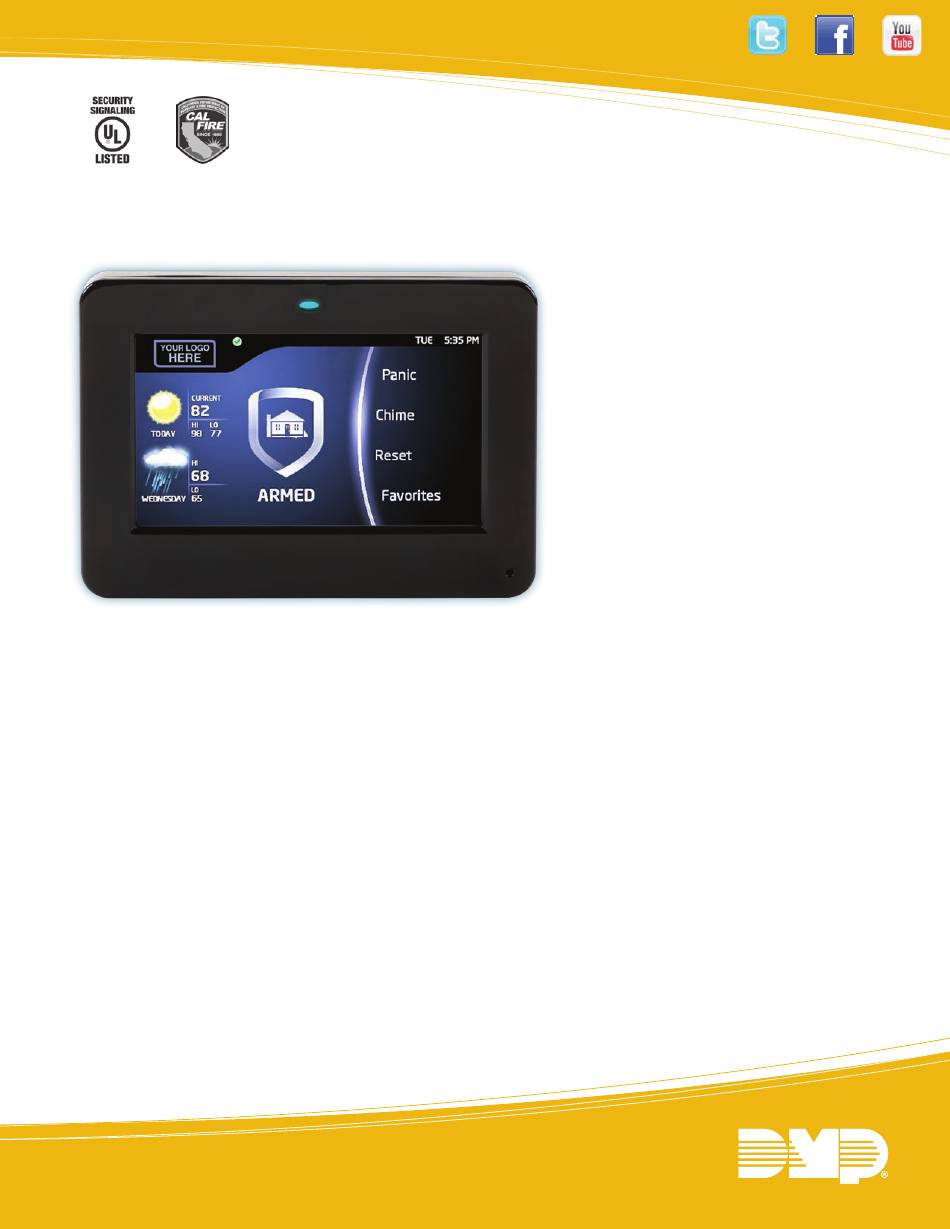

Network Connected Panel Display
Graphic Touchscreen Keypads
7872/7873

sysTem FeaTures

• Slim profile in stylish gloss black or white finish
• 5 inch, full-color display
• Easy-to-use icon menus
• Wired keypad - 4 wire bus
• Interactive shield for quick arming status
• Wiegand input (7873)
• Supports 4 zones
• Keypad turns Red in alarm conditions
• AC power and Armed LED
• Suitable for access, burglary, and household fire
applications
Graphic Touchscreen
redefines elegance
in features and
affordability
Introducing a touchscreen keypad that will fit
nicely into any residential or commercial
application.
• Integrated proximity reader
• Brand with your dealer logo
• Weather forecast
• Responsive resistive touchscreen
• Manage schedules on the XR Series
• Manage user codes
• Add and remove Z-Wave® devices
• Distinct fire, burglary, zone monitor, and prewarn tones
• View system events/user activity through keypad display
• Supports "Is this a false alarm?" and Cancel/Verify™ features
• Built-in diagnostics for ease of service
• Simple harness connection to 4-wire keypad bus
• Connect devices directly to keypad zones
• Displays time of day, armed zones, and armed areas
• Unique silence feature allows the user to silence alarm bells
and still keep the system armed
• Control Z-Wave Devices via the 738Z module on the XT™ and
XR150 | XR350 | XR550 Series Panels
