Disassembly
6. Remove screws
7. Unlock the processor by raising lever
8. Lift the CPU

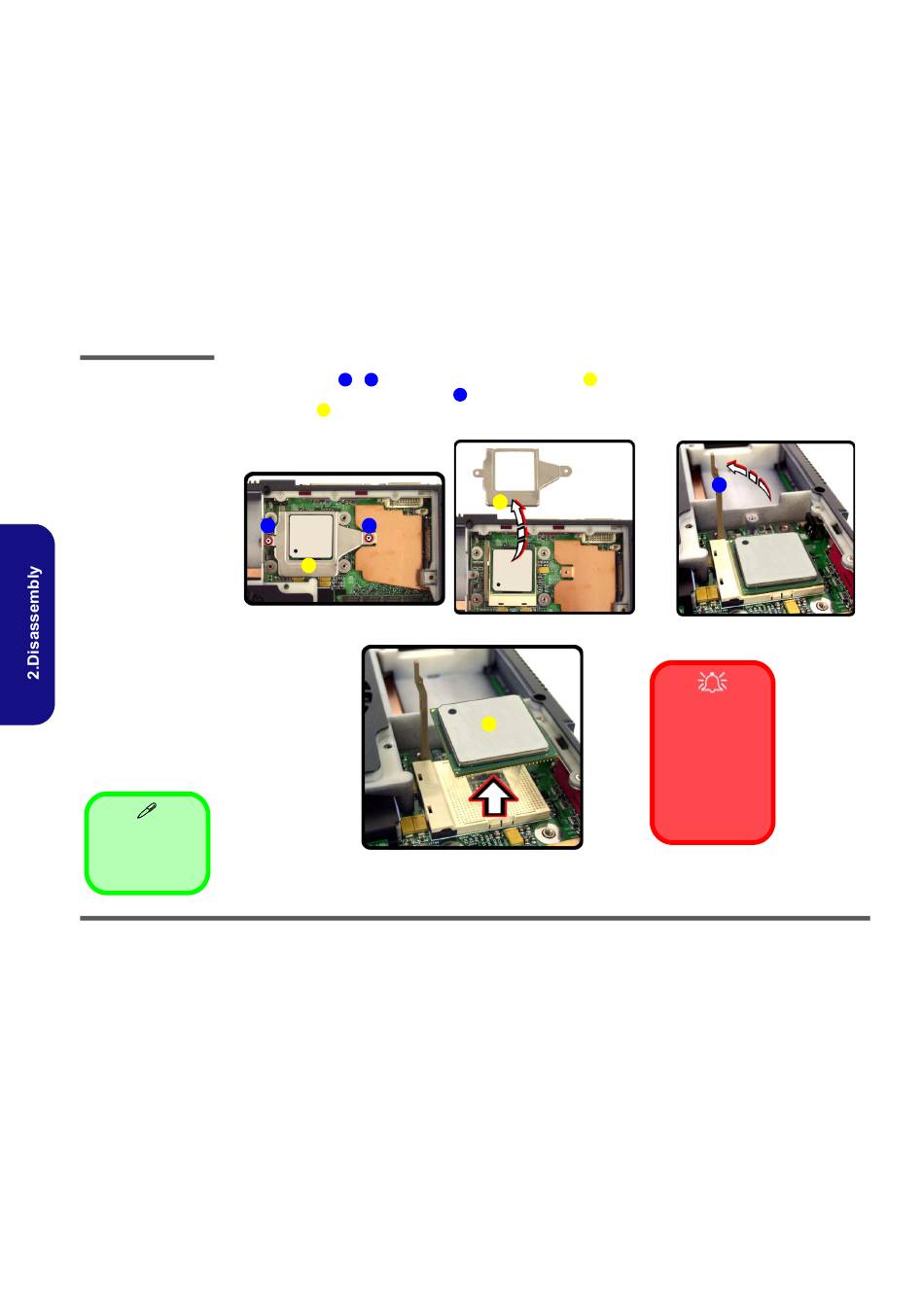

Figure 6
a.
Processor Removal
(cont'd)
a. Remove the screws and
lift the CPU bracket off
the computer.
b. Raise the lever to unlock
the CPU.
c. Lift the CPU off the sock-
et.
3. CPU Bracket
5. CPU
• 2 Screws
2 - 10 Removing the Processor
All manuals and user guides at all-guides.com
-
(Figure 6a) and lift the CPU bracket
1 2
(Figure 6c) off the computer.
5
1 2
3
c.
off the computer.
3
(Figure 6b).
4
3
5
b.
4
Caution
The heat sink, and
CPU area in general,
contains parts which
are subject to high
temperatures. Allow
the area time to cool
before removing these
parts.
