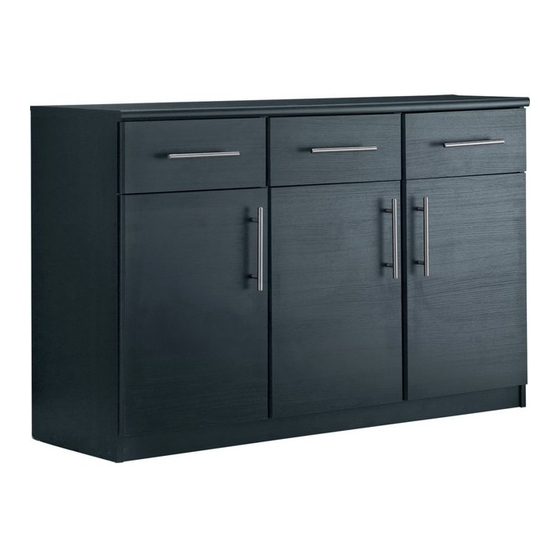

Anderson - 3+3 Sideboard

Assembly Instructions - Important: Retain these instructions

In order to prevent overturning, this product must be

used with the 2 wall attachment devices provided

Dimensions

Width - 119.5cm

Depth - 40cm

Height - 77cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, please visit www.argos-support.co.uk

or email: Help@ClickSpares.co.uk (quoting your original order number)

Alternatively, call the Spares Helpline on: 0330 016 1114

For any other queries please contact the Customer Helpline on: 0345 640 2020

for future reference

WARNING!

More help is available throughout this

booklet by scanning in the QR codes

or typing in the links

609/6465

609/6458

MADE IN

BRITAIN

Issue 20 - 30/07/19

Need help?

Do you have a question about the Anderson 609/6465 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Home Anderson 609/6465

Page 1 Anderson - 3+3 Sideboard Assembly Instructions - Important: Retain these instructions 609/6465 for future reference 609/6458 WARNING! In order to prevent overturning, this product must be used with the 2 wall attachment devices provided Dimensions More help is available throughout this Width - 119.5cm booklet by scanning in the QR codes Depth - 40cm...
Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Parts of the assembly will be • We do not approximately 42kgs. easier with 2 people. recommend the Please lift with care. use of power •...
Page 3 Components - Panels Please check you have all the panels listed below (D2266A) (119.3 x 39.6cm) Left Side Right Side (D2182A) (D2183A) (74.7 x 37.5cm) (74.7 x 37.5cm) Base (D2268A) (115.4 x 37.4cm) Divider (D2260A) (15 x 37.4cm) Large Shelf Small Shelf (D2261A) (D2271A)
Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Wooden dowel Metal dowel x 18 40mm Screw (F22) (F901)
Page 5 Assembly Instructions Drawer Assembly Step 1 www.youtube.com/watch?v=3fYL5zB6ZYQ Prepare the drawer fronts Screw 2 metal dowels into the holes shown on the back of each drawer front Note: Tighten metal dowels up fully against the panels. Step 2 Prepare the drawer sides Insert a small locking cam nut...
Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
Page 7 Assembly Instructions Fixing Bottom Mounted Runners Step 7 https://www.youtube.com/watch?v=Z6lGMy19h7Q Fit runners to the Runners must be drawers pushed up against the drawer front Turn the drawers over and fit the DL runner to the bottom edge of the left drawer side as shown, making sure that it is pushed up against the back of the...
Page 8 Assembly Instructions Step 9 Prepare the right side Tap a wooden dowel into the right side Screw 3 metal dowels into the right side Finished Insert a large locking front edge cam nut into the right side Fit a CR runner screw the right side The 1st screw...
Page 9 Assembly Instructions Step 11 Join the right side and base Push the base onto the right side Finished front edge Use a screwdriver to tighten the 2 large p l a i n c locking cam nuts h i p fitted to the base a r d s u r...
Page 10 Assembly Instructions Step 14 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 3 large locking cam nuts fitted to the base plinth Step 15 Prepare the top Screw 6 metal dowels into the top Fit the 2 brackets from the overbalance...
Page 11 Assembly Instructions Step 16 Prepare the divider Insert 2 large locking cam nuts into the divider Finished front edge Note: The 2 holes for the large locking cam nuts may be drilled in either surface of the divider Fit a CR runner screw to this surface of the divider...
Page 12 Assembly Instructions Step 17 Fit the divider Push the divider onto the top Finished front edge Use a screwdriver to tighten the 2 large locking cam nuts fitted to the divider Note: The 2 large locking cam nuts may be on either surface of the divider.
Page 13 Assembly Instructions Step 19 Fit the upright Push the upright onto the top Use a screwdriver to tighten the 2 large locking cam nuts fitted to the upright Finished front edge Step 20 Fit the top Push the top onto the side panels Use a screwdriver to tighten the 2 large...
Page 14 Assembly Instructions Step 21 Squaring up a Chest and tting the Back Panel www.youtube.com/watch?v=FeaI6541z7o Fit back panel Square up the unit by The measurement from top corner X to bottom corner X must be making sure that equal to the measurement from top corner Y to bottom corner Y measurement x to x equals y to y.
Page 15 Assembly Instructions Step 22 WARNING! Secure the unit to a In order to prevent overturning wall this product must be used with the Before fitting the unit 2 wall attachment devices provided to a wall, use a spirit level to check the top of the unit is level, front-to-back and side-to-side in the 3...
Page 16 A Guide to Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
Page 17 Assembly Instructions Step 23 Fit the shelf Insert 8 shelf studs the required height for the large shelf the small shelf Lower the large shelf and small shelf down onto the shelf studs Step 24 Hinge Fixing and Door Adjustment www.youtube.com/watch?v=wIMhUHeLBtg Prepare the doors Push fit 2 hinges...
Page 18 Assembly Instructions Step 25 IMPORTANT You will need to drill the doors to Drill the handle holes in the door suit the handles supplied Important: Please follow You will need to drill 2 doors as these instructions shown in this diagram carefully.
Page 19 Assembly Instructions Step 26 Hinge Fixing and Door Adjustment www.youtube.com/watch?v=wIMhUHeLBtg Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinge. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the...
Page 20 Assembly Instructions Step 27 Hinge Fixing and Door Adjustment www.youtube.com/watch?v=wIMhUHeLBtg Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown.
Page 21 Assembly Instructions Step 28 Fixing Bottom Mounted Runners https://www.youtube.com/watch?v=Z6lGMy19h7Q Fit the drawers Slide the wheels of the runners fitted to the drawers, over the wheels of the runners fitted to the side panels and push the drawers into position. Side panel Drawer...
Page 22 Assembly Instructions Step 29 Assembly is complete Please remove any blue protective film from panel edges and clear protective film from panel surfaces...
