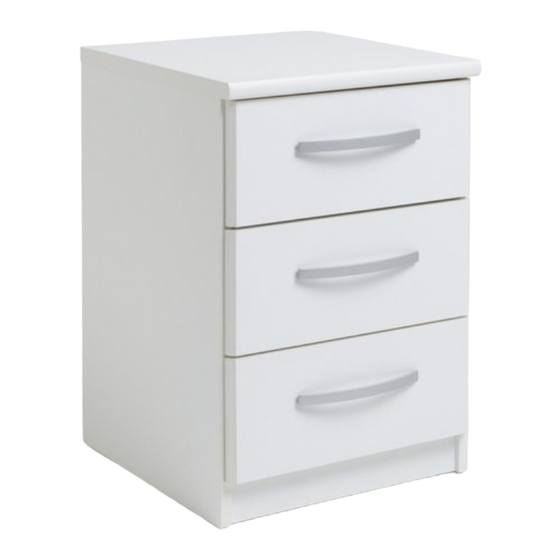

New Hallingford - 3 Drawer Bedside
Assembly Instructions - Important: Retain these instructions
In order to prevent overturning, this product must be
used with the wall attachment device provided
Dimensions
Width - 37.5cm
Depth - 40cm
Height - 58cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0330 016 1114
For any other queries please contact the Customer Helpline on: 0345 640 2020
for future reference
WARNING!
More help is available throughout this
booklet by scanning in the QR codes
or typing in the links
652/9482
618/4999
673/1902
620/9379
673/2176
601/6737
677/5449
618/6959
678/3699
616/9749
887/6449
916/0109
MADE IN
BRITAIN
Issue 15 - 13/11/19
Advertisement
Related Manuals for Argos Home New Hallingford 652/9482
Summary of Contents for Argos Home New Hallingford 652/9482
- Page 1 New Hallingford - 3 Drawer Bedside Assembly Instructions - Important: Retain these instructions 652/9482 for future reference 618/4999 673/1902 620/9379 673/2176 601/6737 677/5449 618/6959 678/3699 616/9749 887/6449 916/0109 WARNING! In order to prevent overturning, this product must be used with the wall attachment device provided Dimensions More help is available throughout this Width - 37.5cm...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Parts of the assembly will be • We do not approximately 14kgs. easier with 2 people. recommend the Please lift with care. use of power •... - Page 3 Components - Panels Please check you have all the panels listed below 1 Left Side 2 Right Side (D2307A) (D2308A) (D2306A) (55.6 x 37.2cm) (55.6 x 37.2cm) (37.5 x 39.6cm) Rail Drawer Front (D2310A) (D2309A) (34.1 x 6cm) (36.2 x 16.2cm) Left Drawer Side Right Drawer Side Drawer Back...
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Small locking cam Wooden dowel Metal dowel x 12 (F22)
- Page 5 Assembly Instructions Step 1 Drawer Assembly www.youtube.com/watch?v=3fYL5zB6ZYQ Prepare the 3 drawer fronts Screw 2 metal dowels into the holes shown on the back of each drawer front Note: Tighten metal dowels up fully against the panels. Step 2 Prepare the drawer sides Insert a small locking cam nut...
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Fixing Bottom Mounter Runners Step 8 https://www.youtube.com/watch?v=Z6lGMy19h7Q Fit runners to the drawers Runners must be pushed up against Turn the 3 drawer the drawer front assemblies over. Fit runner , marked with ‘DR’, to the bottom edge of the right drawer side , as shown, making sure that it is...
- Page 8 Assembly Instructions Fixing Bottom Mounter Runners Step 10 https://www.youtube.com/watch?v=Z6lGMy19h7Q Prepare the left side Fit 3 CL runners to the left side screw The 1st screw uses the 1st hole in from the front of the runner. The 2nd and 3rd screws Finished use the holes that line front edge...
- Page 9 Assembly Instructions Step 11 Prepare the right side Fit 3 CR runners to the right side The 1st screw uses Finished the 1st hole in from the front edge front of the runner. The 2nd and 3rd screws screw use the holes that line up with the other panel holes.
- Page 10 Assembly Instructions Step 13 Fit the left side Push the left side onto the 2 rails Use a screwdriver to tighten the 2 large locking cam nuts fitted to the rails Step 14 Prepare the top Screw 2 metal dowels into the top Fit the bracket from the overbalance protector kit...
- Page 11 Assembly Instructions Step 16 Squaring up a Chest and tting the Back Panel www.youtube.com/watch?v=FeaI6541z7o Fit the back The measurement from top corner X to bottom corner X must be Square up the unit by equal to the measurement from top corner Y to bottom corner Y making sure that measurement x to x equals y to y.
- Page 12 Assembly Instructions Step 18 WARNING! Secure the unit to a In order to prevent overturning wall this product must be used with the Before fitting the unit wall attachment device provided to a wall, use a spirit level to check the top of the unit is level, front-to-back and side-to-side in the 3...
-
Page 13: A Guide To Wall Mounting & Fixings
A Guide to Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit. - Page 14 Assembly Instructions Fixing Bottom Mounter Runners Step 19 https://www.youtube.com/watch?v=Z6lGMy19h7Q Fit the drawers Slide the wheels of the runners fitted to the drawers, over the wheels of the runners fitted to the side panels and push the drawers into position. Side panel Drawer Assembly is complete...
- Page 16 ALR2976...
