Argos Home hygena Matrix Round Glass Lamp Table Assembly Instructions

Download this manual

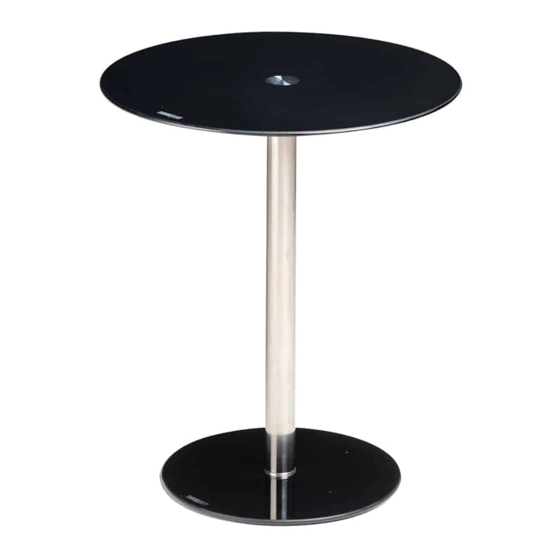

Glass Round Lamp Table

Assembly Instructions -

Dimensions

Width - 40cm

Depth - 40cm

Height - 45.6cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Please keep for future reference

609/1415

issue 1 4/16/10

Need help?

Do you have a question about the hygena Matrix Round Glass Lamp Table and is the answer not in the manual?

Page 1 Glass Round Lamp Table 609/1415 Assembly Instructions - Please keep for future reference Dimensions Width - 40cm Depth - 40cm Height - 45.6cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 issue 1 4/16/10...
Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Check you have all the Do not stand on the panels, this We do not components and tools listed on could cause damage. recommend the use pages 2 and 3.
Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline:08456 400800 Please check you have all the panels listed below T op glass x 1 (40 x 40cm) Base glass x 1 (35 x 35cm) Tube x 1 (5 x 42cm) Components - Fittings Please check you have all the fittings listed below...
Page 4 Assembly Instructions Step 1 Step 1 Fitting the tube Note: Assemble on a soft level surface or on the original packing material to avoid damaging the unit or your floor. Stick the Glass pads onto the Base glass Screw in Two end threaded bolt onto Base glass...
Page 5 Assembly Instructions Step 2 Fitting the top Note: It would be useful to ask someone to help you at this stage. Screw in Two end threaded bolt onto Top glass Screw in Top glass onto the unit. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline : 08456 400800...

609/1415
