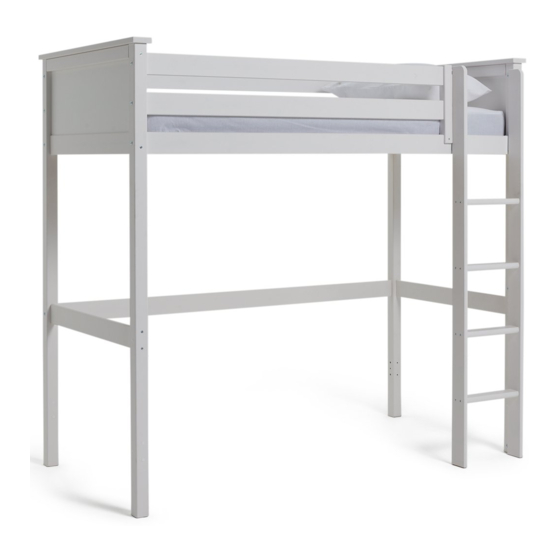

Highsleeper - Brooklyn
Assembly Instructions
8545639
- Please keep for future reference
Dimensions
Length - 200,4cm
Depth - 106cm
Height - 184,7cm
Weight - 47kg
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
0045 7668 8055 or e-mail: order@fl exa.dk
Issue 1 - 22/06/18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Home Highsleeper Brooklyn 8545639
Summary of Contents for Argos Home Highsleeper Brooklyn 8545639
- Page 1 Highsleeper - Brooklyn Assembly Instructions 8545639 - Please keep for future reference Dimensions Length - 200,4cm Depth - 106cm Height - 184,7cm Weight - 47kg Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0045 7668 8055 or e-mail: order@fl...
-
Page 2: Maintenance Instructions
Safety and Care Advice Important – Please read these instructions fully before starting assembly • We do not • Check you have all the • Do not stand or put weight on recommend the components and tools listed on the product, this could cause use of power pages 2 and 3. -
Page 3: Components - Parts
If you have damaged or missing components, Components - Parts call the Customer Helpline: 0045 7668 8055 Please check you have all the parts listed below Short post x1 Tread x4 Endrail x2 (31,8x6,5x2,6cm) (86,5x8,9x2,0cm) (35,3x4,3x4,3cm) No. 12-02603182-65 No. 12-02008653-65 No. - Page 4 Components - Parts If you have damaged or missing components, call the Customer Helpline: 0045 7668 8055 Please check you have all the parts listed below Bedside x2 Safety rail x3 Safety rail x2 (186.7x8.9x2.0cm) (186.7x8.9x2.0cm) (146,6x8.9x2.0cm) No. 1305-186710-65 No. 12-02018672-65 No.
- Page 5 Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. No. 3913-06100 No. 3922-06014 No.
- Page 6 Assembly Instructions Step 1 Insert the dowels into the holes in bedsides safety rails Ø10 and endrails Ø8 Insert Ø8 dowels into the holes in endrail It may be necessary to tap the dowels in very gently with a small hammer.
- Page 7 Assembly Instructions Step 4 Attach leg to endrails . At the same time attach endrail between the legs Insert assembly screws and fasten with the allen key. Don’t overtighten. 15 Holes up! Step 5 Attach bedside safety rails to the bed by placing the dowels into the holes in legs Push 2 barrel nuts...
- Page 8 Assembly Instructions Step 6 Attach the second bedside to the bed by placing the dowels into the holes in legs as in the previous step. Push 2 barrel nuts into the small holes in bedside . Push 1 connecting bolt through legs to meet the barrel nuts and fasten with the allen...
- Page 9 Assembly Instructions Step 8 Attach the treads the ladder sides using the screws Attach brackets to the ladder sides using the screws Attach angles to the ladder sides using the screws Step 9 Place the assembled ladder into the bed. Fasten brackets the bedside using the...
- Page 10 Assembly Instructions Step 10 Place two slats in the ends of the bed, against the legs. Fasten with four chipboard screws Place one slat 798 mm 904 mm the bed. Follow the measurements. Push the bedsides together whilst attaching middle slat to the bed with two chipboard screws...
- Page 11 Assembly Instructions Step 12 Attach wall mount brackets to legs with chipboard screws Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: 0045 7668 8055 E-mail: order@fl exa.dk Ref.no. 44-01622-65 Stand: 220618 Page 11 (80-23501-65)
