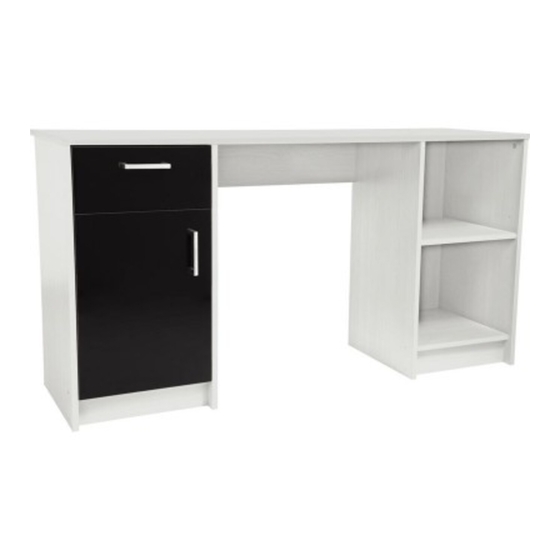

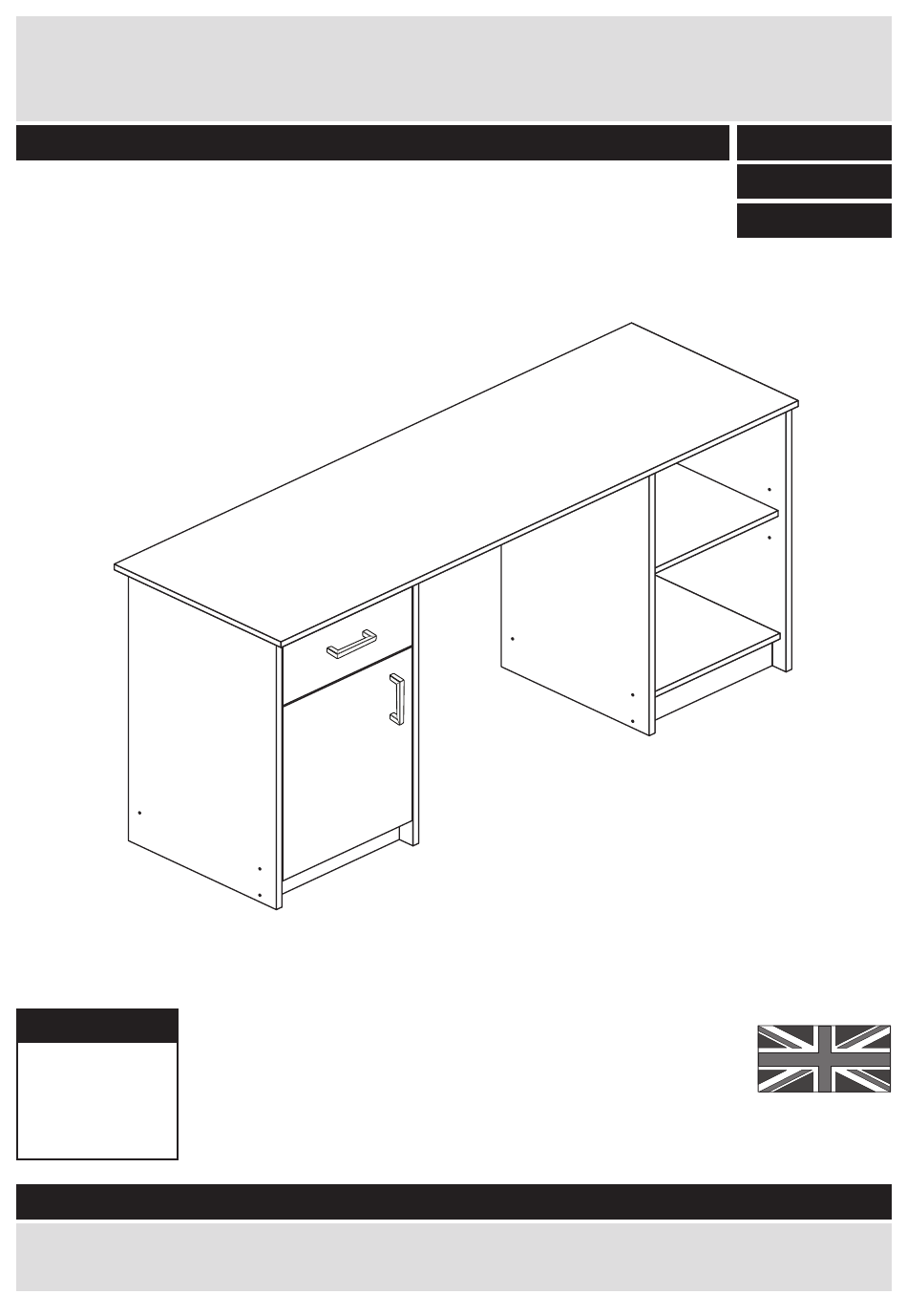

Caspian - Double Pedestal Desk Mk2
Assembly Instructions -
Dimensions
Width - 138cm
Depth - 44.5cm
Height - 72cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
621/3561
621/3554
621/3891
MADE IN
BRITAIN
Issue 2 - 13/11/12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Home Caspian 621/3561
Summary of Contents for Argos Home Caspian 621/3561
- Page 1 Caspian - Double Pedestal Desk Mk2 Assembly Instructions - 621/3561 Please keep for future reference 621/3554 621/3891 Dimensions Width - 138cm Depth - 44.5cm MADE IN Height - 72cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 13/11/12...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 31kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Base (D1201A) (349 x 378mm) Drawer Left Side Drawer Right Side (D1203A) (D1204A) (706 x 394mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the drawer front and wrap Screw 2 metal dowels into the holes shown on the back of the drawer front Note: Tighten metal dowels up fully against...
- Page 6 Assembly Instructions Step 3 Attach handle Attach the handle the drawer front using 2 screws Step 4 Prepare the drawer left side Place a runner Finished the drawer left side front edge Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Finished...
- Page 7 Assembly Instructions Step 5 IMPORTANT Carefully choose which 2 holes you need to drill Drill 2 holes in the drawer right side 2.5mm Important: Lay the drawer right side then Only drill the 2 holes down onto a smooth shown circled and surface.
-
Page 8: Right Side
Assembly Instructions Step 6 Prepare the drawer right side Place a runner the drawer right side Slide back the top of the Finished front edge runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and use the 2nd hole from the back to fit the 2nd screw... - Page 9 Assembly Instructions Step 7 Join the drawer right side to a base Position a base against the drawer right side as shown and secure with 2 screws p l a c h i s u r f a c Finished front edge Finished front edge...
- Page 10 Assembly Instructions Step 10 Fit the drawer left side Push the drawer left side onto the assembly and secure with 3 screws Finished front edge Step 11 IMPORTANT Drill 2 holes in the cupboard left side Carefully choose which 2 holes you need to drill Lay the cupboard left Finished side...
- Page 11 Assembly Instructions Step 12 Prepare the cupboard left side Finished front edge Insert 2 large locking nuts into the cupboard left side Note: The arrow on the locking nut must point towards the hole in the edge of the panel. Step 13 Prepare the cupboard right side...
- Page 12 Assembly Instructions Step 15 Prepare a plinth Plain chipboard surface Tap 2 wooden dowels into a plinth 10mm shown. Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels. Step 16 Fit the plinth Push the plinth onto...
- Page 13 Assembly Instructions Step 18 Fit the modesty Fit the modesty between the cupboard left side and drawer right side using 4 screws Drawer runners Finished bottom edge Using 2 people, carefully stand the unit up. Warning: The unit is heavy. Lift with care.
- Page 14 Assembly Instructions Step 20 Fit the top Lower the top onto the assembly, making sure that it is pushed down flush with the top edge of the 4 side panels. Use a screwdriver to tighten the 8 large locking nuts fitted to the side panels.
- Page 15 Assembly Instructions Step 22 Fit the shelf studs For each of the 2 shelves , insert 4 shelf studs at the required height. Make sure that the plastic sleeve is fully pushed onto the shelf stud. Step 23 Fit the shelves Lower the 2 shelves down onto the shelf studs...
- Page 16 Assembly Instructions Step 24 Prepare the door Push fit the 2 hinges into the door Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the edge of the door.
- Page 17 Assembly Instructions Step 26 Fit the door Note: The easiest way to attach the door is to fit the top hinge first, then align and fit the other hinge. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 18 Assembly Instructions Step 27 Adjust the door if needed Before adjusting the door, use a spirit level to check the top (or base) of the unit is level, front- to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any...
- Page 19 Assembly Instructions Step 28 Fit the door handle Attach a handle the door using 2 screws Step 29 Fit the drawer Slide both the runners forward and locate the drawer wrap between them, lining up the holes in the drawer wrap with the 2nd 'threaded' holes in the runners Working from the inside...
- Page 20 Assembly Instructions Step 30 Assembly is complete Warning: The unit is heavy. Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2693...
