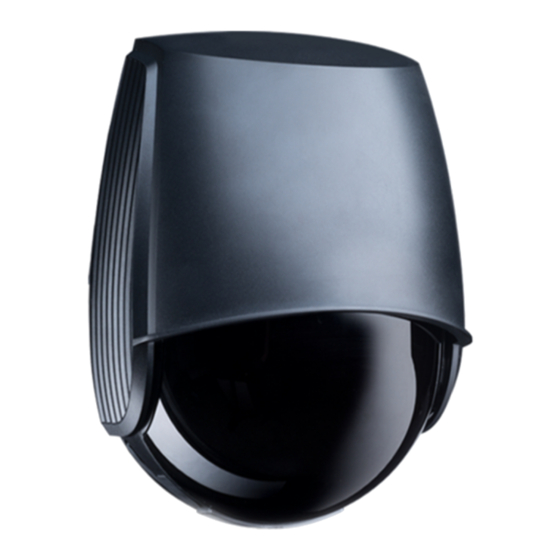

LZR
-WIDESCAN
®
OPENING, PRESENCE, & SAFETY SENSOR FOR INDUSTRIAL DOORS
WHAT YOU'LL NEED
12:00
12:00
Welcome
Welcome
Hello
Hello
John
John
Doe
Doe
What would you like to
What would you like to
do?
do?
Search for sensor
Search for sensor
Go offline
Go offline
Go offline
Go offline
LZR-WIDESCAN mobile app
(not required, but highly recommended)
75.0048.01 LZR-WIDESCAN Programming 20210726
Visit website for
available languages of
this document.
BEA Remote Control
PROGRAMMING
DOCUMENTS:
Programming Guide (75.0048)
LZR-WIDESCAN Menu Tree (78.8004)
highly recommended when
programming via LCD menu
Download the
installation app!
Page 1 of 30

Advertisement

Table of Contents
loading

Summary of Contents for Halma BEA LZR-WIDESCAN

  • Page 1 -WIDESCAN ® OPENING, PRESENCE, & SAFETY SENSOR FOR INDUSTRIAL DOORS PROGRAMMING Visit website for Download the available languages of installation app! this document. WHAT YOU'LL NEED 12:00 12:00 Welcome Welcome Hello Hello John John DOCUMENTS: What would you like to What would you like to Programming Guide (75.0048) LZR-WIDESCAN Menu Tree (78.8004)
  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS Technology LASER scanner, time-of-flight measurement (7 laser curtains) Detection mode Motion, presence, height, and speed Width: 1.2 × mounting height Max. detection field adjustable, depending on user settings Depth: 1.2 × mounting height Thickness of first curtain ⁄ inch Typ.
  • Page 3 SAFETY The device emits invisible (IR) and visible laser radiations that can be activated during the installation process to adjust precisely the position of the detection field. CLASS 1 LASER PRODUCT CLASS 2 LASER RADIATION DURING INSTALLATION The visible laser beams are inactive during normal functioning. DO NOT STARE INTO BEAM Do not stare into visible laser beams.
  • Page 4 DESCRIPTION main connector protection film laser window USB cap LED display cover cover lock cable passage LCD screen 10. keypad 11. tilt angle adjustment screw (1) 12. parallel angle adjustment screw (2) 13. lateral angle lock screw (1) 14. mounting bracket 75.0048.01 LZR-WIDESCAN Programming 20210726 Page 4 of 30...
  • Page 5: Basic Principles

    BASIC PRINCIPLES There are 3 main functions that create 3 overlapping detection fields, each with certain detection characteristics: SENSOR DETECTS IF: - motion in motion field - certain object type - certain direction SENSOR DETECTS IF: - presence in presence field - certain object type SENSOR DETECTS IF: - presence in safety field...
  • Page 6: Before Getting Started

    PROGRAMMING BEA offers 3 ways to set up and program the LZR-WIDESCAN: LCD, remote control, and mobile app. Each step in the programming instructions will illustrate all 3 options. BEA highly recommends downloading the LZR-WIDESCAN mobile app. The mobile app is an incredibly useful tool for mechanical installation verification and setup/ programming.
  • Page 7 TEACH-IN: INSTALL VIA MOBILE APP (preferred) 12:00 12:00 12:00 12:00 Teach-in Teach-in Teach-in Teach-in WS-1234567 WS-1234567 1. Verify settings from the physical installation, and then follow the prompt for the teach-in process to begin. 2. Clear the area and press "Start teach-in process" at the bottom of the screen. Please clear the highlighted zone.
  • Page 8 Outputs WS-1234567 ASSIGN OUTPUT FUNCTIONS, OUTPUT LOGIC, AND HOLD TIMES VIA MOBILE APP (preferred) 12:00 12:00 12:00 Outputs Outputs Outputs WS-1234567 WS-1234567 WS-1234567 1. Once the teach-in is complete, review the three Outputs settings and make adjustments as necessary. To make an adjustment, simply click on the edit icon beside the current setting. 12:00 12:00 12:00...
  • Page 9 ASSIGN OUTPUT FUNCTIONS, OUTPUT LOGIC, AND HOLD TIMES (cont.) VIA LCD (not preferred) To change a setting, see page 27 for How To Use the LCD, and use the following menu paths. Main menu In-Out Out1 Funct: Mot Pull Pres / Mot Pull Safe / Mot+ & Height / Mot+ & Speed / Pull Cord / Safety / Presence / Mot Pull / Motion / Not Used Out2 Funct: Mot Pull Pres / Mot Pull Safe / Mot+ &...
  • Page 10 PROGRAM FIELD SETTINGS The WIDESCAN has three outputs that can be configured to motion, presence, and/or safety functions depending on your application. See below for an explanation of each field and how they work, and associated LED colors. See pages 11 – 18 for how to make adjustments to each field using the mobile app, remote control, and LCD menu. The motion field detects objects moving through the programmed field.
  • Page 11: Settings Explained

    PROGRAM FIELD SETTINGS MOTION SETTINGS EXPLAINED FIELD WIDTH When facing the door, this is the measurement that extends from the center to the left and right sides equally. FIELD STOP When facing the door, this is the measurement (also considered depth) that extends stop straight out from the door.
  • Page 12 12:00 Settings PROGRAM FIELD SETTINGS MOTION WS-1234567 VIA MOBILE APP (preferred) 12:00 Settings Once the outputs are assigned, review the MOTION FIELD settings and make adjustments as necessary. WS-1234567 To make an adjustment, simply click and slide or click on the edit icon beside the current setting. It is considered best practice to verify field dimensions in the Viewer screen.
  • Page 13 PROGRAM FIELD SETTINGS PULL CORDS SETTINGS EXPLAINED TEACH-IN This function performs a teach-in for the designated virtual pull cord. OBJECT TYPE This setting offers a filtering aspect to reject detection of certain objects based on their perceived width. Pedestrian: the sensor will only detect pedestrians and rejects larger objects such as vehicles. Vehicle XL: the sensor will only detect large objects and rejects smaller vehicles such as bicycles and narrow forklifts.
  • Page 14 12:00 Settings PROGRAM FIELD SETTINGS WS-1234567 PULL CORDS VIA MOBILE APP (preferred) 12:00 Settings Once the outputs are assigned, review the PRESENCE FIELD settings and make adjustments as necessary. WS-1234567 To make an adjustment, simply click on the edit icon beside the current setting. It is considered best practice to verify field dimensions in the Viewer screen.
  • Page 15 PROGRAM FIELD SETTINGS PRESENCE SETTINGS EXPLAINED FIELD WIDTH When facing the door, this is the measurement that extends from the center to the left and right sides equally. FIELD STOP When facing the door, this is the measurement (also considered depth) that extends stop straight out from the door.
  • Page 16 12:00 Settings PROGRAM FIELD SETTINGS PRESENCE WS-1234567 VIA MOBILE APP (preferred) 12:00 Settings Once the outputs are assigned, review the PRESENCE FIELD settings and make adjustments as necessary. WS-1234567 To make an adjustment, simply click and slide or click on the edit icon beside the current setting. Immunity Max.
  • Page 17 PROGRAM FIELD SETTINGS SAFETY SETTINGS EXPLAINED FIELD WIDTH When facing the door, this is the measurement that extends from the center to the left and right sides equally. FIELD STOP When facing the door, this is the measurement (also considered depth) that extends stop straight out from the door.
  • Page 18 12:00 Settings PROGRAM FIELD SETTINGS SAFETY WS-1234567 VIA MOBILE APP (preferred) 12:00 Settings Once the outputs are assigned, review the SAFETY FIELD settings and make adjustments as necessary. WS-1234567 To make an adjustment, simply click and slide or click on the edit icon beside the current setting. Field depth Immunity Field inversion...
  • Page 19: Additional Settings

    ADDITIONAL SETTINGS HEIGHT TRIGGER When one of the outputs has been assigned Motion + Height (or output 2 is assigned Presence + Height), the Height Trigger function signals the door to open when the object is taller than the selected value and ignore an object that is shorter than the selected value. For example, if the Height Trigger is set at 7'6", objects approaching that are shorter than 7'6"...
  • Page 20 ADDITIONAL SETTINGS SPEED TRIGGER By default, all objects that move slower than the selected value will activate the output. This function helps to trigger the door open in the case of late / slow-moving objects in close proximity to the door. This function is not able to be modified via remote control.
  • Page 21 ADDITIONAL SETTINGS FIELD SHIFT This feature can be used to shift the placement of the overall field to the left or right, maximum 15.7 inches. VIA MOBILE APP 12:00 Settings WS-1234567 Speed | Height Additional Settings Navigate to the ADDITIONAL SETTINGS screen to access Field Shift. Field Shift 0 Inches To change the setting, simply click on the edit icon beside the current setting.
  • Page 22 ADDITIONAL SETTINGS HEATING FUNCTION The sensor is equipped with a heater that warms the sensor to ensure optimal performance of the electronics and to keep the lens clear and dry. CAUTION: The sensor draws considerably more power (increase to 1.25 A @ 12 VDC / 0.625 A @ 24 VDC) with the heating function ON. Reference the Technical Specifications to ensure you have enough available power.
  • Page 23 FINISH Lock the cover by turning the lock Lock the sensor position by firmly Reclip the sensor cover horizontally screw clockwise. fastening the angle lock screw. (as shown) and close it. 75.0048.01 LZR-WIDESCAN Programming 20210726 Page 23 of 30...
  • Page 24: Troubleshooting

    TROUBLESHOOTING EEPROM / Watchdog test Cycle power. If error returns, replace sensor. E1: CPU-XXX The sensor encounters an internal Cycle power. If error returns, replace sensor. problem E2: XXX PWR The ADP supply is faulty Cycle power. If error returns, replace sensor. The LZR supply is faulty 1.
  • Page 25 TROUBLESHOOTING E5: TIME-OUT Fault teach-in Relaunch install teach-in. Make sure that there is no motion detection during at least 5 seconds when LED starts flashing red/green. Slightly change your position and relaunch an install teach-in. E5: FORCED Tilt angle, azimuth angle, or height has Nothing;...
  • Page 26 APPENDIX 75.0048.01 LZR-WIDESCAN Programming 20210726 Page 26 of 30...
  • Page 27: How To Use The Remote Control

    HOW TO USE THE LCD Enter the LCD menu. Return to previous menu or Select a folder, parameter, or value. display. SHORT Confirm a value and exit edit mode. PRESS Activate red spots on floor. Scroll up or down. PRESS Press and hold to adjust screen brightness.
  • Page 28 HOW TO USE THE REMOTE CONTROL ..PRESENCE MOTION PULL-CORD SAFETY Without selecting a color key, all 3 detection field widths (motion, presence, safety) are adjusted at the same time. To save an access code via the remote control: To delete an access code via the remote control: Enter the existing code If the access code is unknown, cycle power to delete the existing access code.
  • Page 29 TEACH-IN: WALK You can also reshape one or more detection fields by walking around the requested field (steps 1 – 3). It is possible to cut into the existing field from the border or to extract a field within the detection field (step 4). Make sure the field is larger than desired.
  • Page 30 TEACH-IN: WALK START WALKING When LED flashes green, hold one arm in the air and slowly start walking the trace of the desired field shape. Then, stop and wait until LED stops flashing. CUT-OUT START outside of the max. detection field. STOP outside the max.
