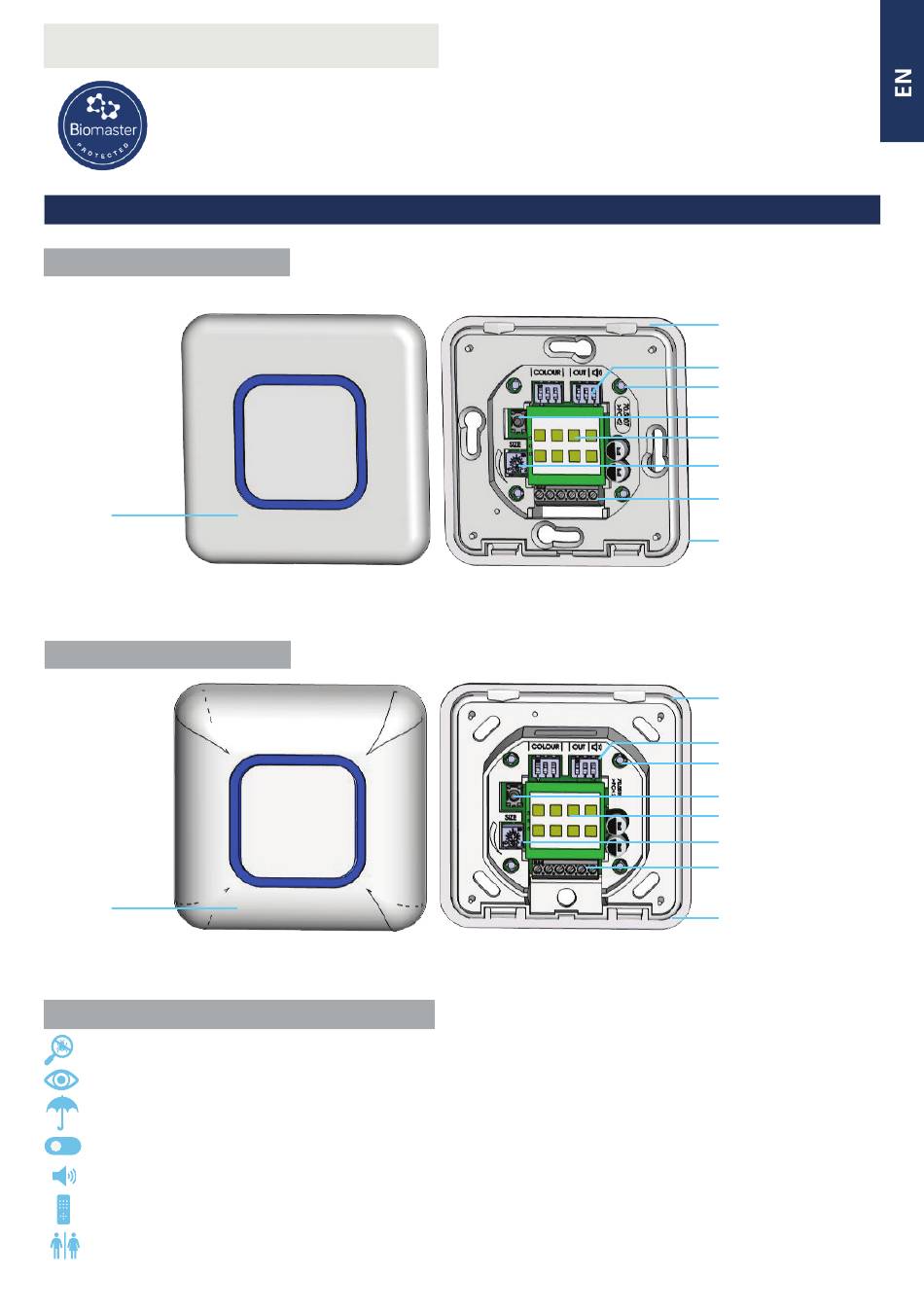

DESCRIPTION
RECESSED INSTALLATION
Front face
SURFACE INSTALLATION
Front face
FEATURES
Antimicrobial front face
Multicoloured LED-feedback
IP65
Toggle-function
Audible feedback
Remote control adjustments
Application-focused settings through external signal input

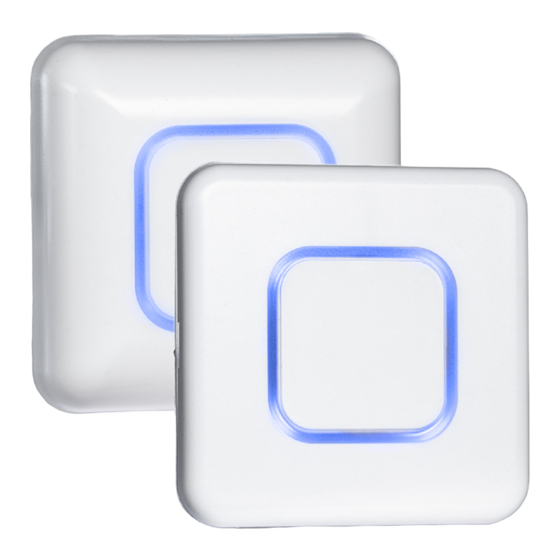

MAGIC SWITCH CHROMA
MAGIC SWITCH CHROMA
CONTACTLESS KNOWING ACT SENSOR
FOR AUTOMATIC DOORS
（ （ A A D D V V ） ）
Fixing frame
DIP switches
LED
Remote control receiver
Antenna
Field size adjustment
Terminal block
Gasket/seal
Fixing frame
DIP switches
LED
Remote control receiver
Antenna
Field size adjustment
Terminal block
Gasket/seal
1
Advertisement
Table of Contents
Related Manuals for Halma BEA MAGIC SWITCH CHROMA
Summary of Contents for Halma BEA MAGIC SWITCH CHROMA
- Page 1 MAGIC SWITCH CHROMA MAGIC SWITCH CHROMA （ （ A A D D V V ） ） CONTACTLESS KNOWING ACT SENSOR FOR AUTOMATIC DOORS DESCRIPTION RECESSED INSTALLATION Fixing frame DIP switches Remote control receiver Antenna Field size adjustment Terminal block Front face Gasket/seal SURFACE INSTALLATION Fixing frame...
-
Page 2: Installation
INSTALLATION RECESSED INSTALLATION SURFACE INSTALLATION 70 mm 50 mm CLOSE OPEN click! Control input Output ADJUSTMENTS DETECTION FIELD DIP SWITCH SETTINGS 1 2 3 COLOUR OUTPUT AUDIO LOGIC ALERT... -
Page 3: Output Mode
COLOUR LOGIC no detection detection no detection detection 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 OUTPUT MODE PULSE MODE normally open (NO) : PULSE MODE normally closed (NC) recommended for automatic doors applications RELAY RELAY DOOR OPENS... - Page 4 HOW TO USE THE REMOTE CONTROL HOW TO USE THE REMOTE CONTROL After unlocking, the red LED If the red LED flashes quickly after unlocking, you To end an adjustment session, flashes and the sensor can be need to enter an access code from 1 to 4 digits. always lock the sensor.
- Page 5 In order to change these settings by remote control, adjust the 3 DIP switches to OFF. COLOUR LOGIC 1 2 3 no detection detection Green Blue Yellow Pink Turqu- White oise Green Blue Yellow Pink Turqu- White oise Example : no detection detection ANIMATION...
-
Page 6: Sound Signal
SOUND SIGNAL In order to change these settings by remote control, adjust the DIP switch to OFF. no detection detection Short beep Long beep CONTROL INPUT COLOUR LOGIC Visual and audible feedback when the control input is activated : LED according to DIP switch settings. - Page 7 SOUND SIGNAL no detection detection Short beep Long beep Factory value...
-
Page 8: Troubleshooting
TROUBLE SHOOTING Door does not open even Bad or no power supply. Check power supply. If LED switches on or flashes, when moving the hand power connection is OK. towards the sensor. Detection range is too short. Adjust the detection range. Remove any metal plates in front of the sensor.
