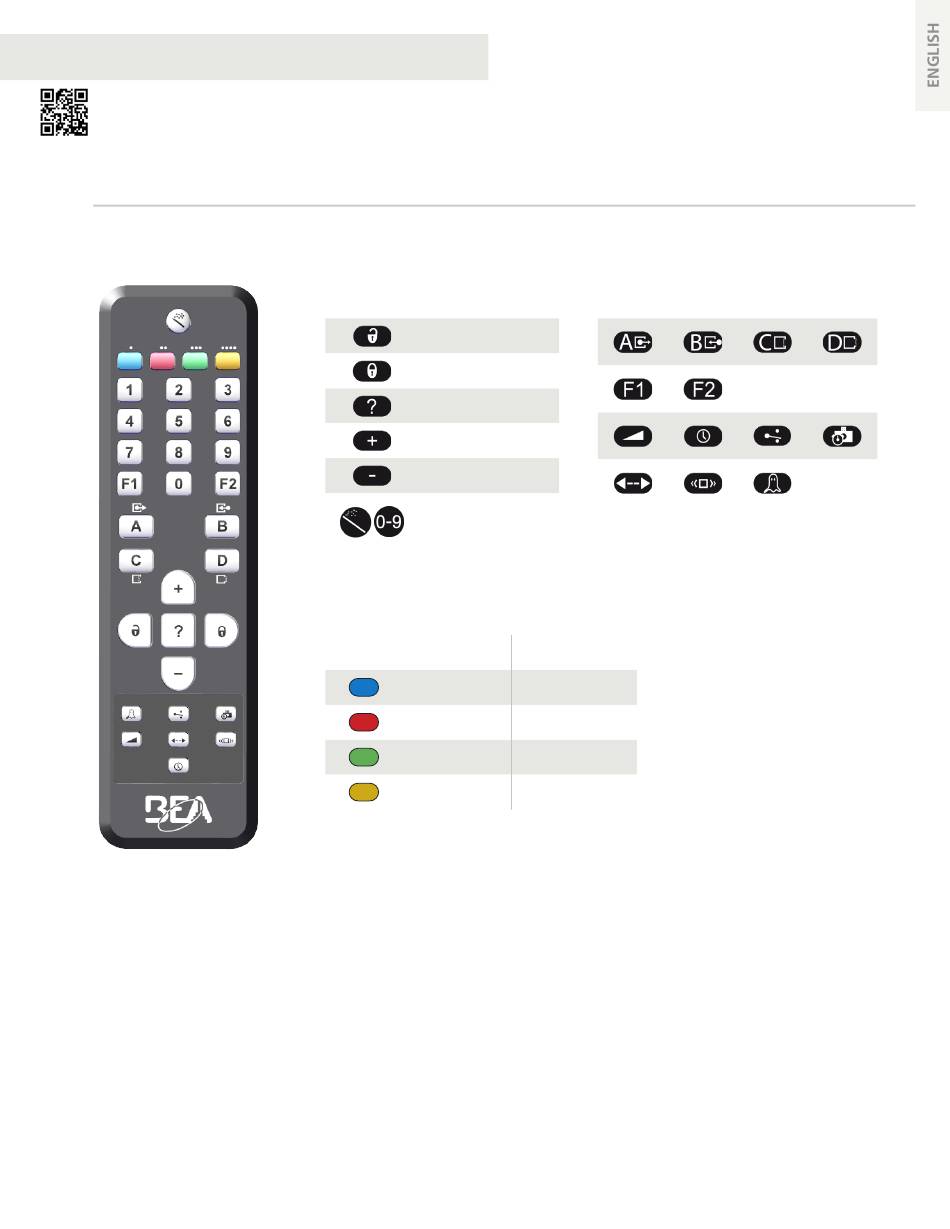

KEYS
©BEA
| Original Instructions
75.0043.01 REMOTE CONTROL 20211102
GENERAL KEYS
Unlock
Lock
Check value
Incremental increase
Incremental decrease
Setup / Teach-in
Factory values
Presettings
COLOR KEYS
LZR-FLATSCAN
/
Safety
Motion
/

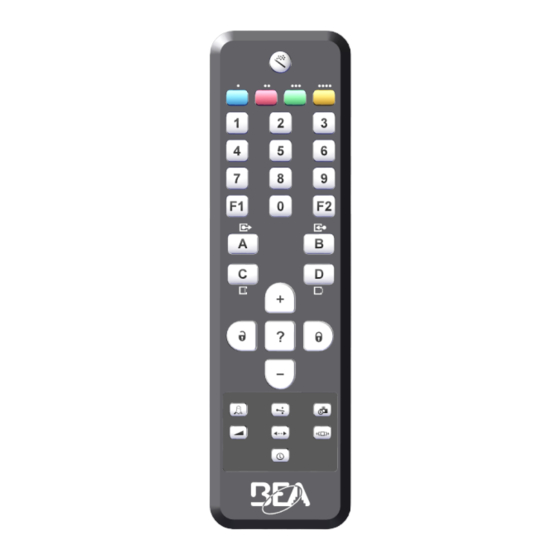

REMOTE CONTROL
How to use the remote control
FUNCTION KEYS
See pages 3 – 12 for button assignments per product.
LZR-WIDESCAN
Virtual Pull Cord
Safety
Reopening
Presence
Page 1 of 12
Advertisement
Related Manuals for Halma BEA LZR-FLATSCAN
Summary of Contents for Halma BEA LZR-FLATSCAN
- Page 1 REMOTE CONTROL How to use the remote control Visit website for available languages of this document. KEYS GENERAL KEYS FUNCTION KEYS Unlock Lock Check value Incremental increase Incremental decrease Setup / Teach-in Factory values See pages 3 – 12 for button assignments per product. Presettings COLOR KEYS LZR-FLATSCAN...
- Page 2 GENERAL REMOTE USE After unlocking, the If the red LED flashes quickly after To end an adjustment session, red LED flashes and the unlocking, you need to enter an access always lock the sensor. sensor can be adjusted code from 1 to 4 digits. by remote control.
- Page 3 APPENDIX: LZR-I30 / LZR-S600 FUNCTIONS BUTTON FUNCTION LEFT RIGHT LEFT RIGHT CENTER MOUNTING SIDE (background) (background) (no background) (no background) (no background) I30: no field = 000 / minimum = 020 / maximum = 360 / default = 200 OPTIONAL FIELD WIDTH S600: no field = 000 / minimum = 020 / maximum = 984 / default = 400 I30: no field = 000 / minimum = 020 / maximum = 360 / default = 200 OPTIONAL FIELD HEIGHT...
- Page 4 APPENDIX: FALCON, FALCON EX, PHOENIX EX FUNCTIONS BUTTON FUNCTION FIELD SIZE > > > > HOLD-OPEN TIME 0.5 s OUTPUT active passive CONFIGURATION DETECTION MODE UNI AWAY DETECTION FILTER Click here for FALCON Family User’s Guide. Click here for FALCON EX Family User’s Guide. Click here for PHOENIX EX Family User’s Guide.
-
Page 5: Detection Mode
APPENDIX: IS40 / IS40XL FUNCTIONS BUTTON FUNCTION FIELD SIZE (SENSITIVITY) > > > > HOLD-OPEN TIME 0.5 s DETECTION MODE UNI AWAY Medium High Extra High All targets ‘Pedestrian/ ‘Pedestrian/ ‘Pedestrian/ ‘Pedestrian/ All targets in in motion + Parallel traffic’ Parallel traffic’... -
Page 6: Relay Configuration
APPENDIX: IS40P FUNCTIONS BUTTON FUNCTION Mot: active Mot: passive Mot: passive Mot: active RELAY CONFIGURATION Pres: passive Pres: active Pres: passive Pres: active ACT: first/last ACT: first/last ACT: AIR entry ACT: AIR exit ACT: presence line AIR entry line AIR exit ACT: presence ACT: presence OUTPUT REDIRECTION... - Page 7 APPENDIX: EAGLE FAMILY FUNCTIONS BUTTON FUNCTION ZONE SIZE > > > > XL * IMMUNITY FILTER normal high > > > highest DETECTION MODE UNI MTF UNI AWAY MTF & AWAY OUTPUT CONFIGURATION HOLD-OPEN TIME 0.5 s MOUNTING HEIGHT < 10 ft ** >...
-
Page 8: Door Control
APPENDIX: BODYGUARD-T FUNCTIONS BUTTON FUNCTION old style INTERFACE new style (LO21) door door DOOR CONTROL normal permanently permanently open closed MODES OF OPERATION normal MP mode Record mode Mode: normal Mode: normal Mode: quiet Mode: quiet INFRARED FREQUENCY Freq: low Freq: high Freq: low Freq: high... - Page 9 APPENDIX: LZR-FLATSCAN SW FUNCTIONS BUTTON FUNCTION PINCH ZONE WIDTH no field = 000 / minimum = 001 / maximum = 040 / default = 015 PINCH ZONE HEIGHT no field = 000 / minimum = 001 / maximum = 157 / default = 157 DOOR LEAF WIDTH no field = 000 / minimum = 001 / maximum = 157 / default = 157 DOOR LEAF HEIGHT...
- Page 10 APPENDIX: LZR-FLATSCAN 3D SW FUNCTIONS BUTTON FUNCTION PINCH ZONE WIDTH no field = 000 / minimum = 001 / maximum = 040 / default = 015 DOOR LEAF WIDTH no field = 000 / minimum = 001 / maximum = 157 / default = 157 DOOR LEAF HEIGHT no field = 000 / minimum = 001 / maximum = 157 / default = 157 OUTPUT...
- Page 11 APPENDIX: ULTIMO FUNCTIONS BUTTON FUNCTION IR:Width wide < narrow IR:Curtains IR:Immunity normal outdoor enhanced IR:PresTime 30 sec 1 min 2 min 5 min 10 min 20 min 60 min infinite Rad:Fieldsize small > > > > > > > > large Rad:Direction BI <>|...
- Page 12 APPENDIX: IXIO FAMILY FUNCTIONS BUTTON FUNCTION RAD: FIELDSIZE (DT) small > > > > > > > > large RAD: IMMUNITY (DT) > > > > > > > high RAD: DIRECTION (DT) UNI MTF (DT) RAD: HOLDTIME 0.5 sec 1 sec 2 sec 3 sec...
