The DK-12 (10DK-12) Presence Sensor is an overhead-mounted active infrared sensing device that provides
DESCRIPTION
detection for the triggering of automatic swing door safety functions. This sensor is designed for use with all of
BEA's LO-21 modules, as well as the MC-15. When used with BEA's lockout devices, the sensor is programmed to
allow two different fields of detection - one for detection when the door is in the fully closed position, and the other
for detection when the door is fully open.
As with all of BEA's programmable sensing devices, full adjustability is achieved with the use of BEA's hand-held
remote control unit. This allows alteration of all of the available functions as well as for inquiry of existing settings.
TECHNICAL
SPECIFICATIONS
Installation height
Wide detection pattern
Narrow detection pattern (center, left, right)
Asymmetrical detection pattern (left, right)
Mounting angle
Power supply
Frequency
Consumption
Output
Max. voltage - relay contacts
Max. current - relay contacts
Max. Power supply
Hold time
Operating temperature
Immunity
Cable
Weight
Dimensions
Material
Housing color
COMPONENT ID
MOUNTING BRACKET
SAFETY
•
PRECAUTIONS
•
•
•
•
•
75.0082.05 20080125
DESCRIPTION
LEFT ENDCAP
Shut off all power before attempting any wiring procedures.
Maintain a clean & safe environment when working in public areas.
Constantly be aware of pedestrian traffic around the door area.
Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected
reactions by the door.
Always check placement of all wiring before powering up to insure that moving door parts will not catch any
wires and cause damage to equipment.
Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of installation.

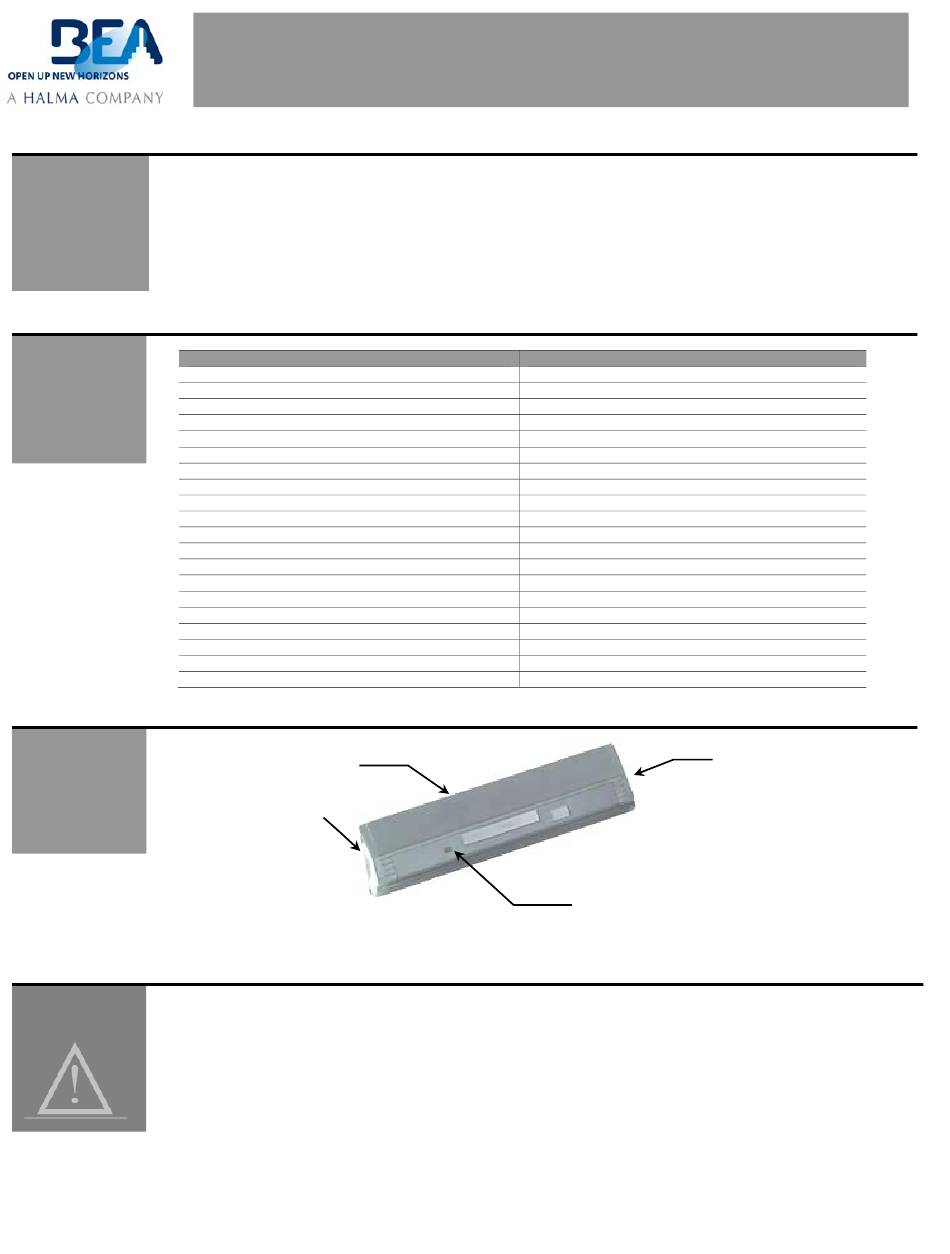

OVERHEAD PRESENCE SENSOR
SPECIFICATION
6' to 10'
6' W x 4' D (see pattern chart)
2.5' W x 3.5' D (see pattern chart)
4' W x 4' D (see pattern chart)
20° - 26° - 32°
12 - 24 V AC or DC +/- 10 %
50 or 60 Hz
2 W
SPDT relay
60 V DC - 125 V AC
8 AMP - resistive
30 Watts (DC), 125 VA(AC)
1 to 10 seconds
-30°F to 131°F
Immune to electrical and radio frequency interference
3 feet of 6 conductor cable
1 lb., 11 oz.
11 ¼" L x 2¼" D x 3" H
Aluminum & ABS plastic
Black
LED
DK-12
USERS GUIDE
RIGHT ENDCAP
Page 1 of 10
