- Page 1 -WIDESCAN ® OPENING, PRESENCE & SAFETY* SENSOR FOR INDUSTRIAL DOORS Download the LZR WIDESCAN installation app! User’s Guide for software version SW 0400 and higher (refer to tracking label on product) * please refer to page 4...
- Page 2 INSTALLATION & MAINTENANCE TIPS INSTALLATION & MAINTENANCE Avoid extreme Do not cover Avoid moving objects in Avoid exposure to vibrations. the laser window screens. the detection field. sudden and extreme temperature changes. Do not use aggressive Avoid direct exposure to Keep the protection film Wipe the laser window products or dry towels to...
-
Page 3: How To Use The Remote Control

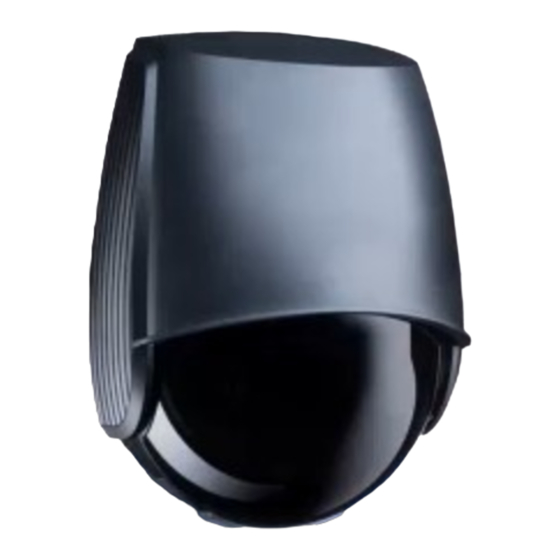

DESCRIPTION The LZR®-Widescan is an industrial door sensor with opening and presence features. main connector cable passage protection film LCD-screen laser window 10. keypad USB cap 11. tilt angle adjustment screw (1x) LED-display 12. parallel angle adjustment screw (2x) cover 13. - Page 4 BASIC PRINCIPLES: FUNCTIONS & OBJECT There are 3 main functions that create 3 overlapping detection fields with certain detection characteristics each: DOOR OPENS IF: - motion in motion field - certain object type - certain direction DOOR DOES NOT CLOSE IF: - presence in presence field - certain object type DOOR DOES NOT CLOSE IF:...
- Page 5 LED-SIGNAL LED flashes LED flashes LED flashes LED flashes LED is off LED is on quickly slowly x times SETTINGS DETECTION GENERAL in IR Remote Session All fields Motion detection Remote control session Motion field Teach-in status Pull cord detection Pull cord Troubleshooting Presence detection...
- Page 6 HOW TO ADJUST THE SENSOR BY MOBILE APP 1. Download the LZR WIDESCAN installation app. 2. Activate Bluetooth (BLE) 30 min At power ON or after a power cycle Make sure that the bluetooth is Open the Widescan mobile app and (ON->OFF->ON), the BLE is activated for activated on your smartphone and connect to the sensor.
-
Page 7: Mounting And Wiring
MOUNTING & WIRING Mounting height: as high as possible in acc. to the limitations in the Technical specifications The size of the detection field depends on the mounting height. Mounting position: centre of door or upper left corner. Mounting on the right side of the door should be avoided. Mount the sensor securely. - Page 8 POSITIONING OF DETECTION FIELD First of all, remove the blue protection film from the laser window. Follow the steps below depending on how the sensor is mounted on the door : A. if the sensor is mounted in the center of the door B.
- Page 9 B. IF THE SENSOR IS MOUNTED ON THE LEFT (OR RIGHT) SIDE Push long on OK to enter the CENTRE-TOOL and activate the visible spots. LCD DISPLAY Rotate the sensor in order to align the centre of the red spots with the centre of the door. Make sure the curtain is parallel to the door by adjusting one or both screws on the side.
- Page 10 TEACH-IN: INSTALL Mandatory teach-in is used for the sensor to learn its position in space. Teach-in can be launched by smartphone or by remote control. - Make sure the blue protection film is removed and the sensor is closed! - Make sure the laser window is free from dust and/or water drops. - The teach-in zone (square in front of the 2 visible spots) must be empty and even.
- Page 11 PRESETTINGS Choose one of the following presettings. They adjust a number of parameters automatically according to your application. If necessary, you can also adjust a parameter independently via remote control (see p. 12). (Bold = differs from factory settings) CORNER STANDARD CORRIDOR - open space...
- Page 12 OVERVIEW OF REMOTE CONTROL SETTINGS (OPTIONAL) walk install Teach-in teach-in corridor corner Presettings The service mode deactivates the 3 outputs during 15 minutes while keeping external monitoring functional. Exit the service Service Mode mode by using the same sequence. full: complete reset of all values Factory Reset partial full...
- Page 13 MOTION (ADVANCED SETTINGS) DIRECTION uni INV uni CTR uni CTR uni CTR+ uni CTR+ bidirectional detection approaching and going away unidirectional detection UNI CTR approaching with cross traffic rejection (100%) unidirectional detection with inversion only going away AWAY unidirectional detection approaching with cross traffic rejection UNI CTR + + 1 m in front of door : bidirectional detection...
- Page 14 VIRTUAL PULL CORD The door only opens when an object is detected in one of the three virtual pull cord zones during the chosen min. presence time (factory value : 2 seconds). In order to use this function: - the sensor must know its environment: teach-in install is OK. - the corresponding wires must be connected to the door activation input (out 1 by default) - the output or relay function must be set to motion or pull cord (factory value) or pull cord.
- Page 15 HEIGHT TRIGGER All objects higher than 2.25 m will activate the selected output. This option is typically used to open the door completely or partially depending on the height of the object. The wiring and logic of the output configuration are related to the door controller. <...
- Page 16 OUT 1 DOOR ACTIVATION FUNCTIONS Motion Motion or pull cord Motion or pull cord or safety Motion or pull cord or presence Pull cord Motion + Motion + and height Motion + and speed OUT 2 PROTECTION FUNCTIONS Presence Safety Presence or safety Presence and height RELAY...
-
Page 17: Troubleshooting
TROUBLESHOOTING The sensor encounters an E1: CPU-XXX Replace sensor. internal problem. The internal power supply Replace sensor. E2: XXX PWR is faulty. The power supply is too low Verify power supply > Diagnostics - LCD. E2: IN SUPPLY or too high. Verify the sensor temperature >... -
Page 20: Technical Specifications
TECHNICAL SPECIFICATIONS Technology LASER scanner, time-of-flight measurement (7 laser curtains) Detection mode Motion, presence, height and speed Detection field Width: 1 x mounting height; Depth: 1 x mounting height (minimum) Thickness of first curtain 0.5 cm / m (mounting height) Mounting height 2 m to 10 m Min.
