System Indicators

1.5.1

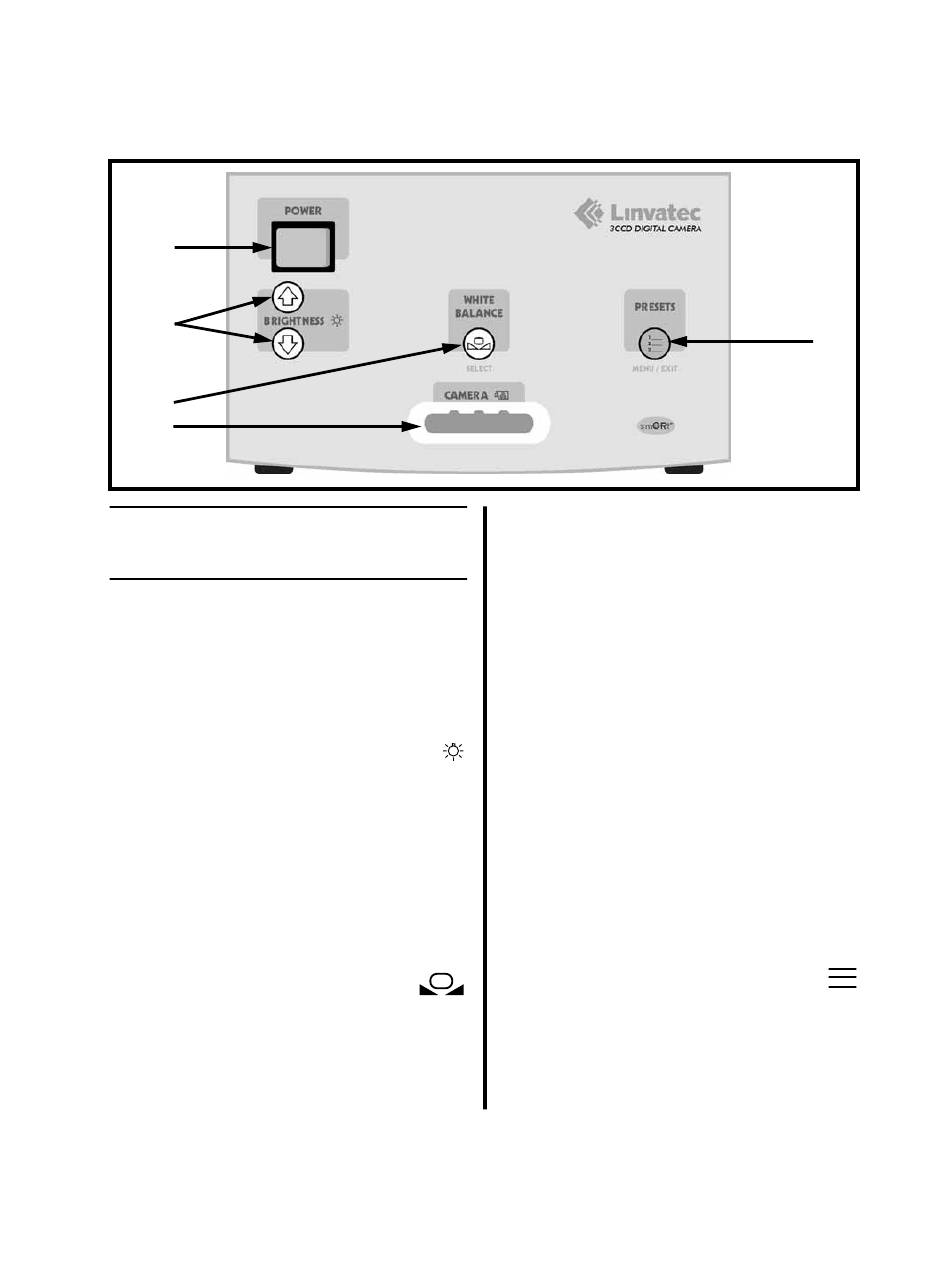

Front Panel

❶
"Power" Switch — When the controller is
plugged in and this switch is in the ON
position, the switch illuminates and the con-
troller is ready for operation.
❷
"Brightness" Control — Press the
"up" or "down" arrow button to dis-
play the on-screen Brightness Level adjust-
ment screen. Press the "up" arrow button to
increase the image brightness level. Press
the "down" arrow button to decrease the
image brightness level.
These buttons are also used to move the
cursor up and down within the menus.
❸
"WHITE BALANCE" Button —
Press to initiate white balance. If
completed successfully, a "White Balance
Complete" message displays. If white bal-
ance was not successful, a "White Balance
Not Completed" message displays.
This button is also used to select items
within the menus.
❹
"CAMERA" Receptacle — Insert the
camera head connector here. The camera
head connector and receptacle are specially
keyed to prevent the camera head from
being improperly connected. The camera
receptacle is illuminated with a green light.
When a camera head is plugged in and fully
seated, the green light will change to blue.
NOTE: Ensure camera head contacts are
dry prior to insertion.
Color Bar Test Pattern — The color bar
test pattern displays when the camera head
is removed while the controller is powered
on. Full field color bars test pattern from
left to right: white, yellow, cyan, green,
magenta, red and blue.
❺
"Presets" Button — Initial press
will display the active preset. If this
button is pressed again it will change the
camera to the next preset.
This button is also used to access menus
and exit from menus.
