(c) The window size defines what portion
of the image is utilized by the camera
controller to determine the brightness
level.
• Small Window-determines the
brightness based on the inner one-third
portion of the image.
• Large Window- determines the
brightness based on the entire image.
(d) Gain can be utilized to increase light
sensitivity under low light situations (if
there is sufficient light, gain will not be
active even if set to high). There are
four different gain settings; off, low,
medium and high. Turning gain from
off to low, medium or high can
possibly increase the noise level of the
picture.
2. The Preset Wake-up allows the user to
determine which Preset will be active at
start-up. To select the desired Preset at start
up, select "Preset Wake-up". Use the up and
down button to scroll through the options:
Preset 1, Preset 2, Preset 3, or Last (Last is
the last Preset setting that was active at shut
down). When the desired preset is dis-
played, press the "White Balance" (select)
button.

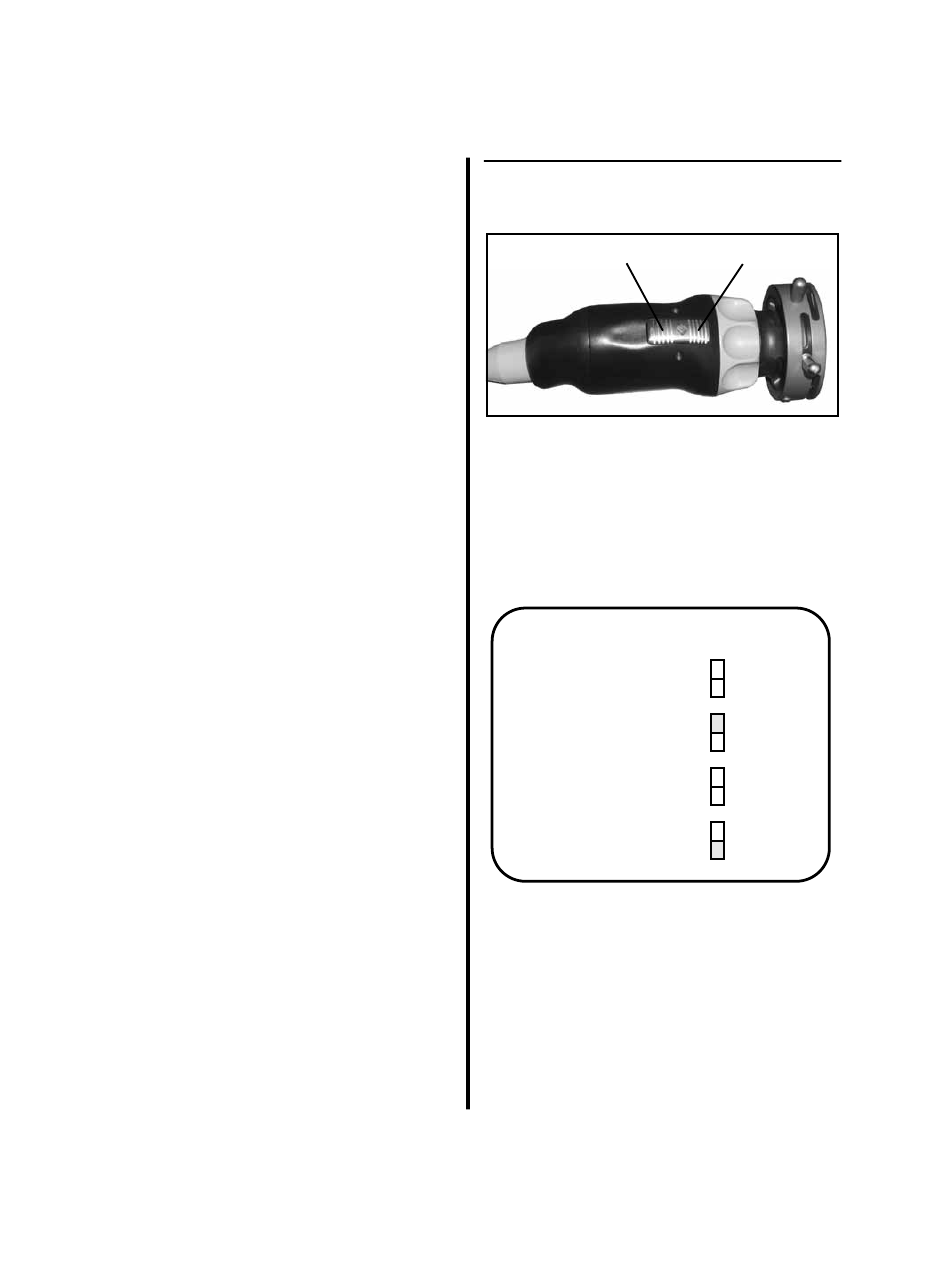

2.1.6.3 Camera Head Button Menu

Button 2
The button menu allows the user to customize
the functions of the camera head buttons. There
are two (2) camera head buttons and both can be
used for 2 functions, which are activated by
either pressing and releasing the button (short
press) or pressing and holding the button (long
press).
Head Button 1 Short Press
Head Button 1 Long Press
Head Button 2 Short Press
Head Button 2 Long Press
1. To program the button functions, select
"Head Button 1 Short Press", "Head Button
1 Long Press", "Head Button 2 Short
Press", or "Head Button 2 Long Press". The
function that is currently programmed will
flash. When the appropriate function is
flashing, press the "White Balance" (select)
button.
18
Button 1
Button Menu
Print
1
Brightness
1
Record
2
Zoom
2
