1.5.2

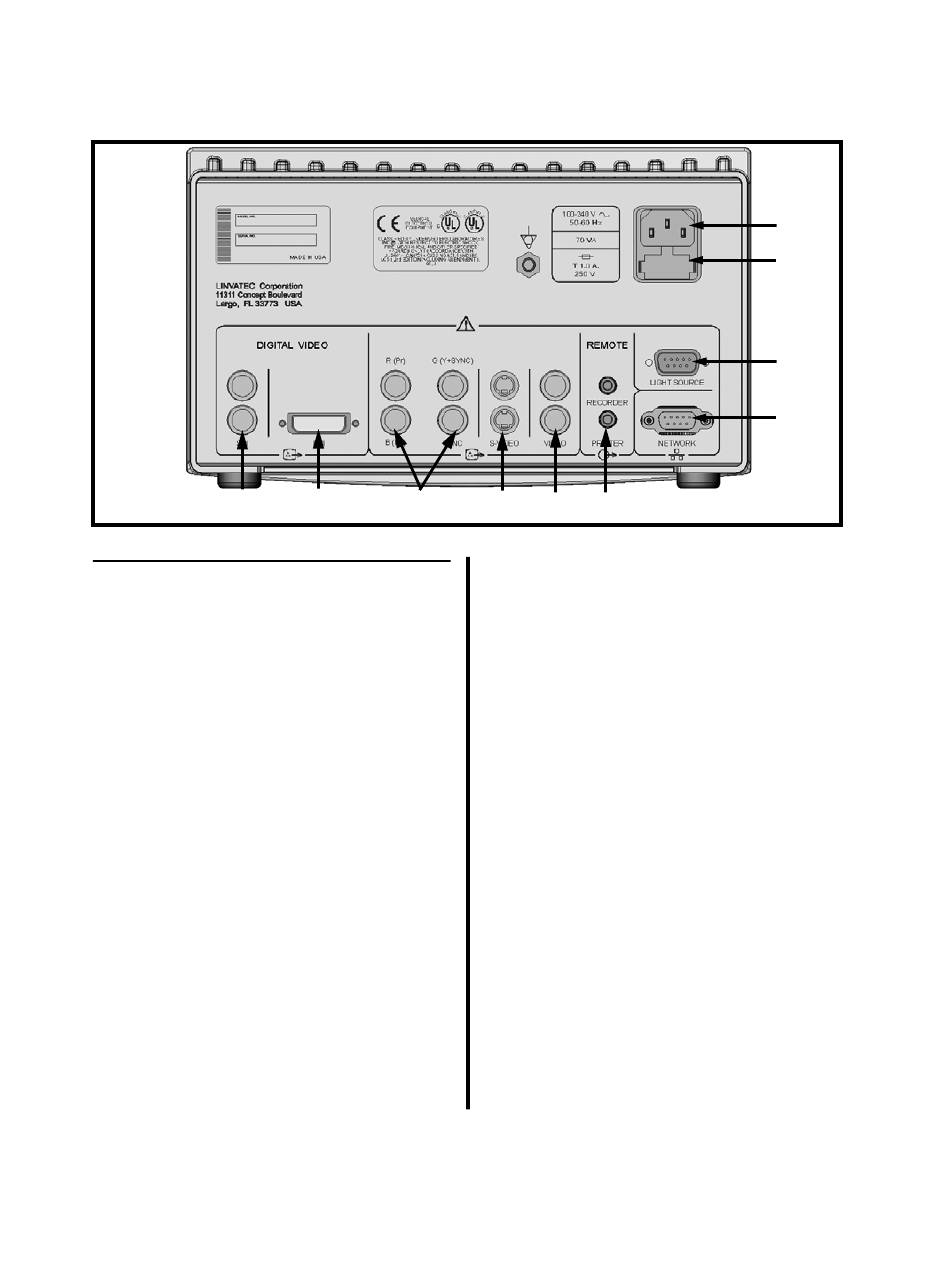

Rear Panel

❶
Power Cord Receptacle — The controller
is equipped with a switching power supply
and automatically adjusts to the line voltage
being used. Accepts the supplied hospital
grade power cord.
❷
Fuse Module — Houses the fuses.
Equipped with two T1.0A, 250V (slow
blow) fuses. To replace a fuse, see "3.5
Fuse Replacement" on page 30 .
❸
Light Source Communication Connector
Used to connect to a Linvatec LS6000 Light
source. When connected, the camera and
light source work together to optimize the
picture brightness and quality.
❹
Network — Allows external control.
❺
"PRINTER" and "RECORDER"
Remote (3.5mm Phono Jacks) Connec-
tors — Used to remotely activate a printer
and recorder with the camera head buttons.
❾ ❽
❻
❼
❽
❾
❿
6
❼ ❻ ❺
Connect the supplied remote cables
between the controller's "Printer" and
"Recorder" connector and the remote con-
nector on the printer and/or recorder.
"VIDEO" Composite (BNC) Connec-
tors — Used for the output of a composite
video signal to compatible equipment.
"S-VIDEO" Connectors — Supplies an
S-Video signal to compatible equipment.
"RGB/Sync" Video Connectors — Used
for red, green, blue and sync (RGB) or
Y-Pb-Pr signal output. Connect to compati-
ble equipment.
"DVI" Connector — Used for the digital
video signal output. Connect to DVI com-
patible equipment for a high quality digital
picture.
"SDI" Connector — Used for the digital
video signal output. Connect to SDI com-
patible equipment for a high quality digital
picture.
