SYSTEM INSTALLATION
and OPERATION
2.1

Installation

NOTE: For various system configurations,
reference Figures 2-1 through 2-6 on the
following pages. Figures shown indicate
connections for S-Video and RGB setups.
The same connections may be used for
non-S video setups as depicted by the S-Video
configurations, but use BNC cables and route
to appropriate VIDEO connectors.
1. Attach the AC power cord to the controller
receptacle and a standard grounded wall
outlet.
2. Connect the appropriate video cables
(S-Video, BNC or RGB) to the correspond-
ing output connectors on the rear of the
controller.

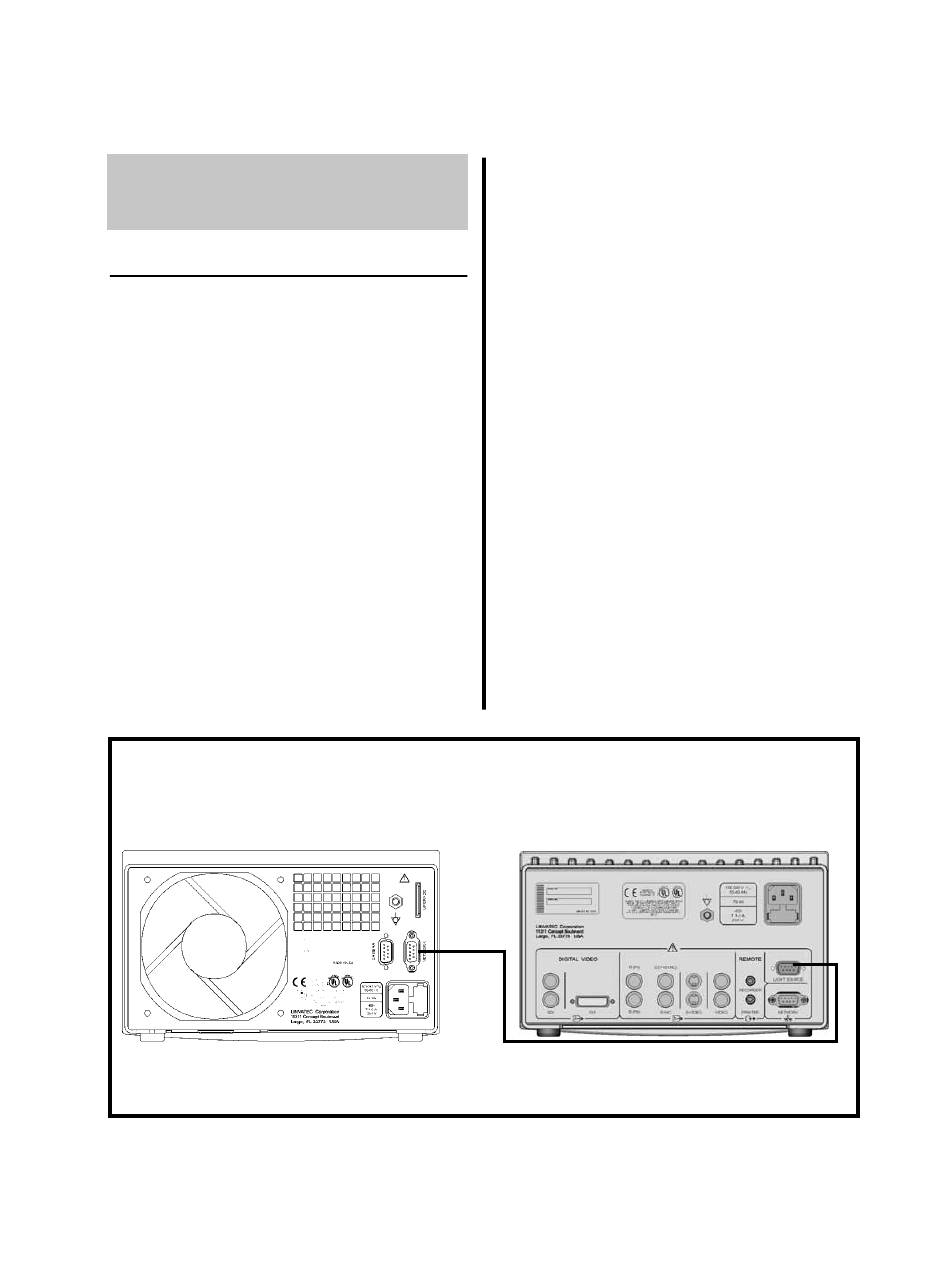

Figure 2-1: SETUP - 1: Camera and light source system configuration
LS6000 LIGHT SOURCE
3. Connect the other end of the video cables to
the corresponding connectors (S-Video to
S-Video, BNC to BNC or RGB to RGB) on
the monitor and/or any other peripheral
equipment.
4. Utilizing the remote cable allows activation
of either a recorder or printer from the cam-
era head buttons. Connect the remote cable
(supplied) to the appropriate remote outlet
on the rear of the camera controller, then to
the appropriate remote outlet on the
recorder and printer.
IM3300 CAMERA
IM9004 Light Source Communication Cable
