Safety instructions
Dealing with electromagnetic radiation
– The measuring device complies with electromagnetic compatibility
regulations and limit values in accordance with EMC-Directive
2014/30/EU.
– Local operating restrictions – for example, in hospitals, aircraft,
petrol stations or in the vicinity of people with pacemakers –
may apply. Electronic devices can potentially cause hazards
or interference or be subject to hazards or interference.
– The measuring accuracy may be affected when working close
to high voltages or high electromagnetic alternating fields.
Inserting batteries
Open the battery compartment and insert batteries (2 x 1,5V LR6 (AA))
according to the symbols. Be sure to pay attention to polarity.
a
b
c
d
e
j
k
m
n
p
q
s
12
EN
f
g
h
i
l
o
r

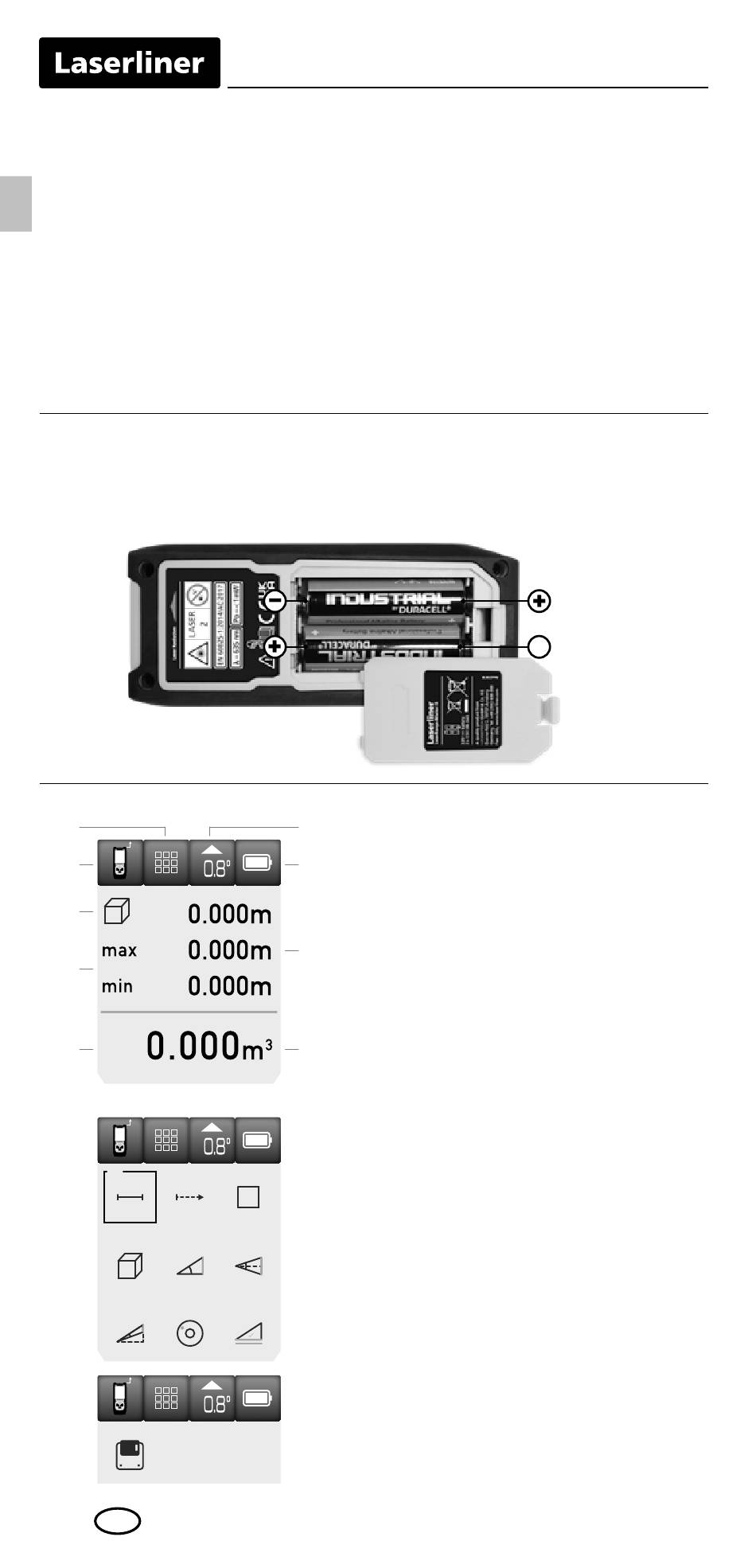

DISPLAY:
a Function display
b Measurement point (reference)
rear / front
c
Display min./max. continuous
measurement / area / volume /
angle function 1 + 2 + 3
d Min/max continuous measurement
e Measurement values /
measurement results /
malfunction / service required
f
Slope angle device
g Battery symbol
h Intermediate values / min/max values
i
Unit m / inch / ft
j
Length measurement
k Min/max continuous measurement
l
Area measurement
m Volume measurement
n Angle function 1
o Angle function 2
p Angle function 3
q Digital bubble level
r
Tilt sensor calibration
s
Memory
–
