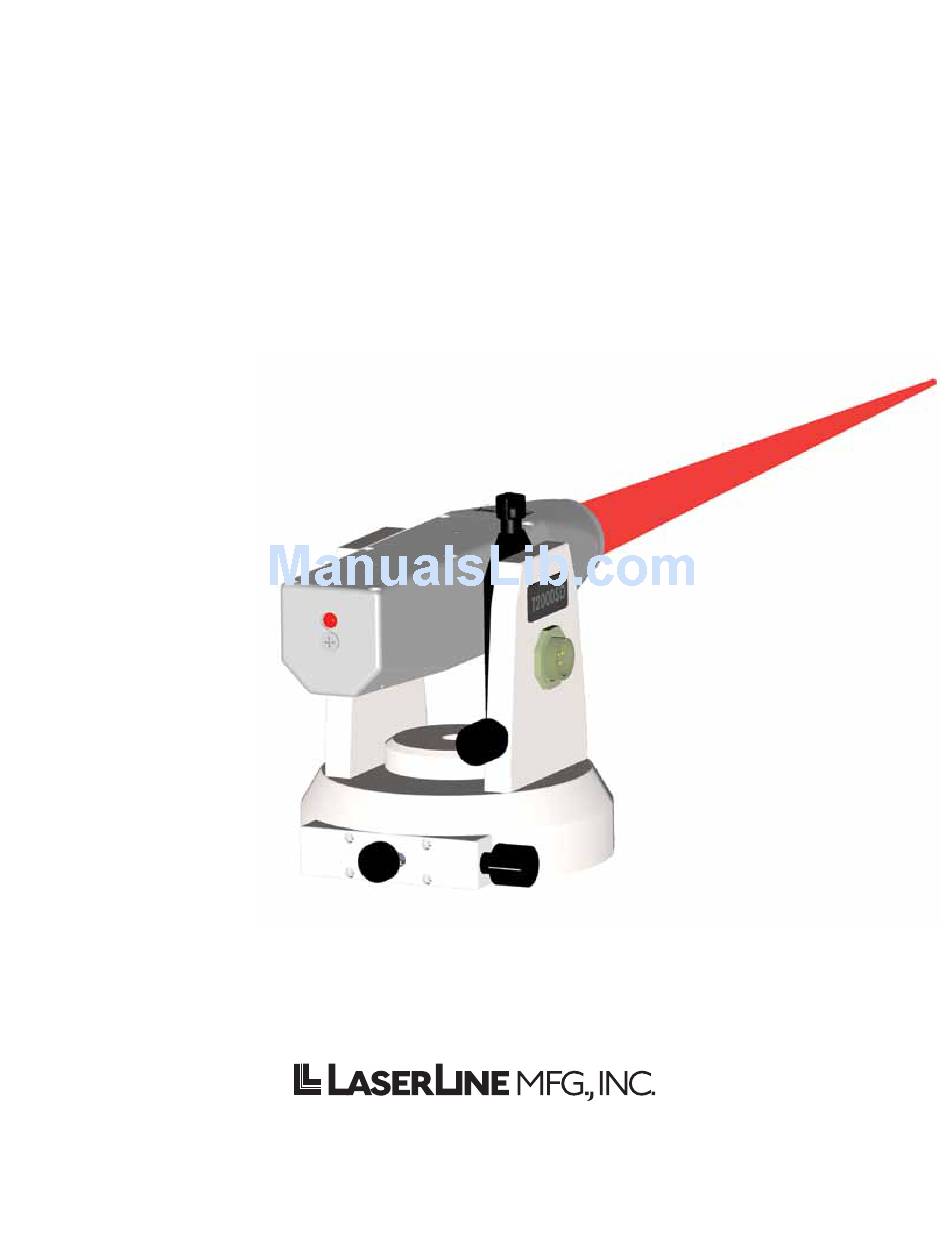

- Page 1 LaserLine Manufacturing, Inc. T-2000SD Owner’s Manual Long Range Alignment Laser 1810 se First street, suite H, redmond, Or 97756 Phone 541 548 0882 • Fax 541 548 0892 • Email laserline@empnet.com Website www.LaserLineMfg.com...
-
Page 2: Table Of Contents
LaserLine Manufacturing, Inc. 2005 T-2000SD Owner’s Manual Long Range Alignment Laser table of contents Section I Introduction Model T-2000SD Product Description & Features Section II Laser Safety Laser Safety Considerations Description of Compliance Section III Operator’s Manual Precautions for Handling Instrument... -
Page 3: Product Description
ProDucT DeScrIPTIon The T-2000SD was designed for long range alignment applications. The T-2000SD is a modular or “building block” design that allows the laser to be upgraded from its basic form. This enables the contractor to configure the laser based on the specific application and job site needs. -
Page 4: Section Ii Laser Safety
2). oPeraTorS carD side of this card and is qualified to operate Laserline Manufacturing, Inc. laser Post at least one LaserLine laser warning placard at each laser location. - Page 5 LaSer SaFeTY (CONTINuED) The T-2000SD Series Laser is a Class IIIa Laser Product generat- cauTIon! The use of optical instruments with this prod- ing less than 5 milliwatts of Laser Light. Class IIIa Lasers are used uct will increase eye hazard.
-
Page 6: Description Of Compliance
Title 2 1 of the Code of Fed- cauTIon! DO NOT disassemble the eral Regulations, Department of Health, noTe: The T-2000SD is a Class IIIA laser head or attempt to perform any Education, and Welfare, Food and Drug laser in the united States and in most internal servicing. -
Page 7: Precautions For Handling Instrument
9. Keep laser stored in dry secure place. SeTuP anD oPeraTIon (REFER TO PAgE 7) MounT the T-2000SD on any flat surface using a 5/8 X 1 1 bolt On a piece of cardboard or paper, draw a vertical line with two through a plate. -
Page 8: Model T-2000Sd Nomenclature
ProDucT noMencLaTure 1. Instrument Mount 8. Laser Housing 14. 8-40 Screws for Weaver Mount 20. Tribrach Adapter (Required to Adapt Tribrach) 2. Power Connector 1 2 VDC 9. Laser Collimator 15. Lower Scope Mount 2 1. Tribrach with Optical 3. Emission Indicator 10. -
Page 9: Product Specifications
LaserLine Mfg., Inc. liability under this warranty is limited to repairing or replacing any product returned to an authorized service center for that purpose. Any evidence of attempts to repair this unit by other than factory authorized personnel automatically voids the warranty. -
Page 10: Contact Information
LaserLine MFg., Inc. Service Center provides trained personnel using authorized replacement parts to ensure the highest quality and fast turnaround. If any part of your T-2000SD should require servicing, contact LaserLine MFg., Inc. at 541-548-0882. 1810 se First street, suite H, redmond, Or 97756 Phone 541 548 0882 •...
