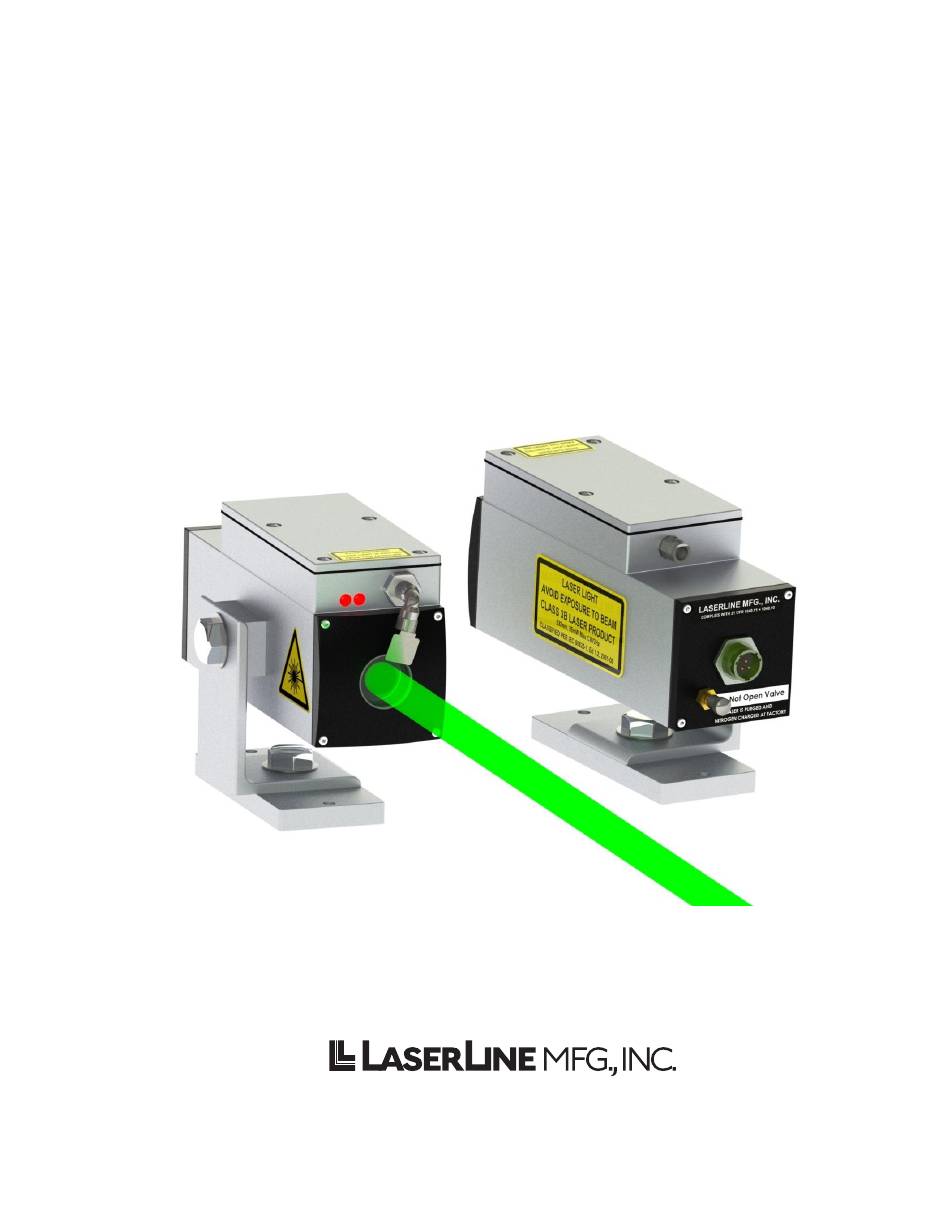

- Page 1 LaserLine Manufacturing, Inc. GL3000PMC-E OWNER’S MANUAL Wing Plow & Guidance Alignment Laser EU / IEC US Patent No. 7,966,753 1810 SE First Street, Suite H, Redmond, OR 97756 Phone 541 548 0882 • Fax 541 548 0892 • Email laserline@laserline.net Website www.LaserLineMfg.com...
-
Page 2: Table Of Contents
Winter Operation Snow Plow Guide — System Overview: What It Does & How It Works Components & Controls: Control Box Components & Controls: GL3000PMC-E Laser Winter Operation / Snow Plows — Maintenance, Service & Installation Suggestions Installation & Aiming the Laser for Snow Plows Snow Plow Operation Operation: Straight, Outside Curve &... -
Page 3: Winter Operation Snow Plow Guide System Overview: What It Does & How It Works
The blast functions. GL3000PMC-E also has a unique pneumatic snow re- 20 Feet (6.09 Meters) of Interconnect Cable: With wa- moval system incorporated with the laser housing that... -
Page 4: Components & Controls: Control Box
White wire = / 24 Vdc Black wire = -12 / 24 Gnd The GL3000PMC-E has reverse voltage protection. Laser Control Cable Connects control box to laser head. Plow Position Sensor Wire (optional) Connects to the hot wire on “power up gravity down”... -
Page 5: Components & Controls: Gl3000Pmc-E Laser
COMPONENTS & CONTROLS: GL3000PMC-E LASER GL3000PMC-E LASER 11 Vertical Aiming Loosen to aim; retighten. 12 Horizontal Aiming Loosen to aim, retighten. 13 Mounting Holes (2) Two holes provided to mount laser to stable surface. 14 Heated Laser Exit Window Automatically heats entire front of laser to eliminate snow and ice. -
Page 6: Winter Operation / Snow Plows Maintenance, Service & Installation Suggestions
Call the factory for details. 3. Do not mount the GL3000PMC-E laser unit in a location that allows the laser beam to be directed to hit any mirror... -
Page 7: Installation & Aiming The Laser For Snow Plows
INSTALLATION Underside of Mount the GL3000PMC-E Laser on the far right side (Fig. 1) Headache Rack Top of Cab (Only if rack is of the vehicle (passenger side) on top of the cab, on the attached to frame. -
Page 8: Snow Plow Operation
(see through) it. 3 The GL3000PMC-E laser spot puts your trailing edge location ahead of you and shows you what you will hit if you do not take action. It virtually eliminates continually looking in the rearview mirror for trailing edge location. -
Page 9: Operation: Straight, Outside Curve & Inside Curve
Straight Road Straight Road STRAIGHT ROAD As indicated Outside Curve OUTSIDE CURVE Outside Curve 800 Ft Radius More room than indicated 800 Ft Radius Inside Curve INSIDE CURVE Inside Curve Less room than indicated... -
Page 10: Gl3000Pmc-E Specifications
LaserLine Mfg., Inc. liability under this warranty is limited to repairing or replacing any product returned to an authorized service center for that purpose. Any evidence of attempts to repair this unit by other than factory authorized personnel automatically voids the warranty. -
Page 11: Caution
Removal of covers will violate from damaging internal electronics and IEC/OSHA Regulations and Factory optics. No user access to interior Warranty. components! Removal of covers will violate IEC/OSHA Regulations and Factory Warranty. Email: laserline@laserline.net otherwise, set it up well below. Web: Laserlinemfg.com... -
Page 12: Laser Safety
Service to be performed ONLY by manufacturer. laser inside the cab and shoot the laser beam through • Do not mount the GL3000PMC-E laser unit in a location the windshield. This is an unsafe practice as the laser that allows the laser beam to be directed to hit any mir- beam can reflect back off the windshield into the Op- erator’s eyes (backscatter). -
Page 13: Controls & Emissions
CONTROLS & EMISSIONS CONTROL PANEL Redundant Dual LED Laser Emission Indicator Key Switch Main Power Switch Turn on power, leave on entire shift. Laser Mode Switch Dual LED Emission Indicator. 1st depression = Laser on steady 2nd depression = Laser on blinking 3rd depression = Laser off Deicer Switch with status light...
