  • Page 1 SAVE CONNECT module User Manual Document in original language | 254977 · v6...
  • Page 2 This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Systemair is not liable or bound by the warranty if these instructions are not adhered to during installation or service. 254977 | v6...

  • Page 3: Table Of Contents

    Wi-Fi connection setup using a mobile application..........3 Resetting to default settings ......5 LED indicator codes..........5 First login to SAVE CONNECT application ....5 Setting the SAVE CONNECT module to Modbus TCP converter mode ........5 Declaration of Conformity .........8 USER AGREEMENT ...........9...

  • Page 5: About The Save Connect Module

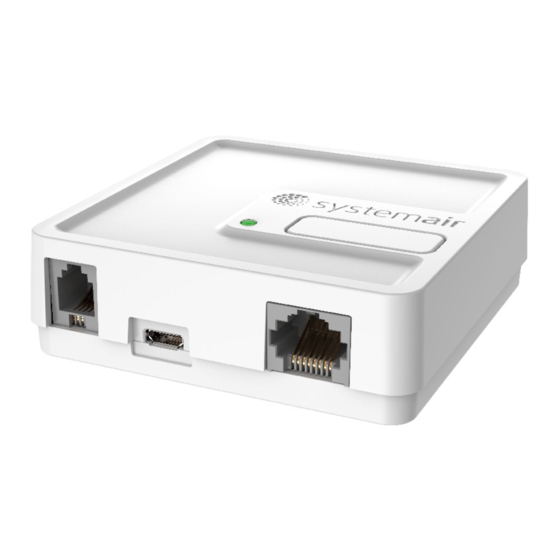

    About the SAVE CONNECT module | About the SAVE CONNECT module SAVE CONNECT module is a device that allows to control SAVE ventilation unit with a mo- bile application or any internet browser. The SAVE CONNECT module also provides addi-...

  • Page 6: Connection To Internet With Ethernet Cable

    Note: Green LED blinking twice per second indicates failure to connect to the Cloud server. Check the Ethernet cable or Internet connection. Proceed to chapter 5 First login to SAVE CONNECT application for login instructions. Wireless connection using WPS function 1 Start WPS (Wi-Fi Protected Setup) on your wireless router (see your router manual for WPS activation).

  • Page 7: Wi-Fi Connection Setup Using A Control Panel

    2. Press Scan for networks button. The SAVE CONNECT module will search for avail- able Wi-Fi networks (should not take longer than one minute). 3. After search is complete, find the network name to which the SAVE CONNECT module should connect and select it. Wi-Fi network must be password protected.
  • Page 8 | Installation and configuration 1. Activate a hotspot mode by pressing a button on the SAVE CONNECT module 3 times in 3 seconds. Orange colour LED (1) should start blinking. The SAVE CONNECT module will reboot and switch to the hotspot mode – broad- casting its own Wireless Local Area Net- work (WLAN).

  • Page 9: Resetting To Default Settings

    Setting the SAVE CONNECT module to Modbus TCP converter mode The SAVE CONNECT module is configured to work in a Cloud mode by default – allowing the customer to connect to the SAVE unit using the mobile application. Alternatively, it can be switched to a Modbus TCP converter mode.
  • Page 10 SAVE CONNECT module. A. Main Board (MB), Control panel (HMI) and language pack (HMI resources) versions stored in the SAVE CONNECT module. The SAVE CONNECT module can be used to up- date SAVE units with older firmware versions.
  • Page 11 E. Choose between automatically generated IP or static IP. F. Allow the SAVE CONNECT module to connect to the router directly by providing your lo- cal Wi-Fi network name and password. This can be used if the router does not support WPS function.

  • Page 12: Declaration Of Conformity

    Radio equipment: SAVE CONNECT (The declaration applies only to product in the condition it was delivered in and installed in the facility in accordance with the included installation instructions. The insurance does not cover components that are added or actions carried out subsequently on the product).

  • Page 13: User Agreement

    (including professional fees) and damages pro- conditions that govern your access to, and use of, the services ceeding or action against Systemair as a result of a breach of this (“the Service”) provided (as defined below) and is an agree- provision.
  • Page 14 Updates, interruption and limitation of access to the Service Indemnification Systemair may at any time limit your access to, or use of the You will defend, indemnify and hold blameless Systemair, its Service in order to limit damage caused Systemair, its supplier(s) supplier(s), affiliates or licensors, and each of their respective or other users, by your use, or the supply of, the Service.
  • Page 15 254977 | v6...
  • Page 16 Systemair UAB Linų st. 101 LT–20174 Ukmergė, LITHUANIA Phone +370 340 60165 Fax +370 340 60166 www.systemair.com...
