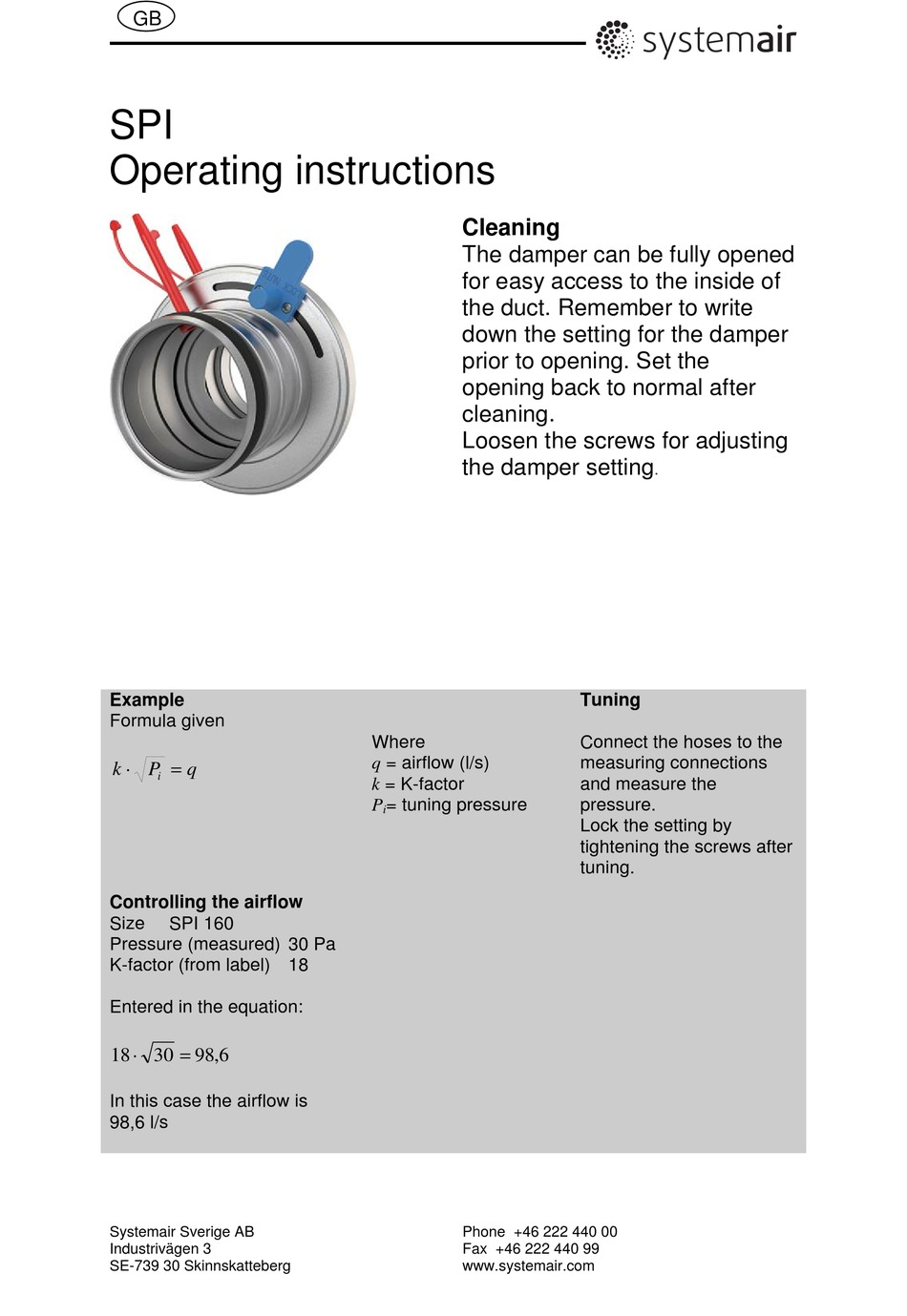

Operating instructions
Example
Formula given
k
P
q
i
Controlling the airflow
Size
SPI 160
Pressure (measured) 30 Pa
K-factor (from label) 18
Entered in the equation:
18
30
98
6 ,
In this case the airflow is
98,6 l/s
Systemair Sverige AB
Industrivägen 3
SE-739 30 Skinnskatteberg
Cleaning
The damper can be fully opened
for easy access to the inside of
the duct. Remember to write
down the setting for the damper
prior to opening. Set the
opening back to normal after
cleaning.
Loosen the screws for adjusting
the damper setting
Where
q = airflow (l/s)
k = K-factor
= tuning pressure
P
i
Phone +46 222 440 00
Fax +46 222 440 99
www.systemair.com
.
Tuning
Connect the hoses to the
measuring connections
and measure the
pressure.
Lock the setting by
tightening the screws after
tuning.
