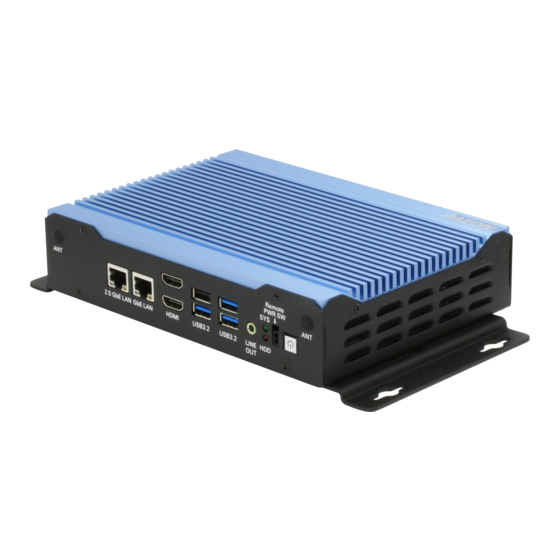

- Page 1 BOXER-6643-TGU Fanless Embedded Box PC User’s Manual 1 Last Updated: August 16, 2021...
- Page 2 AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
- Page 3 Acknowledgements All other product name or trademarks are properties of their respective owners. Microsoft Windows® is a registered trademark of Microsoft Corp. ⚫ Intel® and Celeron® are registered trademarks of Intel Corporation ⚫ Intel Core™ is a trademark of Intel Corporation ⚫...
- Page 4 Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity BOXER-6643-TGU ⚫ Wall-mount bracket ⚫ Screw Package ⚫ 3 Pin DC-In Power Connector ⚫ If any of these items are missing or damaged, please contact your distributor or sales representative immediately.
- Page 5 (if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the product page at AAEON.com for the latest version of this document. Preface...
- Page 6 Safety Precautions Please read the following safety instructions carefully. It is advised that you keep this manual for future references All cautions and warnings on the device should be noted. Make sure the power source matches the power rating of the device. Position the power cord so that people cannot step on it.
- Page 7 Do NOT disassemble the motherboard so as not to damage the system or void your warranty. If the thermal pad had been damaged, please contact AAEON's salesperson to purchase a new one. Do NOT use those of other brands. The Hex Cylinder Coppers on the front panel are not removable.
- Page 8 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Caution: There is a danger of explosion if the battery is incorrectly replaced.
- Page 9 China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 AAEON System QO4-381 Rev.A0 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚(PBDE) (Pb) (Hg) (Cd) (Cr(VI)) (PBB) 印刷电路板 × ○ ○ ○ ○ ○ 及其电子组件 外部信号 × ○ ○ ○ ○ ○ 连接器及线材 ○...
- Page 10 China RoHS Requirement (EN) Hazardous and Toxic Materials List AAEON System QO4-381 Rev.A0 Hazardous or Toxic Materials or Elements Component Name PCB and Components Wires & Connectors for Ext.Connections Chassis CPU & RAM HDD Drive LCD Module Optical Drive Touch Control...
-
Page 11: Table Of Contents
Table of Contents Chapter 1 - Product Specifications ..................1 Specifications ......................2 Chapter 2 – Hardware Information ..................4 BOXER-6643-TGU Dimensions ................5 Jumpers and Connectors ..................9 List of Jumpers ......................11 2.3.1 Setting Jumpers ..................11 2.3.2 Clear CMOS Jumper (JP1) .............. - Page 12 Memory RAM Module Installation ..............34 Hardware Installation ................... 35 2.6.1 2.5” SATA Drive Installation ..............35 2.6.2 Expansion Module Installation ............36 Chapter 3 - AMI BIOS Setup ....................37 System Test and Initialization ................38 AMI BIOS Setup ....................39 Setup Submenu: Main ..................
- Page 13 Setup Submenu: Security ................... 65 3.6.1 Secure Boot .................... 66 3.6.1.1 Key Management ..............67 Setup Submenu: Boot ..................69 Setup Submenu: Save & Exit ................70 Chapter 4 – Drivers Installation ................... 71 Drivers Download and Installation..............72 Appendix A - I/O Information ....................74 I/O Address Map ....................
-
Page 14: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications... -
Page 15: Specifications
Specifications System Intel® Core™ i7-1185G7E Intel® Core™ i5-1145G7E Intel® Core™ i3-1115G4E Intel® SoC Chipset DDR4 SO-DIMM x 2, up to 64GB System Memory HDMI 2.0 x 2 Display Interface 2.5” SATA SSD/HDD bay x 1 Storage Device M.2 2280 for NVMe SSD (PCIe Gen 4) Intel®... - Page 16 Power Supply Power Requirement 3-pin DC Input 9~36V Mechanical Mounting Wall-mount Dimensions (W x H x D) 7.87” x 5.63” x 1.75” (200mm x 143mm x 44.5mm) without bracket Gross Weight 3.3 lbs. (1.5 kg) Net Weight 4.4 lbs. (2.0 kg) Environmental -4°F ~ 140°F (-20°C ~ 60°C) with 0.5 m/s airflow Operating Temperature...
-
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information... -
Page 18: Boxer-6643-Tgu Dimensions
BOXER-6643-TGU Dimensions System Chapter 2 – Hardware Information... - Page 19 Chapter 2 – Hardware Information...
- Page 20 Board Chapter 2 – Hardware Information...
- Page 21 Chapter 2 – Hardware Information...
-
Page 22: Jumpers And Connectors
Jumpers and Connectors Chapter 2 – Hardware Information... - Page 23 Bottom Chapter 2 – Hardware Information...
-
Page 24: List Of Jumpers
A pair of needle-nose pliers may be helpful when working with jumpers. If you have any questions about how best to configure the system for your application, contact your AAEON representative or visit our website to talk with our support team. Chapter 2 – Hardware Information... -
Page 25: Clear Cmos Jumper (Jp1)
2.3.2 Clear CMOS Jumper (JP1) 1 2 3 Normal (Default) Clear CMOS 2.3.3 Auto-Power Button Selection (JP3) 1 2 3 ATX (Default) 2.3.4 Mini-Card Mode Selection (JP4) 1 2 3 PCIe (Default) mSATA Chapter 2 – Hardware Information... -
Page 26: List Of Connectors
List of Connectors Please refer to the table below for all of the system’s connectors that you can configure for your application Label Function Dual HDMI Port LAN RJ-45 Connector 2.5Gbps LAN RJ-45 Connector 1Gbps Remote Button Connector COM1 Connector RS232/RS422/RS485 CN10 COM2 Connector RS232/RS422/RS485 CN13... -
Page 27: Dual Hdmi Port (Cn1)
Label Function CN39 Audio Line Out Connector CN40 M.2 Slot Connector (B-Key 3052) CN58 SIM Slot Connector (for B-Key) Power Button with LED BAT1 RTC Connector 2.4.1 Dual HDMI Port (CN1) Note: Standard Specification Signal Level Signal Signal Type HDMI1_DATA2_P DIFF HDMI1_DATA2_N DIFF... - Page 28 Signal Level Signal Signal Type HDMI1_CLK_N DIFF 3.3V HDMI1_SCL HDMI1_SDA +V5S_HDMI_CON HDMI1_HPD HDMI2_DATA2_P HDMI2_DATA2_N HDMI2_DATA1_P HDMI2_DATA1_N HDMI2_DATA0_P HDMI2_DATA0_N HDMI2_CLK_P HDMI2_CLK_N 3.3V HDMI2_SCL HDMI2_SDA Chapter 2 – Hardware Information...
-
Page 29: Lan Port (Cn2, 3)
Signal Level Signal Signal Type +V5S_HDMI_CON HDMI2_HPD 2.4.2 RJ-45 LAN Port (CN2, 3) Signal Level Signal Signal Type MDI0+ DIFF MDI0- DIFF MDI1+ DIFF MDI2+ DIFF MDI2- DIFF MDI1- DIFF MDI3+ DIFF MDI3- DIFF Chapter 2 – Hardware Information... -
Page 30: Remote Button Connector (Cn4)
2.4.3 Remote Button Connector (CN4) Note: Connects with male adapter EVER CONN 3016H-02 (2x1) Signal Level Signal Signal Type PWR_BUTTON 2.4.4 COM Connector RS232/RS422/RS485 (CN9, 10) Pin Name Signal RS-422 RS-485 Chapter 2 – Hardware Information... -
Page 31: Com Port (Wafer Box, Optional) (Cn13, 14)
2.4.5 COM Port (Wafer Box, Optional) (CN13, 14) Pin Name Signal RS-422 RS-485 Chapter 2 – Hardware Information... -
Page 32: Connector M-Key 2280 (Cn15)
2.4.6 M.2 Connector M-Key 2280 (CN15) Signal Level Signal Signal Type +3.3V +3.3V +3.3V +3.3V PCIE_RXN0 CARD_PWR_OFF_N +3.3V PCIE_RXP0 PCIE_TXN0 +3.3V +3.3V PCIE_TXP0 +3.3V +3.3V +3.3V +3.3V PCIE_RXN1 +3.3V +3.3V PCIE_RXP1 Chapter 2 – Hardware Information... - Page 33 Signal Level Signal Signal Type PCIE_TXN1 PCIE_TXP1 PCIE_RXN2 PCIE_RXP2 PCIE_TXN2 PCIE_TXP2 DEVSLP +3.3V SMB_CLK_M2 +1.8V PCIE_RXP3 SMB_DATA_M2 +1.8V PCIE_RXN3 Chapter 2 – Hardware Information...
- Page 34 Signal Level Signal Signal Type PCIE_TXN3 PCIE_TXP3 RESET# +3.3V CLKREQ# +3.3V PCIE_M.2_CLK# WAKE# +3.3V PCIE_M.2_CLK +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V Chapter 2 – Hardware Information...
-
Page 35: Dual Usb3.2 Gen 2 Ports (Cn16, 17)
2.4.7 Dual USB3.2 Gen 2 Ports (CN16, 17) Signal Level Signal Signal Type +5VSB USB_D- DIFF USB_D+ DIFF USB3_RX_N DIFF USB3_RX_P DIFF USB3_TX_N DIFF USB3_TX_P DIFF +5VSB USB_D- DIFF USB_D+ DIFF USB3_RX_N DIFF USB3_RX_P DIFF USB3_TX_N DIFF Chapter 2 – Hardware Information... -
Page 36: Audio Box Connector (Cn23)
Signal Level Signal Signal Type USB3_TX_P DIFF 2.4.8 Audio Box Connector (CN23) Note: 10P pitch:1.25mm Signal Level Signal Signal Type MIC_L MIC_R GND_AUDIO LINE_L_IN LINE_R_IN GND_AUDIO LEFT_OUT GND_AUDIO RIGHT_OUT +5V_AUDIO Chapter 2 – Hardware Information... -
Page 37: Sata Connector (Cn26)
2.4.9 SATA Connector (CN26) Signal Level Signal Signal Type SATA_TX+ DIFF SATA_TX- DIFF SATA_RX- DIFF SATA_RX+ DIFF +V3.3S 3.3V +V3.3S 3.3V +V3.3S 3.3V +V5S +V5S +V5S Chapter 2 – Hardware Information... -
Page 38: Usb2.0 Wafer Box (Cn27, 28)
Signal Signal Type Signal Level +V12S +V12S +V12S 2.4.10 USB2.0 Wafer Box (CN27, 28) Note: 5P Pitch: 1.25mm Signal Level Signal Signal Type USBD- DIFF USBD+ DIFF Chapter 2 – Hardware Information... -
Page 39: Digital Io Port (Cn31)
2.4.11 Digital IO Port (CN31) Signal Level Signal Signal Type DIO0 DIO1 DIO2 DIO3 DIO4 DIO5 DIO6 DIO7 Chapter 2 – Hardware Information... -
Page 40: Debug Card Connector (Cn34)
2.4.12 Debug Card Connector (CN34) Signal Level Signal Signal Type ESPI_IO_0 +1.8V ESPI_IO_1 +1.8V ESPI_IO_2 +1.8V ESPI_IO_3 +1.8V +3.3V +3.3V ESPI_IO_CS# ESPI_IO_RST# EPSI_IO_LCLK SMCLK SMDAT Chapter 2 – Hardware Information... -
Page 41: Mini Card Slot (Full-Sized) (Cn35)
2.4.13 Mini Card Slot (Full-Sized) (CN35) Signal Signal Type Signal Level PCIE_WAKE# +3.3V +3.3V +1.5V +1.5V PCIE_CLK_REQ# UIM_PWR UIM_DATA PCIE_REF_CLK- DIFF UIM_CLK PCIE_REF_CLK+ DIFF UIM_RESET UIM_VPP Chapter 2 – Hardware Information... - Page 42 Signal Signal Type Signal Level W_DISABLE# +3.3V PCIE_RST# +3.3V PCIE_RX- DIFF +3.3VSB +3.3V PCIE_RX+ DIFF +1.5V +1.5V SMB_CLK +3.3V PCIE_TX- DIFF SMB_DATA +3.3V PCIE_TX+ DIFF USB_D- DIFF USB_D+ DIFF +3.3VSB +3.3V +3.3VSB +3.3V Chapter 2 – Hardware Information...
-
Page 43: Sim Slot (Cn36, Cn58)
Signal Signal Type Signal Level MINICARD_SATA_PCIE_DET +3.3V +1.5V +1.5V +3.3VSB +3.3V 2.4.14 SIM Slot (CN36, CN58) Signal Signal Type Signal Level UIM_PWR UIM_RST UIM_CLK UIM_VPP UIM_DATA Chapter 2 – Hardware Information... -
Page 44: Connector B-Key 3052 (Cn40)
2.4.15 M.2 Connector B-Key 3052 (CN40) Signal Level Signal Signal Type +3.3V +3.3V +3.3V +3.3V CARD_PWR_OFF_N +3.3V USB_2.0_P W_DISABLE +3.3V USB_2.0_N Chapter 2 – Hardware Information... - Page 45 Signal Signal Type Signal Level USB3_RXN UIM_RST USB3_RXP UIM_CLK UIM_DATA USB3_TXN UIM_PWR USB3_TXP PCIE_RXN PCIE_RXP PCIE_TXN PCIE_TXP RESET# +3.3V CLKREQ# +3.3V Chapter 2 – Hardware Information...
- Page 46 Signal Signal Type Signal Level PCIE_M.2_CLK# WAKE# +3.3V PCIE_M.2_CLK RESET# SUSCLK +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V Chapter 2 – Hardware Information...
-
Page 47: Memory Ram Module Installation
Memory RAM Module Installation Before installing the RAM, ensure the system is powered down and disconnect the power cord from the system. Make sure you have the RAM module(s) ready to install. See Chapter 1 for RAM requirements and specifications. On the bottom of the system, remove the DIMM Cover. -
Page 48: Hardware Installation
Hardware Installation 2.6.1 2.5” SATA Drive Installation Before installing the SATA Drive, ensure the system is powered down and disconnect the power cord from the system. Make sure you have the SATA Drive ready to install. See Chapter 1 for SATA drive specifications for compatibility. Access the SATA Drive tray by removing it via the side panel. -
Page 49: Expansion Module Installation
See Chapter 1 for expansion module specifications for compatibility. Turn the BOXER-6643-TGU system over so the bottom is facing up. Remove the two retaining screws securing the bottom access panel. Install each module by first inserting at an angle (approx 30°) then gently pressing down and securing with a... -
Page 50: Chapter 3 - Ami Bios Setup
Chapter 3 Chapter 3 - AMI BIOS Setup... -
Page 51: System Test And Initialization
System Test and Initialization The system uses certain routines to perform testing and initialization during the boot up sequence. If an error, fatal or non-fatal, is encountered, the system will output a few short beeps or an error message. The board can usually continue the boot up sequence with non-fatal errors. -
Page 52: Ami Bios Setup
AMI BIOS Setup The AMI BIOS ROM has a pre-installed Setup program that allows users to modify basic system configurations, which is stored in the battery-backed CMOS RAM and BIOS NVRAM so that the information is retained when the power is turned off. To enter BIOS Setup, power on the computer and press <Del>... -
Page 53: Setup Submenu: Main
Setup Submenu: Main Chapter 3 – AMI BIOS Setup... -
Page 54: Setup Submenu: Advanced
Setup Submenu: Advanced Chapter 3 – AMI BIOS Setup... -
Page 55: Trusted Computing
3.4.1 Trusted Computing Options Summary Security Device Disable Support Enable Optimal Default, Failsafe Default Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. SHA-1 PCR Bank Disable Optimal Default, Failsafe Default Enable... - Page 56 Options Summary Pending operation None Optimal Default, Failsafe Default TPM Clear Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change state of Security Device. Platform Hierarchy Disable Enable Optimal Default, Failsafe Default Enable or Disable Platform Hierarchy Storage Hierarchy Disable...
-
Page 57: Cpu Configuration
3.4.2 CPU Configuration Options Summary Intel (VMX) Disabled Virtualization Enabled Optimal Default, Failsafe Default Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. Active Processor Cores All Optimal Default, Failsafe Default Number of cores to enable in each processor package. Intel®... - Page 58 Options Summary Turbo Mode Disabled Enabled Optimal Default, Failsafe Default Enable/Disable processor Turbo Mode (requires EMTTM enabled too). AUTO means enabled. C states Disabled Enabled Optimal Default, Failsafe Default Enable/Disable CPU Power Management. Allows CPU to go to C states when it’s not 100% utilized.
-
Page 59: Pch-Fw Configuration
3.4.3 PCH-FW Configuration Options Summary ME State Disabled Enabled Optimal Default, Failsafe Default When Disabled ME will be put into ME Temporarily Disabled Mode. AMT BIOS Features Disabled Enabled Optimal Default, Failsafe Default When disabled AMT BIOS Features are no longer supported and user is no longer able to access MEBx Setup. -
Page 60: Firmware Update Configuration
3.4.3.1 Firmware Update Configuration Options Summary ME FW Image Re-Flash Disabled Optimal Default; Failsafe Default Enabled Enable/Disable ME FW Image Re-Flash function. FW Update Disabled Enabled Optimal Default; Failsafe Default Enable/Disable ME FW Update function Chapter 3 – AMI BIOS Setup... -
Page 61: Ptt Configuration
3.4.3.2 PTT Configuration Options Summary TPM Device Selection dTPM Optimal Default; Failsafe Default Selects TPM device: PTT or dTPM. PTT – Enables PTT in SkuMgr dTPM 1.2 – Disables PTT in SkuMgr Warning! PTT/dTPM will be disabled and all saved data will be lost. Chapter 3 –... -
Page 62: Sata Configuration
3.4.4 SATA Configuration Options Summary Port 1 Disabled Enabled Optimal Default, Failsafe Default Enable or Disable SATA Port. Mini Card Disabled Enabled Optimal Default, Failsafe Default Enable or Disable SATA Port. Chapter 3 – AMI BIOS Setup... -
Page 63: Nvme Configuration
3.4.5 NVMe Configuration Chapter 3 – AMI BIOS Setup... -
Page 64: Usb Configuration
3.4.6 USB Configuration Options Summary XHCI Hand-off Disabled Enabled Optimal Default, Failsafe Default This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. USB Mass Storage Driver Disabled Support Enabled Optimal Default, Failsafe Default Enable/Disable USB Mass Storage Driver Support. -
Page 65: Hardware Monitor
3.4.7 Hardware Monitor Chapter 3 – AMI BIOS Setup... -
Page 66: Sio Configuration
3.4.8 SIO Configuration Chapter 3 – AMI BIOS Setup... -
Page 67: Serial Port 1 Configuration
3.4.8.1 Serial Port 1 Configuration Options Summary Use This Device Disabled Enabled Optimal Default; Failsafe Default Enabled or Disabled this Logical Device. Possible Use Automatic Setting Optimal Default, Failsafe Default IO=3F8h; IRQ = 4; IO=2F8h; IRQ = 3; Allows the user to change the device resource settings. New settings will be reflected on this setup page after system restarts. -
Page 68: Serial Port 2 Configuration
3.4.8.2 Serial Port 2 Configuration Options Summary Use This Device Disabled Enabled Optimal Default; Failsafe Default Enabled or Disabled this Logical Device. Possible Use Automatic Setting Optimal Default, Failsafe Default IO=2F8h; IRQ = 3; IO=3F8h; IRQ = 4; Allows the user to change the device resource settings. New settings will be reflected on this setup page after system restarts. -
Page 69: Serial Port 3 Configuration
3.4.8.3 Serial Port 3 Configuration Options Summary Use This Device Disabled Enabled Optimal Default; Failsafe Default Enabled or Disabled this Logical Device. Possible Use Automatic Setting Optimal Default, Failsafe Default IO=3E8h; IRQ = 11; IO=2E8h; IRQ = 11; Allows the user to change the device resource settings. New settings will be reflected on this setup page after system restarts. -
Page 70: Serial Port 4 Configuration
3.4.8.4 Serial Port 4 Configuration Options Summary Use This Device Disabled Enabled Optimal Default; Failsafe Default Enabled or Disabled this Logical Device. Possible Use Automatic Setting Optimal Default, Failsafe Default IO=2E8h; IRQ = 11; IO=3E8h; IRQ = 11; Allows the user to change the device resource settings. New settings will be reflected on this setup page after system restarts. -
Page 71: Power Management
3.4.9 Power Management Options Summary Power Mode ATX Type Optimal Default, Failsafe Default AT Type Select power supply mode. Restore AC Power Loss Last State Optimal Default, Failsafe Default Always On Always Off Select power state when power is re-applied after a power failure. RTC wake system from S5 Disabled Optimal Default, Failsafe Default Fixed Time... -
Page 72: Digital Io Port Configuration
3.4.10 Digital IO Port Configuration Options Summary DIO1 Output Optimal Default, Failsafe Default Input Set DIO as Input or Output. Output Level High Optimal Default, Failsafe Default Set output level when DIO pin is output. DIO2 Output Optimal Default, Failsafe Default Input Set DIO as Input or Output. - Page 73 Options Summary Output Level High Optimal Default, Failsafe Default Set output level when DIO pin is output. DIO4 Output Optimal Default, Failsafe Default Input Set DIO as Input or Output. Output Level High Optimal Default, Failsafe Default Set output level when DIO pin is output. DIO5 Output Input...
-
Page 74: Setup Submenu: Chipset
Setup Submenu: Chipset Chapter 3 – AMI BIOS Setup... -
Page 75: System Agent (Sa) Configuration
3.5.1 System Agent (SA) Configuration Options Summary SA GV Disabled Fixed Low Fixed High Enabled Optimal Default, Failsafe Default System Agent Geyserville. Fixed Low/High: SA GV disabled, MRC only runs tasks from Low or High point. SA GV will be disabled on DT/Halo CPUs, regardless of this setting. Configure GT for use Enabled Optimal Default, Failsafe Default Disabled... - Page 76 Options Summary DVMT Total Gfx Mem 128M 256M Optimal Default, Failsafe Default Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device. VT-d Disabled Optimal Default, Failsafe Default Enabled VT-d capability M.2 M-Key PCIe Auto Optimal Default, Failsafe Default Speed Gen1 Gen2...
-
Page 77: Pch-Io Configuration
3.5.2 PCH-IO Configuration Options Summary HD Audio Enabled Optimal Default, Failsafe Default Disabled Control the Detection of the Audio device. Disabled = HDA will be unconditionally disabled. Enabled = HDA will be unconditionally enabled. Mini Card PCIe Speed Auto Optimal Default, Failsafe Default Gen 1 Gen 2 Gen 3... -
Page 78: Setup Submenu: Security
Setup Submenu: Security Change User/Administrator Password You can set an Administrator Password or User Password. An Administrator Password must be set before you can set a User Password. The password will be required during boot up, or when the user enters the Setup utility. A User Password does not provide access to many of the features in the Setup utility. -
Page 79: Secure Boot
3.6.1 Secure Boot Options Summary Secure Boot Disable Optimal Default, Failsafe Default Enable Secure Boot feature is Active if Secure Boot is Enabled, Platform Key (PK) is enrolled and the System mode is in User mode. The mode change requires platform reset. Secure Boot Mode Standard Custom... -
Page 80: Key Management
3.6.1.1 Key Management Options Summary Provision Factory Disabled Optimal Default, Failsafe Default Defaults Enabled Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode. Restore Factory Keys Force system to user mode. Install factory default Secure Boot key databases. - Page 81 Options Summary Save all Secure Boot Save NVRAM content of Secure Boot policy variables to the Variables. files (EFI_SIGNATURE_LIST data format) in root folder on a target file system device. Secure Boot Variables Enroll Factory Defaults or load certificates from a file: 1.
-
Page 82: Setup Submenu: Boot
Setup Submenu: Boot Options Summary Quiet Boot Disabled Enabled Optimal Default, Failsafe Default Enable / Disable Quiet Boot option. Network Stack Enabled Disabled Optimal Default, Failsafe Default Enable/Disable UEFI Network Stack. FIXED BOOT ORDER Sets the system boot order. Priorities Chapter 3 –... -
Page 83: Setup Submenu: Save & Exit
Setup Submenu: Save & Exit Chapter 3 – AMI BIOS Setup... -
Page 84: Chapter 4 - Drivers Installation
Chapter 4 Chapter 4 – Drivers Installation... -
Page 85: Drivers Download And Installation
Drivers Download and Installation Drivers for the BOXER-6643-TGU can be downloaded from the product page on the AAEON website by following this link: https://www.aaeon.com/en/p/fanless-embedded-box-pc-socket-type-boxer-6643-tgu Download the driver(s) you need and follow the steps below to install them. Step 1 – Install Chipset Driver Open the Step 1 - Chipset folder Run the SetupChipset.exe file in the folder... - Page 86 Step 4 – LAN Open the Step 4 - LAN folder Run the PROWinx64.exe file in the folder Follow the instructions Drivers will be installed automatically Step 5 – Install Audio Driver Open the Step 5 – Audio folder Run the Setup.exe file in the folder Follow the instructions Drivers will be installed automatically Step 6 –...
-
Page 87: Appendix A - I/O Information
Appendix A Appendix A - I/O Information... -
Page 88: I/O Address Map
I/O Address Map Appendix A – I/O Information... - Page 89 Appendix A – I/O Information...
- Page 90 Appendix A – I/O Information...
-
Page 91: A.2 Irq Mapping Chart
A.2 IRQ Mapping Chart Appendix A – I/O Information... - Page 92 Appendix A – I/O Information...
- Page 93 Appendix A – I/O Information...
- Page 94 Appendix A – I/O Information...
- Page 95 Appendix A – I/O Information...
- Page 96 Appendix A – I/O Information...
- Page 97 Appendix A – I/O Information...
- Page 98 Appendix A – I/O Information...
- Page 99 Appendix A – I/O Information...
-
Page 100: A.3 Memory Address Map
A.3 Memory Address Map Appendix A – I/O Information... - Page 101 Appendix A – I/O Information...
