Summary of Contents for Aaeon BOXER-8222AI

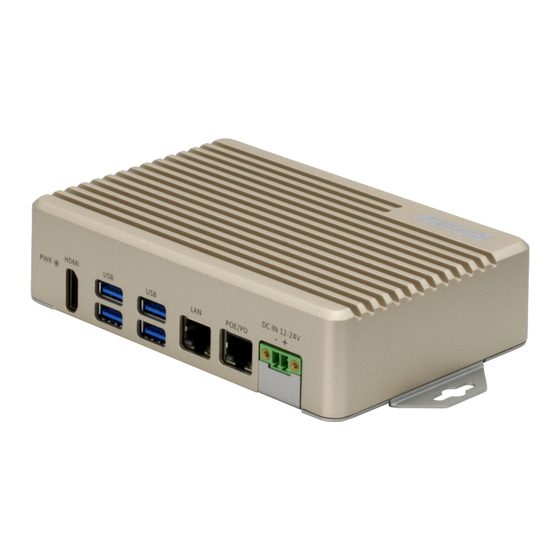

- Page 1 BOXER-8222AI Compact Fanless Embedded AI@Edge Box PC with NVIDIA® Jetson Nano™ User’s Manual 3 Last Updated: September 23, 2020...
- Page 2 AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
- Page 3 Acknowledgements All other products’ name or trademarks are properties of their respective owners. NVIDIA, the NVIDIA logo, and Jetson are trademarks of the NVIDIA Corporation ⚫ ITE is a trademark of Integrated Technology Express, Inc. ⚫ IBM and VGA are trademarks of International Business Machines Corporation. ⚫...
- Page 4 Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity BOXER-8222AI ⚫ Power Connector ⚫ If any of these items are missing or damaged, please contact your distributor or sales representative immediately.
- Page 5 (if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the product page at AAEON.com for the latest version of this document. Preface...
- Page 6 All cautions and warnings on the device should be noted. All cables and adapters supplied by AAEON are certified and in accordance with the material safety laws and regulations of the country of sale. Do not use any cables or adapters not supplied by AAEON to prevent system malfunction or fires.
- Page 7 As most electronic components are sensitive to static electrical charge, be sure to ground yourself to prevent static charge when installing the internal components. Use a grounding wrist strap and contain all electronic components in any static-shielded containers. If any of the following situations arises, please the contact our service personnel: Damaged power cord or plug Liquid intrusion to the device iii.
- Page 8 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
- Page 9 China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 AAEON System QO4-381 Rev.A0 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚(PBDE) (Pb) (Hg) (Cd) (Cr(VI)) (PBB) 印刷电路板 × ○ ○ ○ ○ ○ 及其电子组件 外部信号 × ○ ○ ○ ○ ○ 连接器及线材 外壳...
- Page 10 China RoHS Requirement (EN) Hazardous and Toxic Materials List AAEON System QO4-381 Rev.A0 Hazardous or Toxic Materials or Elements Component Name PCB and Components Wires & Connectors for Ext.Connections Chassis CPU & RAM HDD Drive LCD Module Optical Drive Touch Control...
-
Page 11: Table Of Contents
Table of Contents Chapter 1 - Product Specifications..................1 Specifications ......................2 Product Notice ......................4 Chapter 2 – Hardware Information ..................5 Dimensions ....................... 6 Jumpers and connectors..................8 List of Jumpers ......................9 2.3.1 Setting Jumpers ..................9 2.3.2 AT/ATX Mode Select (CN4 Pins 7-8) .......... - Page 12 2.5.1 M.2 Installation ..................21 2.5.2 mPCIe Card Installation ................ 22 2.5.3 SD Card Installation................22 2.5.4 Chassis Assembly................... 23 Chapter 3 – OS Flash guide ....................24 Flash OS Image to SD-Card ................25 3.1.1 Introduction .................... 25 3.1.2 Before You Begin ...................
-
Page 13: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications... -
Page 14: Specifications
Specifications System Quad Core ARM® Cortex®-A57 MPCore Processor System Memory 4GB LPDDR4 AI Solution NVidia® Jetson Nano™ Display Interface HDMI 2.0 x 1 Storage Device 32 GB MicroSD Card (Jetson Nano version B) Mini-Card (Full Size) x 1 (PCIE+SATA+USB) Ethernet 10/100/1000Base-TX x 2 USB3.2 Gen 1 x 4 (USB Type A) GbE LAN x 2 (GbE PD x 1 + GbE LAN x 1) - Page 15 Power Supply Power Requirement DC 12V~24V 2-pin terminal Mechanical Mounting Wall-mount Dimensions (W x D x H) 6.92" x 3.94" x 1.54" (175.8mm x 100.0mm x 39.0mm) Gross Weight 2.31 lbs. (1.05 kg) Net Weight 1.28 lbs. (0.58 kg) Environmental Operating Temperature -10°C ~ 70°C with 0.5m/s airflow Storage Temperature...
-
Page 16: Product Notice
Product Notice Micro-USB: Micro-USB port is ideally for flashing image only. USB ports: USB ports are not support USB DVD ROM because of file system. LAN Indicator Behavior Chapter 1 – Product Specifications... -
Page 17: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information... -
Page 18: Dimensions
Dimensions Chapter 2 – Hardware Information... - Page 19 DIO Port Chapter 2 – Hardware Information...
-
Page 20: Jumpers And Connectors
Jumpers and connectors Chapter 2 – Hardware Information... -
Page 21: List Of Jumpers
List of Jumpers The board has a number of jumpers that allow you to configure your system to suit your application. The table below shows the function of each of the board's jumpers Label Function CN4 (Pin 7-8) AT/ATX Mode Select RS-232 PCIe/SATA Mode Select 2.3.1... -
Page 22: At/Atx Mode Select (Cn4 Pins 7-8)
2.3.2 AT/ATX Mode Select (CN4 Pins 7-8) The AT/ATX Mode Select functions by connecting pins 7 and 8 of CN4. To prevent damage to the system, do not connect pins 7 and 8 to any other pin. Open – AT Mode Closed –... -
Page 23: Pcie/Sata Mode Selection (Jp5)
2.3.4 PCIe/SATA Mode Selection (JP5) 1-2 Selected: SATA Mode 2-3 Selected: PCIe Mode Chapter 2 – Hardware Information... -
Page 24: List Of Connectors
List of Connectors The board has a number of connectors that allow you to configure your system to suit your application. The table below shows the function of each of the board's connectors Label Function Jetson Nano CPU module Connector RTC Battery Connector Front Panel Connector Micro USB for Image Flash... -
Page 25: Jetson Nano Cpu Module Connector (Cn1)
2.4.1 Jetson Nano CPU Module Connector (CN1) Chapter 2 – Hardware Information... -
Page 26: Rtc Battery Connector (Cn3)
2.4.2 RTC Battery Connector (CN3) Signal Signal 2.4.3 Front Panel Connector (CN4) Signal Signal Button power Recovery Reset Latch set Latch set PWR LED Note: Pin 7 and 8 are used for setting AT/ATX Power Mode. See Chapter 2.3.2 for information. -
Page 27: Usb 2.0 Connector For Image Flash (Cn5)
2.4.4 USB 2.0 Connector for Image Flash (CN5) Signal Signal USB1- USB1+ 2.4.5 HDMI Connector (CN6) Signal Signal HDMI_DATA2_P HDMI_DATA2_N HDMI_DATA1_P HDMI_DATA1_N HDMI_DATA0_P HDMI_DATA0_N HDMI_CLK_P HDMI_CLK_N HDMI_SCL HDMI_SDA HDMI_PWR HDMI_HDP Chapter 2 – Hardware Information... -
Page 28: E Key (Cn10)
2.4.6 M.2 E Key (CN10) CN10 Uses standard M.2 E Key specifications 2.4.7 USB 3.0 Connector (CN11/12) Signal Signal VBUS_1 VBUS_2 (A)D- (B)D- (A)D+ (B)D+ (A)SSRX- (B)SSRX- (A)SSRX+ (B)SSRX+ (A)SSTX- (B)SSTX- (A)SSTX+ (B)SSTX+ Chapter 2 – Hardware Information... -
Page 29: Pd Connector (Rj45) (Cn13)
2.4.8 PD Connector (RJ45) (CN13) Signal Signal MDIP0_0_TF MDIN0_0_TF MDIP1_0_TF MDIN2_0_TF MDIP2_0_TF MDIN1_0_TF MDIP3_0_TF MDIN3_0_TF 2.4.9 40-Pin Header (CN15) Signal Signal 3.3V I2C1_SDA I2C1_SCL GPIO09 UART1_TXD UART1_RXD UART1_RTS I2S0_SCLK SPI1_SCK GPIO12 SPI1_CS1 Chapter 2 – Hardware Information... -
Page 30: Lan Rj45 Port (Cn16)
Signal Signal 3.3V SPI1_CS0 SPI0_MOSI SPI0_MISO SPI1_MISO SPI0_SCK SPI0_CS0 SPI0_CS1 ID_I2C_SDA ID_I2C_SCL GPIO01 GPIO11 GPIO07 GPIO13 I2S0_LRCK UART1_CTS SPI1_MOSI I2S0_SDIN I2S0_SDOUT 2.4.10 LAN RJ45 Port (CN16) Signal Signal MDI0+ MDI0- MDI1+ MDI1- MDI2+ MDI2- MDI3+ MDI3- Chapter 2 – Hardware Information... -
Page 31: Com Port Connector (Cn22)
2.4.11 COM Port Connector (CN22) Signal Signal 485_RX1B 485_TX1B 2.4.12 UART Debug Port Connector (CN18) Signal Signal 3.3V UART0 TXD UART0 RXD I2C SCL I2C SDA Chapter 2 – Hardware Information... -
Page 32: Dc Power In Connector (Cn27)
2.4.13 DC Power In Connector (CN27) Signal Signal PWR IN Chapter 2 – Hardware Information... -
Page 33: Hardware Installation
Hardware Installation 2.5.1 M.2 Installation Chapter 2 – Hardware Information... -
Page 34: Mpcie Card Installation
2.5.2 mPCIe Card Installation 2.5.3 SD Card Installation Chapter 2 – Hardware Information... -
Page 35: Chassis Assembly
2.5.4 Chassis Assembly Chapter 2 – Hardware Information... -
Page 36: Chapter 3 - Os Flash Guide
Chapter 3 Chapter 3 – OS Flash guide... -
Page 37: Flash Os Image To Sd-Card
{BN} being the build number ACLinux_4.9_ACLNX49D.NV03.BOXER-8222AI.{BN}.tar.gz For example, build number 4 will be named as: ACLinux_4.9_ACLNX49D.NV03.BOXER-8222AI.4.tar.gz If you have any questions or need help installing an older build, please contact AAEON support or your AAEON representative for assistance. Chapter 3 – OS Flash guide... -
Page 38: Before You Begin
Micro-SD Card USB adapter/reader (if host PC does not have a Micro-SD Slot) Jetson Nano Development Kit B01 module (no onboard eMMC storage); see image below for reference AAEON recommends downloading balenaEtcher for the image flash process. You can download the program the balena website: https://www.balena.io/etcher/... -
Page 39: Flash Image To Micro Sd Card
3.1.3 Flash Image to Micro SD Card Step 1: Insert the Micro-SD card you want to flash into the host PC. Step 2: Run the Etcher flash tool. Chapter 3 – OS Flash guide... - Page 40 Step 3: Click “Select image” and choose the image file you extracted. File name should look like: ACLinux_4.9_ACLNX49D.NV03.BOXER-8222AI.{BN}.sd.img Chapter 3 – OS Flash guide...
- Page 41 Step 4: Etcher will automatically choose a USB device to write to. Click “Change” or “Select Target” to select the correct device if Etcher has not defaulted to the SD Card. Chapter 3 – OS Flash guide...
- Page 42 Step 5: Click “Flash!” to flash image to your SD Card. Ubuntu may ask for a password to continue the operation. Enter your password to continue. Chapter 3 – OS Flash guide...
- Page 43 Step 7: After Etcher successfully finishes, remove the SD Card from the host PC, and insert the Micro-SD card into the NVIDIA Jetson Nano SOC. Then, insert the Jetson Nano SOC into the BOXER-8222AI board if you have not already done so. Chapter 3 – OS Flash guide...
- Page 44 Follow assembly instructions in Chapter 2.5 to assemble the BOXER-8222AI system. Chapter 3 – OS Flash guide...
