1

ADS1282-SP EVM (ADS1282EVM-CVAL)

The ADS1282-SP EVM is ideal for evaluating the ADS1282-SP, a dual-channel, high-precision ADC.
Figure 1 shows an overview of the evaluation setup. The ADS1282-SP EVM is mated to the
MSP430FR5969 LaunchPad™ (must be purchased separately) which communicates on an SPI bus via
USB cable to the ADS1282-SP software GUI. The GUI allows for configuration of the ADS1282-SP device
and gives time domain and frequency domain analysis of captured data with the option to export captured
data to a file.
SMA
E
x
I
p
N
a
P
n
Header
U
s
T
i
S
o
Common Mode
n
SMA
2

ADS1282-SP Software GUI Installation

Download the ADS1282-SP Software GUI Installer (SBAC150) from the product web page.
Unzip the installer, launch the executable, and follow all instructions. Refer to
software installation instructions.
3

Flashing MSP430FR5969 LaunchPad with ADS1282-SP Firmware

The completion of the ADS1282-SP Software GUI installation in
shown in Figure 2. As stated in this file, data capture from the ADS1282-SP EVM to the MSP430 EVM is
not possible until the correct firmware is flashed into the MSP430 LaunchPad. Refer to the
MSP430FR5969 LaunchPad Firmware Flashing Guide for ADS1282-SP (SBAC149) for full instructions.
This document is also provided in the GUI installation path as indicated in the README file, for your
convenience.
SBAU274 – July 2016
Submit Documentation Feedback
ADS1282EVM-CVAL
AFE ADS1282-SP
Biasing &

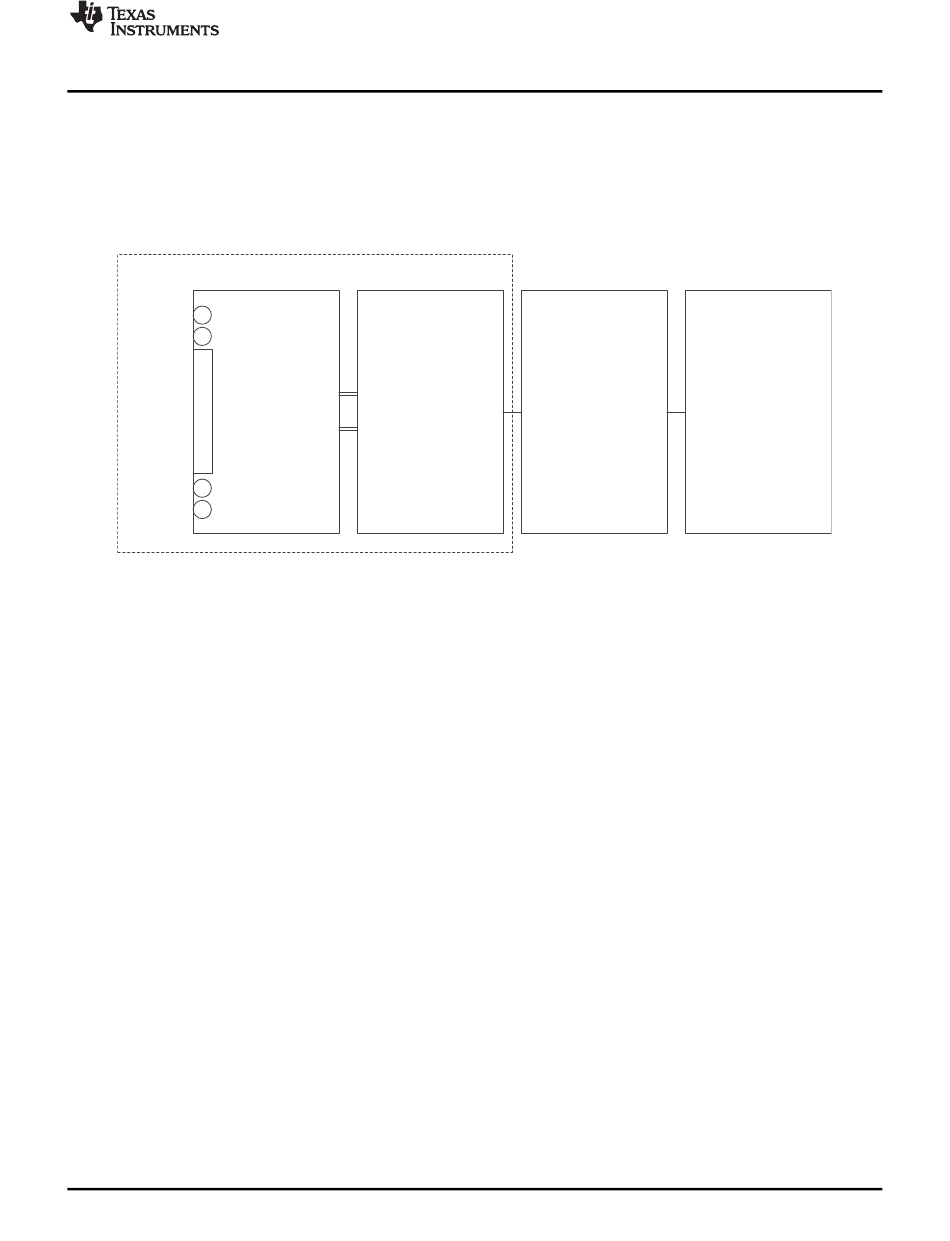

Figure 1. ADS1282-SP EVM with MSP430 LaunchPad
Copyright © 2016, Texas Instruments Incorporated
ADS1282-SP EVM (ADS1282EVM-CVAL)
MSP430-FR5969
LaunchPad
Appendix A
Section 2 results in the README file
ADS1282-SP Evaluation Module (ADS1282EVM-CVAL)
PC Host
ADS1282-SP GUI
for detailed
