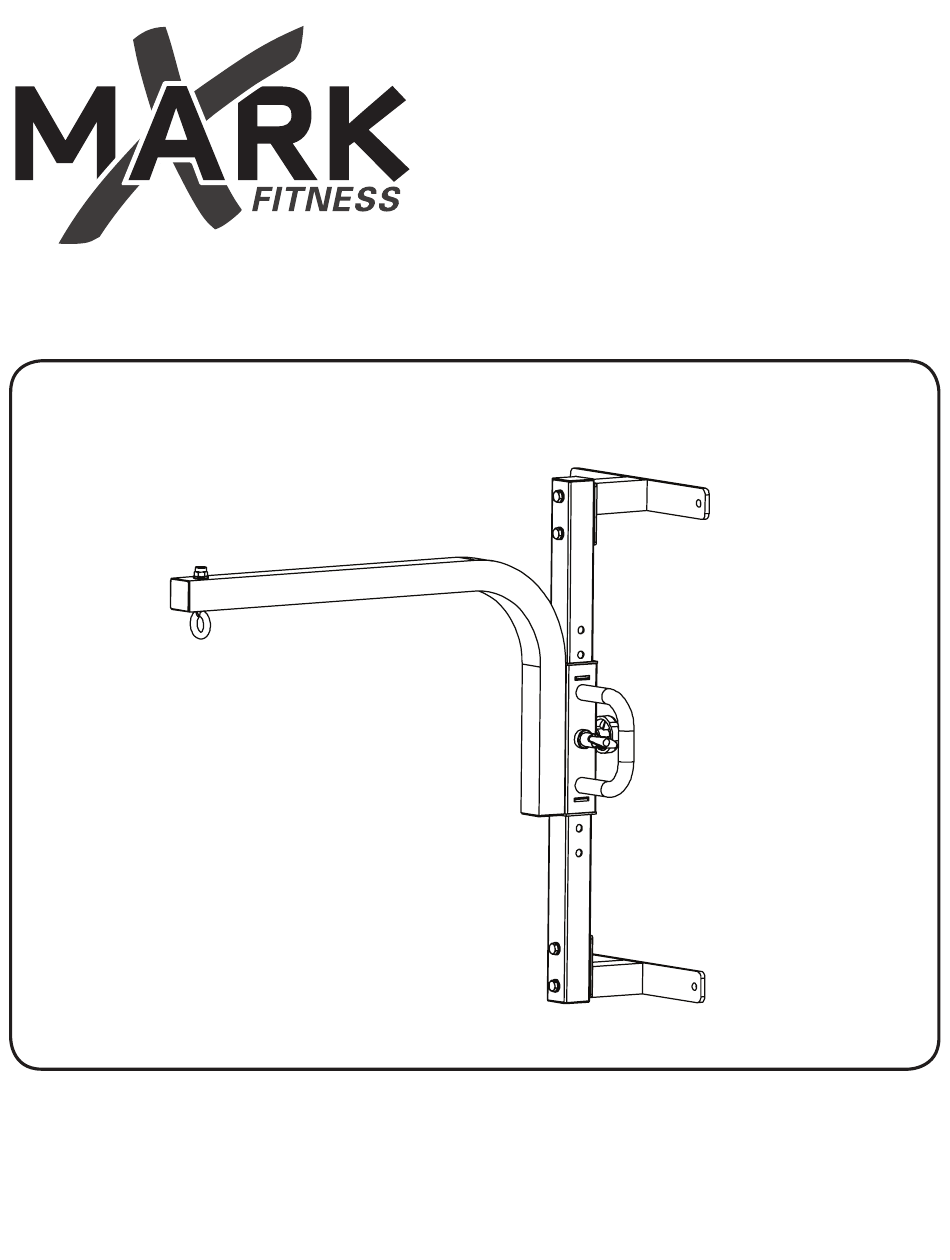

- Page 1 XM-2846 ADJUSTABLE HEAVY BAG WALL MOUNT Owner’s Manual !CAUTION Read all precautions and instructions in this manual before 8/09 using this equipment.
- Page 2 Table of Contents Before You Begin Important Safety Information Assembly Exploded View t s i...
- Page 3 This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer.
- Page 4 SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.
- Page 5 Assembly NOTE: Hand tighten bolts and locknuts until machine is fully assembled. STEP 1 Pull the Locking Pop Pin (5) out as far as it will go and Slide Speed Bag Support (3) into Upright Frame (1). Beware of the direction and secure with the Locking Pop Pin (5) and a Knob Bolt (6) as illustrated.
- Page 6 Exploded View...
- Page 7 Parts List XM-2846 Parts List Key NO. Part No. Description 204057902005 Upright Frame 204057801503 Rear Support 204057901503 Speed Bag Support 307010000763 Bushing 802900300002 Locking Pop Pin 307010001338 Knob Bolt 307010000271 Square Plug 50 306010011707 Heavy Bag Hook 306010023105 M12 Washer...
- Page 8 Should any product submitted for warranty service be found ineligible, an estimate of repair cost will be furnished and the repair will be made if requested by you upon XMARK Fitness’...
- Page 9 XMark Fitness, LLC 2791 Valley View Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
