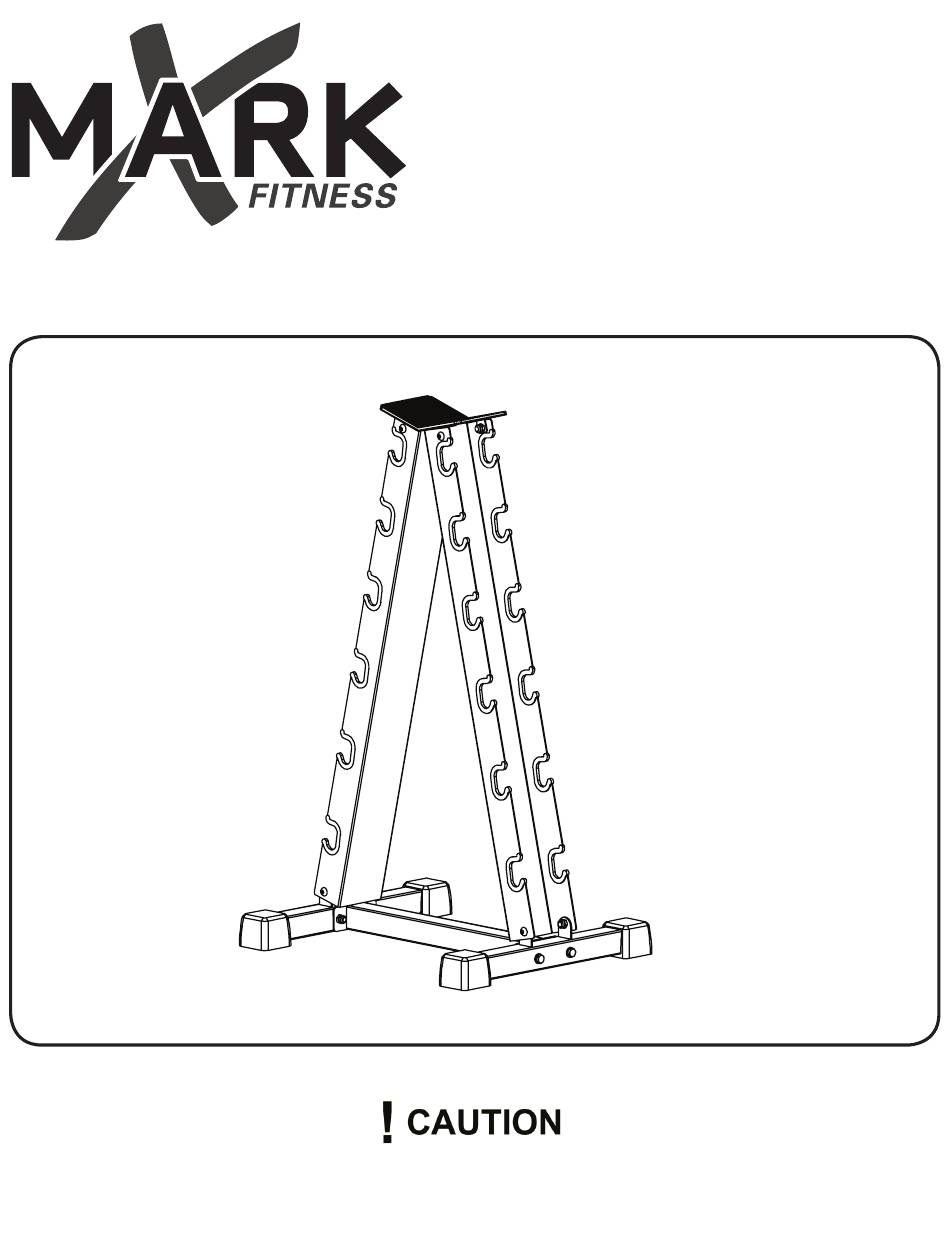

- Page 1 XM-3104 VERTICAL DUMBBELL RACK Owner’s Manual Read all precautions and instructions in this manual before using this equipment. 8/09...
- Page 2 Table of Contents Before You Begin Important Safety Information Assembly/Exploded View Parts List Warranty Information...
- Page 3 This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer.
- Page 4 SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.
- Page 5 Assembly/Exploded View...
- Page 6 Parts List XM-3104 Parts List Key NO. Part No. Description 204053001503 BOTTOM LINK TUBE XM -3104 204053002503 BOTTOM BEAM, XM -3104 204053006503 RACK SUPPORT, XM -3104 204053005503 TOP SUPPORT, XM -3104 306010020718 BOLT, M10X20MM 306010020727 BOLT, M10X65MM 306010023108 WASHER, M10...
- Page 7 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
