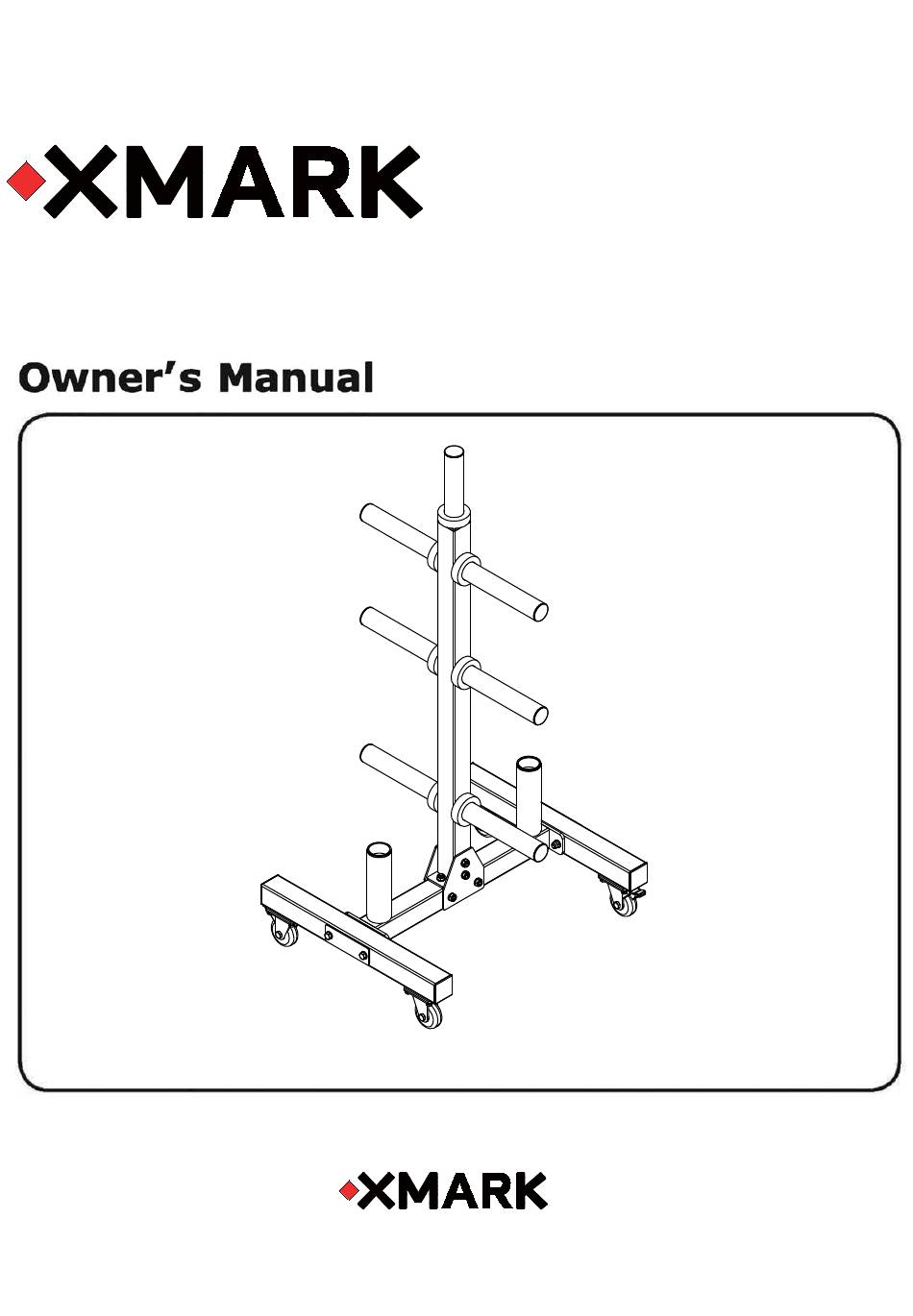

- Page 1 XM-9055 Olympic Plate Tree...
- Page 2 CAUTION! Read all precautions and instructions in this manual before using this equipment. Important Safety Instructions ---------------------------------------------------------------- Instructions------------------------------------------------------------------------------------ Parts List --------------------------------------------------------------------------------------- Exploded View ------------------------------------------------------------------------------- Measurement Guide ------------------------------------------------------------------------ Assembly Instructions ---------------------------------------------------------------------- Assembly -------------------------------------------------------------------------------------- Please visit xmarkfitness.com for warranty information.
- Page 4 1-800-719-4605...
- Page 5 NUMBER DESCRIPTION QUANTITY Beam Side Base Connect Frame Bell Rod Short Bell Rod Square Plug Round Plug Hollow Sleeve Rubber Buffer Splint Wheel with Lock Wheel Bolt M10*30 Bolt M8*16 Bolt M10*80 Bolt M10*85 Spring Washer 8 Washer 8 Washer 10 Lock Nut M 10 Plate...
- Page 6 16 19...
- Page 9 Attach wheels with locks (11#) and wheel (12#) to side bases (2#) using - sixteen M8*16 HHB (14#) - sixteen 8# spring washers (17#) - sixteen 8# washers (18#) Attach connect frame (3#) to side bases (2#) using - four M10*85 HHB (16#) - eight 10# washers (19#) - four M10 lock nuts (20#) - two splints (10#)
- Page 10 Attach tree bell rods (4#) and six rubber buffers (9#) to beam (1#) using - tree M10*30 HHB (13#) - tree 10# washers (19#)
- Page 12 Customer Service: 1-800-719-4605...
