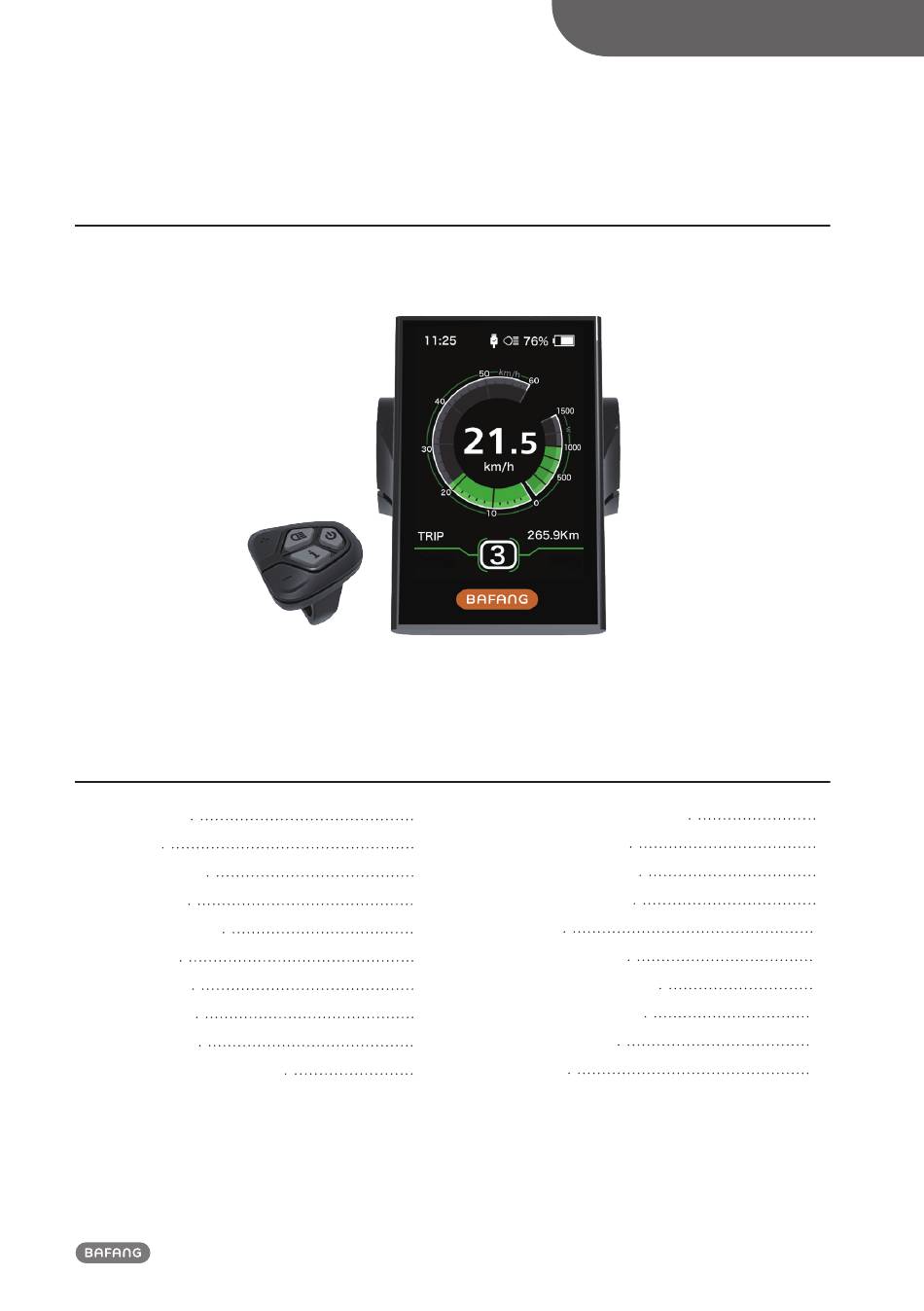

FiSHAW 2020

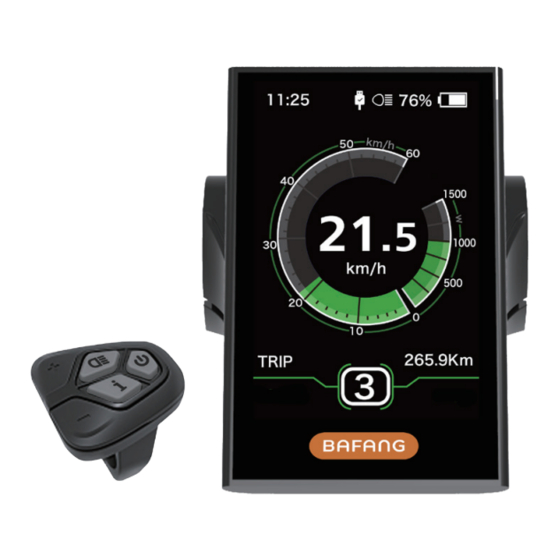

UB600 DISPLAY MANUAL
CONTENT
CONSUMER MANUAL - DP C18.CAN
2
3
4
4
4
5
5
6
6
6
1
CONTENT
6
7
8
8
9
9
9
13
15
18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UB600 and is the answer not in the manual?

Questions and answers

Related Manuals for BAFANG UB600

Summary of Contents for BAFANG UB600

  • Page 1: Table Of Contents

    CONTENT FiSHAW 2020 UB600 DISPLAY MANUAL CONTENT 1 Important Notice 6.3 Mileage mode and Speed mode 2 Introduction 6.4 Headlight /backlight 3 Product Description 6.5 Walk assistance mode 6.6 “SERVICE” indication 3.1 Performance 7 User Setting 3.2 Functions Overview 4 Indication Area 7.1 “SETTING”...

  • Page 2: Important Notice

    FiSHAW 2020 1 IMPORTANT NOTICE • Do not clean the Pedelec with a steam jet, All user must be sure to aware of the high-pressure cleaner or water hose. Water following: may seep into the electrics or drive and • If the fault information cannot be eliminated destroy the equipment.

  • Page 3: Introduction

    INTRODUCTION FiSHAW 2020 2 INTRODUCTION • Name: smart display and controller (HMI) • Cable label identification is as following: • Model: DP C18.CAN • The housing material is PC, the window is DPC18CP10101.0 high hardness glass, as following: PD051205 Note: Contents in Label part are important information of this product.

  • Page 4: Product Description

    FiSHAW 2020 3 PRODUCT DESCRIPTION Functions Overview Performance • Speed indication (including maximum speed • Operating temperature: -20℃~45℃ and average speed, unit switching between • Storage temperature: -20℃~50℃ km and mile). • Water-proof grade: IP65 • Battery capacity indication. • Storage humidity: 30%-70% RH •...

  • Page 5: Indication Area

    INDICATION AREA FiSHAW 2020 4 INDICATION AREA Speed scale display Mode selection: single-trip distance (TRIP) → total distance ODO → maximum speed (MAX) → average speed (AVG) → remaining distance (RANGE) → energy consumption (CALORIES) → time (TIME). (Note: same function needs the Controller supports) Indication for the current remaining capacity of battery.

  • Page 6: Normal Operation

    FiSHAW 2020 6 NORMAL OPERATION Power ON/OFF Press and hold (>2S) to power on the display, the display begin to operate. Press and hold (>2S) again to power off the display. If the "automatic shutdown" time is set to 5 minutes (it can be set in function "Auto Off"), the HMI will be automatically turned off within this set time, When it is not operated.

  • Page 7: Headlight /Backlight

    NORMAL OPERATION FiSHAW 2020 Headlight /backlight Press and hold (>2S) to turn on the backlight as well as headlight. Press and hold (>2S) again to turn off the backlight and the headlight. The brightness of back- light can be set in function“Brightness”. (If the display is turned on in a dark environment, the display backlight/ headlight will be turned on automatically.

  • Page 8: Walk Assistance Mode

    FiSHAW 2020 Walk assistance mode When your Pedelec is motionless, press button until the Walk assistance indicator is dis- played. At this point, long press button, the Pedelec enters the walk assistance mode, the indica- If release the button will stop this,if no any operations within 5s will automatically return to 0 level.

  • Page 9: User Setting

    USER SETTING FiSHAW 2020 7 USER SETTING “SETTING” interface “Display setting” interface After the HMI powered on, briefly In “SETTING” interface, briefly press (<0.5S) press(<0.5S) for two times to enter into to select “Display setting” and then the “SETTING”. Briefly press (<0.5S) briefly press (<0.5S) to confirm and enter to select and then briefly press (<0.5S)
  • Page 10 FiSHAW 2020 7.2.2 “Service Tip” --- turn on/off the 7.2.5 “MAX PAS” --- set riding mode Service indication Briefly press (<0.5S) to select “MAX Briefly press (<0.5S) to select PAS”, and then briefly press (<0.5S) “SERVICE”, and then briefly press (<0.5S) to enter into the interface.
  • Page 11 USER SETTING FiSHAW 2020 7.2.7 “SOC View” --- set indication mode 7.2.9 “AL Sensitivity” --- set light for battery capacity sensitivity Briefly press (<0.5S) to select “SOC Briefly press (<0.5S) to select “AL View”, and then briefly press (<0.5S) Sensitivity”, and then briefly press (<0.5S) enter into the interface.
  • Page 12 FiSHAW 2020 After setting the password, the interface exit back automatically to original interface within two sec- onds. Briefly press for two times (< 0.5S) to exit back to main interface or select “BACK” → “EXIT” to exit back to main interface, as following: Reset password: After setting, the interface “Password”...

  • Page 13: Information" Interface

    USER SETTING FiSHAW 2020 7.2.11 “Set Clock” --- time setting 7.3.2 Check “Battery Info.” Briefly press (<0.5S) to select“Set Briefly press (<0.5S) to select “Bat- Clock”, and then briefly press (<0.5S) tery Info.” and briefly press (<0.5S) confirm. Select hour and minute, and then enter into and check content.
  • Page 14 FiSHAW 2020 7.3.3 Check “Ctrl Info” 7.3.5 Check “Torque Info” Briefly press (<0.5S) to select “Ctrl Briefly press (<0.5S) to select Info”, and then briefly press (<0.5S) “Torque Info”, and then briefly press (<0.5S) confirm. If no data is detected, it displays to confirm.

  • Page 15: Error Code Definition

    ERROR CODE DEFINITION FiSHAW 2020 8 ERROR CODE DEFINITION The HMI can show the faults of Pedelec. When a fault is detected, the icon will be indicated and one of the following error codes will be indicated too. Note: please read carefully the description of the error code. When the error code appears, please first restart the sys- tem.
  • Page 16 FiSHAW 2020 Error Explanation Troubleshooting Stop to ride and bring your Pedelec to your Fault with wheel speed sensor dealer or to a specialist to have the error fixed. Torque signal of Torque sensor is Stop to ride and bring your Pedelec to your fault dealer or to a specialist to have the error fixed.
  • Page 17 ERROR CODE DEFINITION FiSHAW 2020 Error Explanation Troubleshooting Replace the battery, if the problem is not Voltage of single cell is too high eliminated, please contact your dealer or professional. Replace the battery, if the problem is not Temperature of battery is too high eliminated, please contact your dealer or professional.

  • Page 18: Maintenance

    FiSHAW 2020 9 MAINTENANCE • Do not use thinner or other solvents to clean any of the components. Such substances may damage the surfaces. • Do not use hard objects to operate on the button and HMI`s Windows. • Do not use high-pressure water spray in any position of product.
  • Page 19 ERROR CODE DEFINITION FiSHAW 2020 CONSUMER MANUAL – DP C18.CAN...
  • Page 20 FiSHAW 2020 CONSUMER MANUAL – DP C18.CAN...
