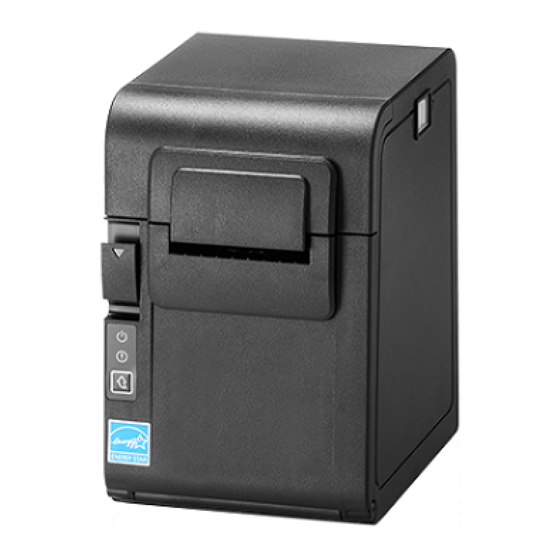

BIXOLON SRP-S200 Network Connection Manual

Linerless printer
Hide thumbs Also See for SRP-S200:

Advertisement

Quick Links

Download this manual
Network Connection Manual
SRP-S200
LINERLESS PRINTER
Ver. 1.00
http://www.bixolon.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRP-S200 and is the answer not in the manual?

Questions and answers

Related Manuals for BIXOLON SRP-S200

Summary of Contents for BIXOLON SRP-S200

  • Page 1 Network Connection Manual SRP-S200 LINERLESS PRINTER Ver. 1.00 http://www.bixolon.com...

  • Page 2: Table Of Contents

    SRP-S200 Table of Contents 1. Manual Information .................... 3 2. Specifications ......................3 3. How to Connect ....................4 3-1 Checking Network Setting ........................4 3-1-1 LAN .............................. 4 3-1-2 LAN Setting Values ........................5 4. Ethernet Test by using Windows Test Page ............6 5.

  • Page 3: Manual Information

    BIXOLON. BIXOLON has no liability for loss or damage arising from or relating to your use of the information in the document. © BIXOLON Co., Ltd. All rights reserved.

  • Page 4: How To Connect

    SRP-S200 3. How to Connect LAN can be configured through the printer’s LAN interface. 3-1 Checking Network Setting 3-1-1 LAN Cover Open Lever FEED Button After the printer has finished booting, open the printer cover and press and hold the FEED Button.

  • Page 5: Lan Setting Values

    SRP-S200 Checking Interface Setting 0: Exit 1: LAN Information Print 2: LAN Factory Reset and Reboot Printer 3 or more: None Select Modes by Feed button control as below. Step 1. Short-press as many times as The mode number to choose.

  • Page 6: Ethernet Test By Using Windows Test Page

    Operating systems that allow you to use the Windows printer driver are Windows, XP, Server 2003, VISTA, 2008 Server, 7, 8, 10. You can download the latest version of Windows driver from Note our home page. (www.bixolon.com) 1) Double-click the Windows Driver installation file. 2) Click Install. Ver. 1.00...
  • Page 7 SRP-S200 3) Select Installation and click Next.. 4) Select Model Name and click Next. Ver. 1.00 - 7 -...
  • Page 8 SRP-S200 5) Select Ethernet and click Add TCP/IP Port. 6) Enter the IP address and port number, and then click Next. Ver. 1.00 - 8 -...
  • Page 9 SRP-S200 7) Click Next. 8) Click Next. Ver. 1.00 - 9 -...
  • Page 10 SRP-S200 9) Click Next. 10) Click Finish. Ver. 1.00 - 10 -...
  • Page 11 SRP-S200 11) Open the printer properties window in the Windows OS. (1) Installing on Windows XP / Server 2003 ※ Control Panel – Printers and Faxes. (2) Installing on Windows VISTA / Server 2008 / 7 / 8 / Server 2012 / 10 ※...
  • Page 12 SRP-S200 14) Click Print Test Page and check printing status. Proper installation of the driver is indicated if the test page is printed normally. Ver. 1.00 - 12 -...

  • Page 13: Troubleshooting

    SRP-S200 5. Troubleshooting - IP Address Check the band of the IP Address. Check whether the bands of Check network the printer and the AP (or wireless terminals) are the same. setting The first three digits of the four digit value of the IP address (Refer to must be the same.
  • Page 14 SRP-S200 When you see “Request timed out.” as shown below, it means that there is no collision. The corresponding IP can be used. On the other hand, if there is a reply as shown below, then the corresponding IP is used by another network terminal and it cannot be used for the printer IP.
  • Page 15 It is strictly prohibited to copy, store, and transmit the whole or any part of the manual and any property of the product without the prior written approval of BIXOLON Co., Ltd. The information contained herein is designed only for use with this BIXOLON product.
