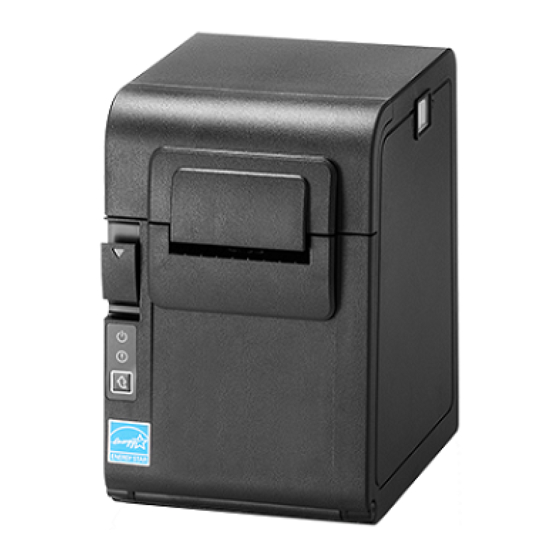

- Page 1 User’s Manual SRP-S200 LINERLESS PRINTER Ver. 1.00 http://www.bixolon.com...
- Page 2 SRP-S200 Introduction SRP-S200 printers have been designed to be connected to various types of electronic devices such as POS (Point Of Sales), and computer peripheral devices. ※ The main features of the printer are as follows 1. LINERLESS PRINTER 2. direct thermal method printing 3.
- Page 3 SRP-S200 Safety Information Warning: Warnings must be heeded carefully in order to prevent serious physical harm. Caution: Cautions must be heeded in order to prevent minor injuries, equipment damage, or data loss. Symbol Information DC (Direct current) Error, Warning Paper Feeding...
-
Page 4: Table Of Contents
SRP-S200 Table of Contents 1. Installing Printer and Getting Started ............... 5 1-1 Unpacking ................................5 1-2 Interface ................................6 1-2-1 USB Built-in ............................6 1-2-2 Ethernet Built-in ........................... 7 1-2-3 Serial Interface (RS-232C) ........................8 1-3 Connecting Power .............................. 9 1-4 Reconfiguration of Printer .......................... -
Page 5: Installing Printer And Getting Started
SRP-S200 1. Installing Printer and Getting Started 1-1 Unpacking • Check the following contents list, and contact your dealer for assistance if any item is missing or incorrect. - Product SRP-S200 - Standard Components Installation Guide Partition Power Cord USB A-B Cable... -
Page 6: Interface
SRP-S200 1-2 Interface • Connect the printer to the host computer using the right interface cable that complies with the specifications of the interface 1-2-1 USB Built-in USB Port Pin No. Signal Name Designation (Color) Function Shell Shield Drain Cable... -
Page 7: Ethernet Built-In
SRP-S200 1-2-2 Ethernet Built-in Ethernet Port Pin No. Signal Name Designation (Color) Function WHITE ORANGE Transmit + ORANGE Transmit - WHITE GREEN Center tap BLUE WHITE BLUE GREEN WHITE BROWN Receive + BROWN Receive - Refer to the utility and network connection manual for Note Interface connection information. -
Page 8: Serial Interface (Rs-232C)
SRP-S200 1-2-3 Serial Interface (RS-232C) Serial Port * Printer Side Pin No. Signal Name Direction Function Output Transmit Data Input Receive Data Output Ready To Send Input Clear To Send Signal Ground After turning off the power switch of printer, connect and disco Caution nnect the communication cable. -
Page 9: Connecting Power
SRP-S200 1-3 Connecting Power 1) Make sure the product is turned off before connecting the power. 2) Connect the power cord with the flat side pointing to the outside of the printer, as shown in the diagram below. Power Port Power cord Ver. - Page 10 SRP-S200 - Only use a power supply provided by Bixolon. Bixolon shall bear no responsibility for damage caused by using a third-party power supply. - Check the power supply’s label to check its electronic specs. - When removing the power supply, make sure you have a firm grasp of the plug terminal of the power cord and the printer and pull horizontally.
-
Page 11: Reconfiguration Of Printer
SRP-S200 1-4 Reconfiguration of Printer • This product does not support Dip Switch. In order to change the product’s configuration, use either the virtual memory switch utility or the virtual memory switch management function when performing a self-diagnosis. • Please refer to the Utility and Service Manual for more information. -
Page 12: Installing & Replacing Paper
SRP-S200 1-5 Installing & Replacing Paper 1) Open the paper roll cover by pulling the Cover-Open Lever. Do not open the print cover while the printer is operating, Caution otherwise the printer may be damaged. Ver. 1.00 - 12 -... - Page 13 SRP-S200 2) Remove the empty paper roll and replace with a new one as shown in the image. Check the orientation of the roll paper when inserting it into the printer. Caution Ver. 1.00 - 13 -...
- Page 14 SRP-S200 3) Pull out a small amount of paper as shown in the picture, and close the cover. - When closing the cover, hold down the center of printer cover firmly so that paper roll is loaded correctly. Caution - Make sure to use the specified paper only.
-
Page 15: Recommended Papers
SRP-S200 1-6 Recommended Papers Sticky(Restick) - Iconex Sticky Media(USA): Classic: 9023-1823, 9023-1397(58mm), 9023-1233, 9023-1818(40mm) Classic High Tack: 9023-1500(58mm), 9023-1258(40mm) Ultralite: 9023-1410(58mm), 9023-1865(40mm) MAX International Converters, Inc. MAXStick Products Ltd(USA) - Use of papers other than those recommended above may damage Auto-Cutter, TPH or degrade the printing quality and our company Is not responsible for the damage caused by non- recommended papers. -
Page 16: Removing Paper Jam
SRP-S200 1-7 Removing Paper Jam 1) When a paper jam occurs, turn the printer OFF and then back ON, open the cover, and remove the jammed paper. ※ In case of a minor jam, it may be possible that the operating blade returns to the original position and cover can be opened simply by turning the printer OFF and then back ON. -
Page 17: Using Printer Functions
SRP-S200 1-8 Using Printer Functions • Power (Button) - The POWER light is on whenever the printer is on. • Error (Indicator Lamp) - Red light will be on in various error conditions such as out of paper, cover open, etc. -
Page 18: Mounting Partition(40Mm)
SRP-S200 1-9 Mounting Partition(40mm) • Install the Partition in the direction of the arrow as shown below. Partition After using narrower papers (e.g. 40mm width) than the maximum paper width of 58mm, please do not use any wider ones as it might Caution affect printing quality due to uneven platen roller abrasion. -
Page 19: Self-Test
SRP-S200 2. Self-Test The self-test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. The self-test procedure is as follows: 1) Make sure paper roll has been installed properly. 2) Turn on the power while holding down the FEED button and the self-test begins. - Page 20 SRP-S200 • If “VMSM Selection” is selected (1) The following lines will be printed when the VMSM opens. ** VMSM Selection ** 0 : Exit and reboot printer 1 : Print current settings 2 : Set Print Density 3 : Set Print Speed...
-
Page 21: Hexadecimal Dumping
SRP-S200 3. Hexadecimal Dumping This function allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands. -
Page 22: Cleaning Printer
SRP-S200 4. Cleaning Printer Paper dust inside the printer may lower the print quality. In this case clean the printer as follows. When sticky or re-stick paper is used, it is recommended to clean it at least once per 30 rolls. - Page 23 SRP-S200 When cleaning the printer head, make sure that cleaning solutions such as alcohol for medical do not penetrate the print Caution While the printer is operating, the print-head gets very hot, so turn off the power and let it cool down completely.
-
Page 24: Specifications
SRP-S200 5. Specifications Printing Method Thermal printing Dot Density 203 dpi (8dots/mm) 58mm 40mm Paper Width 54mm 32mm Printing Width Recommended Paper Width 57.5 ±0.5mm, 39.5 ±0.5mm 36(Font A), 48(Font B), 48(Font C) No. of Characters per Line (Default Value) ※... - Page 25 It is strictly prohibited to copy, store, and transmit the whole or any part of the manual and any property of the product without the prior written approval of BIXOLON Co., Ltd. The information contained herein is designed only for use with this BIXOLON product.
- Page 26 SRP-S200 Compliance information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 27 SRP-S200 Waste Electrical and Electric Equipment (WEEE) This marking shown on the product or its literature, indicates that is should not be disposed with other household wastes at the end of its working life, To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
- Page 28 SRP-S200 Revision history Ver. Date Page Description 1.00 20.05.21 Ver. 1.00 - 28 -...
