- Page 1 User’s Manual SRP-S200 LINERLESS PRINTER Ver. 2.00 www.bixolon.com...
-
Page 2: Copyright
It is strictly prohibited to copy, store, and transmit the whole or any part of the manual and any property of the product without the prior written approval of BIXOLON Co., Ltd. The information contained herein is designed only for use with this BIXOLON product. - Page 3 SRP-S200 Warning Hazardous moving parts Keep fingers and other body parts away Pull the print head lever can be stop all moving parts. IEC 60417-6057 (2011-05) for other moving parts. Mise en garde Les appareils électroniques, tels que les imprimantes, risquent d'être endommagés par l'électricité...
- Page 4 SRP-S200 Compliance information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 5 SRP-S200 Waste Electrical and Electric Equipment (WEEE) This marking shown on the product or its literature, indicates that is should not be disposed with other household wastes at the end of its working life, To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
-
Page 6: Warning & Caution
Do not connect multiple products to a Only use authentic products from single or faulty power outlet. Use only BIXOLON. The company will not provide grounded power outlets that meet the post-sale support for damaged or other industry standard. Noncompliance may quality issues that any fake cause electric shock or fire. - Page 7 Do not place heavy product, please contact the original objects, liquids, or metals on the place of purchase or through product. This could cause damage to BIXOLON website’s product repair the product or a fire. page (www.bixolon.com). Ver. 2.00 - 7 -...
-
Page 8: Manual Introduction
SRP-S200 Manual Introduction This manual provides basic information on printers and provides ways to install, use, and check them. In order to protect the safety of users and prevent property damage, be fully familiar with this manual before using the product. Please use it. -
Page 9: Printer Introduction

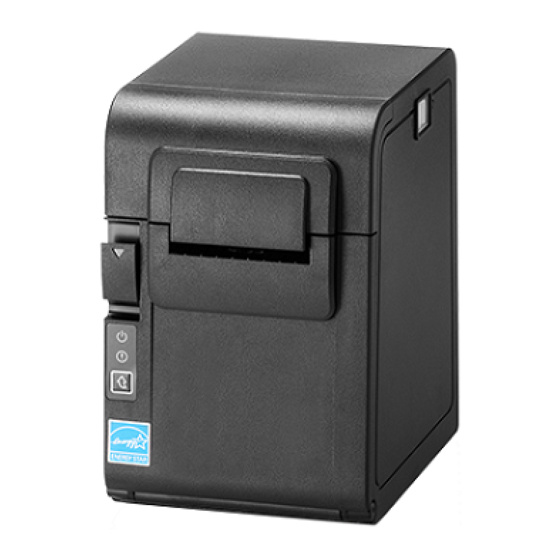

SRP-S200 Printer Introduction The SRP-S200 is the world's first 2-inch(58 mm) thermal linerless printer which is ideal for light-adhesive labelling applications. Thanks to its compact design with IP23 rating, the SRP-S200 is ideal for use in the small, compact kitchen environments. Supporting print speeds of up to 150mm/sec and 2 widths of media. -
Page 10: Table Of Contents
SRP-S200 Table of Contents Copyright ........................... 2 WARNING & CAUTION ...................... 6 Manual Introduction ......................8 Printer Introduction ......................9 1. Preparation ......................... 11 2. Product Part Names ....................12 2-1 Printer Part Names ......................12 2-2 Interface Part Names ..................... 13 2-2-1 USB Interface ...................... -
Page 11: Preparation
SRP-S200 1. Preparation • If there is any part missing, please contact the place of purchase. • The actual part may look different from the image. SRP-S200 Standard Components Power Cord USB A-B Cable Partition Installation Guide Optional Components Serial Cable (9pin - 9pin) Ver. -
Page 12: Product Part Names
SRP-S200 2. Product Part Names 2-1 Printer Part Names Manual Cutter Power Switch Cutter Cover Cover Open Lever Controller Printer Cover Ver. 2.00 - 12 -... -
Page 13: Interface Part Names
SRP-S200 2-2 Interface Part Names • Connect the printer to the host computer using the right interface cable that complies with the specifications of the interface. 2-2-1 USB Interface USB Port Pin No. Signal Name Designation (Color) Function Shell Shield... -
Page 14: Ethernet Interface
If power is on, your data may be lost. Refer to the utility and network connection manual for Interface connection information. The network connection manual is on the BIXOLON website (www.bixolon.com) We're offering it. Ver. 2.00 - 14 -... -
Page 15: Serial Interface (Rs-232C)
SRP-S200 2-2-3 Serial Interface (RS-232C) Serial Port * Printer Side Pin No. Signal Name Direction Function Output Transmit Data Input Receive Data Output Ready To Send Input Clear To Send Signal Ground Connect or disconnect the communication cable while the printer power is off. -
Page 16: Installation & Usage
SRP-S200 3. Installation & Usage 3-1 Printer Installation Placings - Allow sufficient space around the printer for proper ventilation. - Do not place objects close to the back or bottom of the printer, which may hinder the air circulation. - Install the printer on a flat and level surface. -
Page 17: Turn On The Power
SRP-S200 3-2 Turn on the Power 1) After turning the printer off, connect the power cord jack to the printer’s power port. Power Port Power Cord Jack 2) When connecting the power cord jack, ensure that it is inserted in the correct direction. - Page 18 4) Press the “ON” switch to turn on the printer. - Be sure to turn off the printer and connect or disconnect the cable. - Only use a power supply provided by BIXOLON. BIXOLON shall bear no responsibility for damage caused by using a third-party power supply.
-
Page 19: Inserting And Changing The Paper Roll
SRP-S200 3-3 Inserting and changing the paper roll Use paper roll that complies with the specifications. If you use a paper roll including paper core attached to paper, the paper may not be properly recognized as paper Empty due to not proper releasing of paper. - Page 20 SRP-S200 2) Replace with a new one as shown in the image. 3) Check the orientation of the roll paper when inserting it into the printer. Ver. 2.00 - 20 -...
- Page 21 SRP-S200 4) Pull out a small amount of paper as shown in the picture, and close the cover. When closing the cover, hold down the center of printer cover firmly so that paper roll is loaded correctly. Ver. 2.00 - 21 -...
-
Page 22: Using Controller
SRP-S200 3-4 Using Controller Explanation POWER LED The Power LED light is on whenever the printer is on. Error LED is on when there is an error ERROR LED such as no paper roll, open cover, etc. Press the Feed button once to output one line of the Feed Button paper roll. -
Page 23: Mounting Partition
SRP-S200 3-5 Mounting Partition • When using 40mm roll paper, mount the partition in the direction of the arrow as shown below. Install the Partition in the direction of the arrow as shown below. Partition - After using narrower papers (e.g. 40mm width) than the maximum paper width of 58mm, please do not use any wider ones as it might affect printing quality due to uneven platen roller abrasion. -
Page 24: Printer Setting Change
SRP-S200 4. Printer Setting Change This product does not support Dip Switch. In order to change the product’s configuration, use either the virtual memory switch utility or the virtual memory switch management function when performing a self-diagnosis. - Turn the product power ON/OFF by using the virtual memory switch utility. -
Page 25: Self-Test
SRP-S200 5. Self-Test The self-test checks whether the printer has any problems. If the self-diagnostics reveal no error in the printer, please see other device or software. If the printer does not run normally, please contact the place of purchase. - Page 26 SRP-S200 (1) If “Continuous SELF-TEST” is selected ① Press the Feed button for less than one second to print the preset page. ② The self test ends automatically as it prints the following line and cuts the paper. *** COMPLETED *** ③...
- Page 27 SRP-S200 (2) If “VMSM Selection” is selected The following lines will be printed when the VMSM opens. ** VMSM Selection ** 0 : Exit and reboot printer 1 : Print current settings 2 : Set Print Density 3 : Set Print Speed...
-
Page 28: Hexadecimal Dumping
SRP-S200 6. Hexadecimal Dumping This function allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands. -
Page 29: Maintenance
SRP-S200 7. Maintenance 7-1 Paper Jam • Never force the paper out in the event of a paper jam. If paper is stuck, turn the printer ON/OFF and open the cover to remove the crumpled paper inside the printer. If the Printer Cover will not open, please follow the following instructions. -
Page 30: Cleaning Printer
SRP-S200 7-2 Cleaning Printer • The presence of dust, foreign matter, adhesive matter, or other pollutants inside the printer’s head and internal capacity may undermine printing quality. Periodic cleaning (every 3 months at minimum) is recommended to maintain print quality. When sticky or re-stick paper is used, it is recommended to clean it at least once per 30 rolls. -
Page 31: Specifications
SRP-S200 8. Specifications 8-1 Printer Specifications Printing Method Thermal printing Dot Density 203 dpi (8dots/mm) Paper Width 58mm 40mm Printing Width 54mm 32mm Recommended Paper Width 57.5 ±0.5mm, 39.5 ±0.5mm 36(Font A), 48(Font B), 48(Font C) No. of Characters per Line (Default Value) ※... -
Page 32: Recommended Papers
- The use of papers other than those recommended above may cause damage to the printer’s TPH or degrade the printing quality. BIXOLON is not responsible for the damage caused by non-recommended papers. - If you have to use other products, we recommend that you use papers with a similar level of quality to the recommended ones. - Page 33 SRP-S200 Revision history Ver. Date Description 1.00 20-05-2022 2.00 07-11-2023 New form Ver. 2.00 - 33 -...
