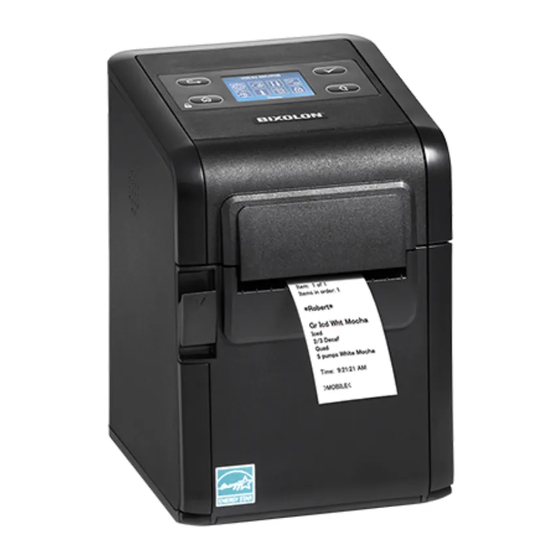

BIXOLON SRP-S3000 User Manual

Linerless pritner
Hide thumbs Also See for SRP-S3000:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
LINERLESS PRITNER
Ver. 1.00
SRP-S3000
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP-S3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON SRP-S3000

Summary of Contents for BIXOLON SRP-S3000

  • Page 1 User’s Manual LINERLESS PRITNER Ver. 1.00 SRP-S3000 http://www.bixolon.com...
  • Page 2 SRP-S3000 Introduction SRP-S3000 printers have been designed to be connected to various types of electronic devices such as POS (Point Of Sales), and computer peripheral devices. ※ The main features of the printer are as follows 1. LINERLESS PRINTER 2. Low-noise thermal transfer method printing 3.
  • Page 3 SRP-S3000 Safety Information Warning: Warnings must be heeded carefully in order to prevent serious physical harm. Caution: Cautions must be heeded in order to prevent minor injuries, equipment damage, or data loss. Symbol Information DC (Direct current) Error, Warning Paper Feeding...

  • Page 4: Table Of Contents

    SRP-S3000 Table of Contents 1. Installing Printer and Getting Started ................. 5 1-1 Unpacking ..........................5 1-2 Interface..........................6 1-2-1 USB Interface (Device Function USB B Type Connector) ........6 1-2-2 USB Interface (HOST Function, USB A Type Connector) ........7 1-2-3 Ethernet Interface ....................

  • Page 5: Installing Printer And Getting Started

    SRP-S3000 1. Installing Printer and Getting Started 1-1 Unpacking • Check the following contents list, and contact your dealer for assistance if any item is missing or incorrect. - Product SRP-S3000 - Standard Components Installation Guide Power Cord USB A-B Cable...

  • Page 6: Interface

    SRP-S3000 1-2 Interface • Connect the printer to the host computer using the right interface cable that complies with the specifications of the interface 1-2-1 USB Interface (Device Function USB B Type Connector) USB B Port (Device Function) Pin No.

  • Page 7: Usb Interface (Host Function, Usb A Type Connector)

    SRP-S3000 1-2-2 USB Interface (HOST Function, USB A Type Connector) USB A Port(HOST Function) Pin No. Signal Name Designation (Color) Function Shell Shield Drain Cable Frame Ground VBUS Host Power WHITE Data Line (D-) GREEN Data Line (D+) BLACK Signal Ground USB Interface can connect to the peripheral devices.

  • Page 8: Ethernet Interface

    SRP-S3000 1-2-3 Ethernet Interface Ethernet Cable Port Pin No. Signal Name Designation (Color) Function WHITE ORANGE Transmit + ORANGE Transmit - WHITE GREEN Center tap BLUE WHITE BLUE GREEN WHITE BROWN Receive + BROWN Receive - Refer to the utility and network connection manual for Note Interface connection information.

  • Page 9: Serial Interface(Rs-232C)

    SRP-S3000 1-2-4 Serial Interface(RS-232C) Serial Cable Port Pin No. Signal Name Direction Function Output Transmit Data Input Receive Data Output Ready To Send Input Clear To Send Signal Ground After turning off the power switch of printer, connect and disco Caution nnect the communication cable.

  • Page 10: Wireless Lan Interface (Option)

    SRP-S3000 1-2-5 Wireless LAN Interface (Option) 1) Wireless LAN Communication Specifications Item Specifications Frequency 2.4GHz / 5GHz Protocol 802.11 a/b/g/n 2) Connecting Wireless LAN Printer can be connected to terminal devices with Bluetooth communication Capability. (PDA, PC, smartphone, tablet PC, etc.)

  • Page 11: Cash Drawer Port

    SRP-S3000 1-3 Cash drawer Port • Connect the cash drawer cable to the drawer kick-out port on the rear side of the printer. Drawer Kick-out Port Pin No. Signal Name Direction Frame Ground Drawer Kick-out Drive Signal 1 Output Drawer Open/Close Signal...
  • Page 12 SRP-S3000 - The open signal time for the cash drawer should not exceed 0.8 seconds. After opening the cash drawer, make sure to idle for at least 3.2 seconds (at least 4 times that of the open signal time) before operating it.

  • Page 13: Connecting Power Supply

    SRP-S3000 1-4 Connecting Power Supply 1) Make sure the product is turned off before connecting the power supply. 2) Connect the power cable with the flat side pointing to the outside of the printer, as shown in the diagram below.
  • Page 14 SRP-S3000 - Only use a power supply provided by Bixolon. Bixolon shall bear no responsibility for damage caused by using a third-party power supply. - Check the power supply’s label to check its electronic specs. - When removing the power supply, make sure you have a firm grasp of the plug terminal of the power cable and the printer and pull horizontally.

  • Page 15: Reconfiguration Of Printer

    SRP-S3000 1-5 Reconfiguration of Printer • This product supports virtual memory switch change the use the virtual memory switch utility. Use virtual memory switch management function for self-diagnosis. - Use the Unified Utility or LCD to change the virtual memory switch settings.

  • Page 16: Installing & Replacing Paper

    SRP-S3000 1-6 Installing & Replacing Paper 1) Open the paper roll cover by Pulling the Cover-Open Lever. Do not open the print cover while the printer is operating, Caution otherwise the printer may be damaged. Ver. 1.00 - 16 -...
  • Page 17 SRP-S3000 2) Remove the empty paper roll and replace with a new one as shown in the image. Check the orientation of the roll paper when inserting it into the printer. Caution Ver. 1.00 - 17 -...
  • Page 18 SRP-S3000 3) Pull out a small amount of paper as shown in the picture, and close the cover. - When closing the cover, hold down the center of printer cover firmly so that paper roll is loaded correctly. Caution - Make sure to use the specified paper only.

  • Page 19: Recommended Papers

    SRP-S3000 1-7 Recommended Papers - Iconex Classic: 9023-1253, 9023-1232(80mm), 9023-1823, 9023-1397(58mm), 9023-1233, 9023-1818(40mm) Classic High Tack: 9023-1254(80mm), 9023-1500(58mm), 9023-1258(40mm) Classic High Temp: 9023-1267, 9023-1463 (80mm), 9023-1269(40mm) Ultralite: 9023-1866(80mm), 9023-1410(58mm), 9023-1865(40mm) Classic High Tack Plus: 9023-1846(80mm) Linerless Extreme(Snag Resistant): 9023-1873, 9023-1708(40mm)

  • Page 20: Removing Paper Jam

    SRP-S3000 1-8 Removing Paper Jam 1) When a paper jam occurs, turn the printer OFF and then back ON, open the cover, and remove the jammed paper. ※ In case of a minor jam, it may be possible that the operating blade returns to the original position and cover can be opened simply by turning the printer OFF and then back ON.

  • Page 21: Using Printer Functions

    SRP-S3000 1-9 Using Printer Functions • Menu Navigation Navigate the LCD menu - Press the button to navigate from the top-left to the bottom-right corner. • Menu Select Select an item in the LCD menu - Press the button to select an LCD menu item or save the settings to the printer.

  • Page 22: Mounting Partition(40,58Mm)

    SRP-S3000 1-10 Mounting Partition(40,58mm) • Install the Partition in the direction of the arrow as shown below. The Partition shape is the same and is used separately for each paper size (40,58mm). The position to secure the partition varies depending on the type of paper.

  • Page 23: Self-Test

    3) The printer settings will be printed on the first page followed by interface information. 4) The self-test process ends automatically after printing wireless interface information. • Self-test print page sample BIXOLON SRP-S3000 CONFIGURATION FIRMWARE VERSION : V01.00 STD 010118 EMULATION : SLCS & BPL-Z & BPL-C PRINT DARKNESS...
  • Page 24 RF INTERFACE STATUS (BT) RF INTERFACE STATUS (WLAN) BLUETOOTH F/W VER : 2.0.4 WLAN F/W VER : 02.02(4002) MAC ADDRESS MAC ADDRESS FRIENDLY NAME : SRP-S3000 SYSTEM NAME : SRP-S3000 MODE : CLASSIC NETWORK MODE : SOFT AP AUTH & ENCRYPT : ENABLED FREQUENTY : (PRIORITY)2.4GHZ/5GHZ...

  • Page 25: Lcd Menu

    SRP-S3000 3. LCD Menu You can check the printer’s status and settings on the LCD screen. • Icons on top Icon Description Bluetooth enabled, host device not connected Bluetooth enabled, host device connected Wireless LAN enabled, wireless LAN signal strength...
  • Page 26 SRP-S3000 • Main manu icons Icon Description View/change printer settings 1) Communication 2) Media 3) Sensor 4) Language 5) Sound 6) Brightness Media settings 1) Print speed 2) Print density 3) Headlock 4) Position - Cut - Printing position - Orientation...
  • Page 27 SRP-S3000 Icon Description Taken sensor settings 1) Turn ON/OFF Taken sensor 2) Set Taken sensor operation pages Printer information 1) Version - Printer, WLAN, Bluetooth 2) Bluetooth 3) Wireless LAN 4) Wired LAN 5) Serial 6) Use 7) Repair View/change sensor settings...

  • Page 28: Cleaning Printer

    SRP-S3000 4. Cleaning Printer Paper dust inside the printer may lower the print quality. In this case clean the printer as follows. 1) Open the printer cover and remove the paper currently in use. 2) Residue or contamination of printer head should be wiped out by alcohol for medical.
  • Page 29 SRP-S3000 3) Clean the paper sensor and paper roller with a cotton swab or a dry cloth. 4) Clean the auto-cutter blade with a cloth wet with medical alcohol. 5) Insert a paper roll and close the printer cover. When cleaning the printer head, make sure that cleaning...

  • Page 30: Specifications

    SRP-S3000 5. Specifications Printing Method Thermal printing Dot Density 203 dpi (8dots/mm) Paper Width 72mm, 48mm, 32mm Printing Width 80mm, 58mm, 40mm Application BXL/POS SLCS, BPL-Z™, BPL-C™ 10 SLCS Resident Bitmap Font A : 12x24(48CPL) Fonts Font B : 9x17 (64CPL)
  • Page 31 SRP-S3000 Operating: 0 ~ 40 ℃ Temperature Storage: -20 ~ 60 ℃ Environment Operating: 10 ~ 80 % RH Condition Humidity Storage: 10 ~ 90 % RH Paper excluded Label: 30 Km Printer Head *) Restick, Linerless Extreme: 100 Km...
  • Page 32 It is strictly prohibited to copy, store, and transmit the whole or any part of the manual and any property of the product without the prior written approval of BIXOLON Co., Ltd. The information contained herein is designed only for use with this BIXOLON product.
  • Page 33 SRP-S3000 Compliance information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 34 SRP-S3000 Waste Electrical and Electric Equipment (WEEE) This marking shown on the product or its literature, indicates that is should not be disposed with other household wastes at the end of its working life, To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
  • Page 35 SRP-S3000 Revision history Ver. Date Page Description 1.00 28.01.21 Ver. 1.00 - 35 -...
