8.3

Load the Updated Configuration File

8.3.1

Using the FS-GUI to Load a Configuration File

•
In the main menu of the FS-GUI screen, click "Setup", then "File Transfer" and finally "Update".
•
Browse and select the .csv file, open, then click "Submit".
•
Once download is complete, a message bar will appear confirming that the configuration was
updated successfully.
•
Click the System Restart Button to put the new file into operation.
NOTE: It is possible to do multiple downloads to the ProtoNode before resetting it.

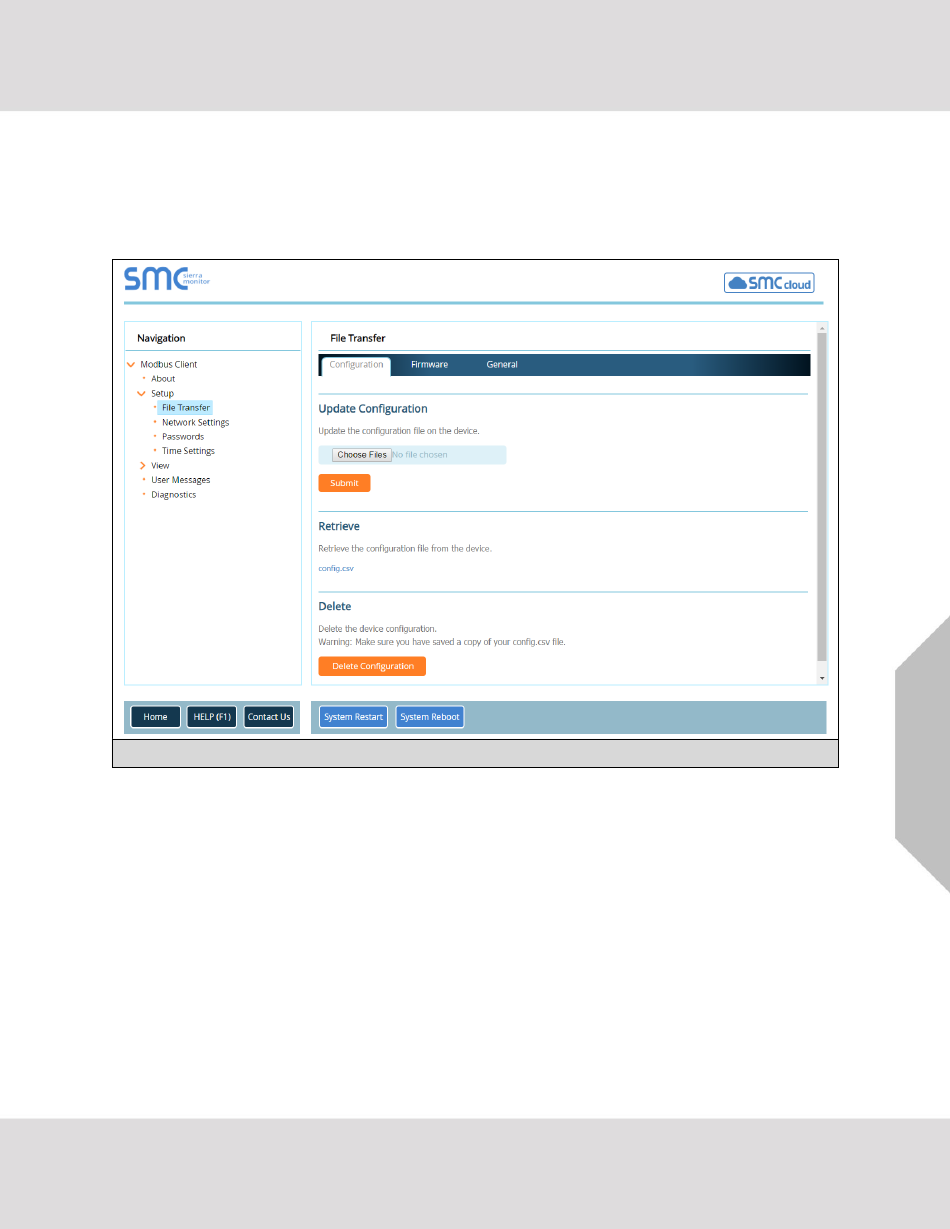

Figure 20: FS-GUI Loading Files
