Network Settings

7
7.1

Using FS-GUI to Input Network Settings

To navigate from the FS-GUI page to the Network Settings page follow the below instructions:
•
Find the Navigation tree across the left side of the screen.
•
Click the orange arrow next to the ProtoNode CN number and title to expand the tree.
•
Click on the orange arrow next to Setup to expand the tree.
•
Click on Network Settings.

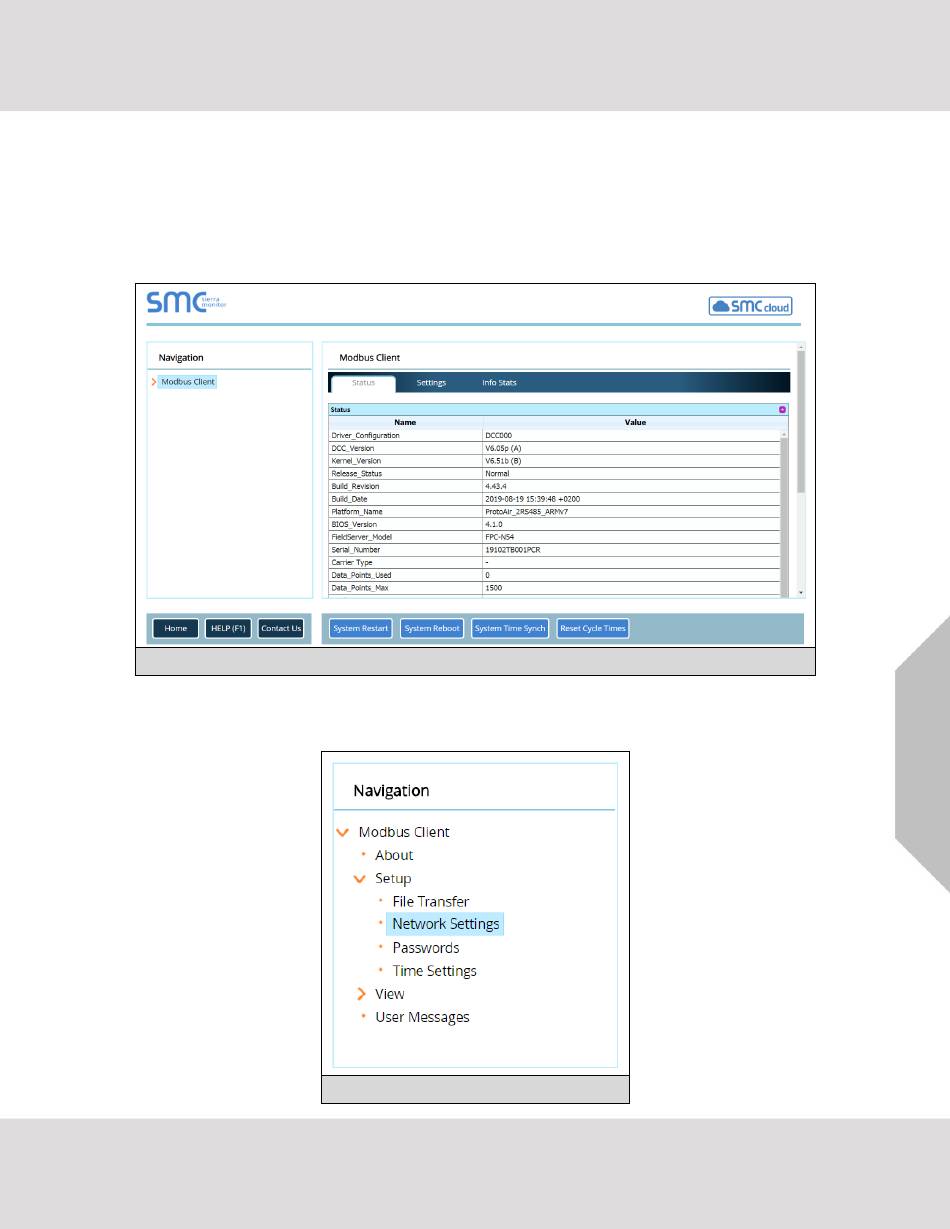

Figure 15: FS-GUI Page

Figure 16: FS-GUI Navigation Panel
