Power up the ProtoNode

4
Check power requirements in the table below:
Power Requirement for ProtoNode External Gateway
ProtoNode Family
FPC – N54 (Typical)
NOTE: These values are 'nominal' and a safety margin should be added to the power supply
of the host system. A safety margin of 25% is recommended.
Apply power to the ProtoNode as shown below in
with the specifications provided in Section 10.4.
•
The gateway accepts 9-30VDC or 24VAC on pins L+ and N-.
•
Frame GND should be connected.
Power to
Gateway
Power In (+)
Power In (-)
Frame Ground

Figure 6: Required Current Draw for the Gateway

Figure
Gateway
Pin Label
L+
N-
FG

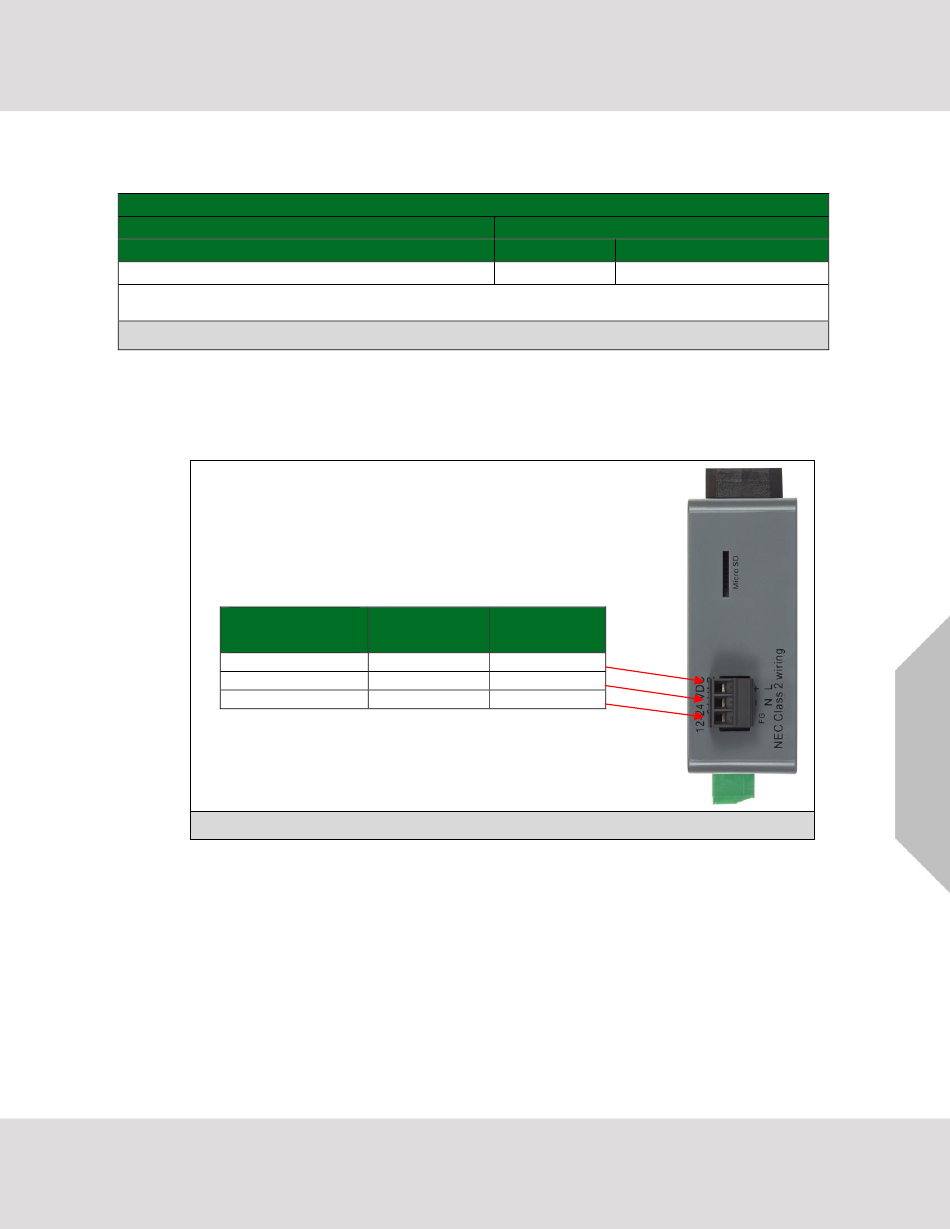

Figure 7: Power Connections

ProtoNode Start-up Guide
Current Draw Type
12VDC 24VDC/AC
250mA 125mA
7. Ensure that the power supply used complies
Pin
Assignment
V +
V -
FRAME GND
Power up
