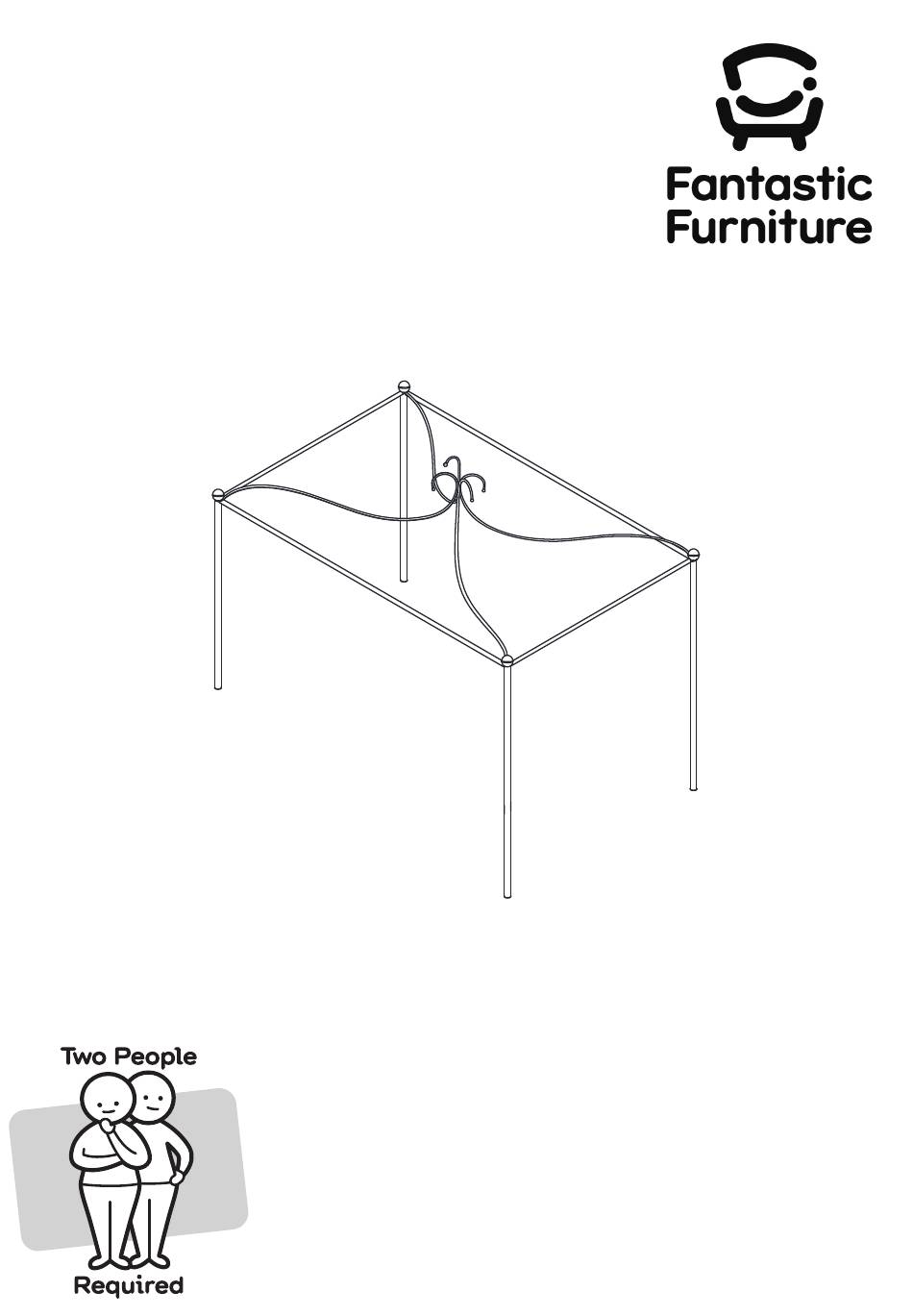

- Page 1 Version 1.0 Giselle 4 Post Extension Kit fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten screws Identify and lay out all of the components before you begin assembl y. until the item is fully assembled. -
Page 4: What You Need
What you need to assemble the product 4 x (P8) 2 x (P3) 2 x (P4) 4 x Finials (P8) from Giselle Single Bed Parts List 2 x (P1) 2 x (P2) Parts List: Box 1: 2 x Short Posts (P1); 2 x Long Posts (P2);... - Page 5 Step 1 Begin with an assembled Giselle Single Bed (sold separately). Remove the 4 x finials (P8) and the 4 x headless bolts (H1) from the corner posts by unscrewing in an anti-clockwise direction and set aside. Step 2 (P1/P2) (P1) (Headboard/Footboard) Screw in, by rotating clockwise 2 x short posts (P1) into the cornerposts of the headboard until...
- Page 6 Step 3 (P1) Screw in a headless bolt (H1) into the top of each of the 4 cornerposts by rotating clockwise. Step 4 (P3) (P1) (P4) (P1) (P4) (P3) (P3) (P2) (P2) (P1/P2) Place a short cross bar (P3) across each end of the bed, aligning the holes to the bolts on the cornerposts (P1 &...
- Page 7 Step 5 (P5) (P7) (P6) Assemble the canopy, beginning with canopy top (P6) with the thread bolt facing upwards. Place 3 x canopy top (P5) onto the thread bolt and secure them together by screwing the centre finial (P7) onto the top of the thread by turning in a clockwise direction. Step 6 (P5/P6) (P8)
-
Page 8: Job Complete
Step 7 IMPORTANT: Fully tighten all bolts on bed. Periodically check to ensure all bolts remain tight. Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. Page 7 fantasticfurniture.com.au... - Page 9 Version 1.0 Giselle Bed Single fantasticfurniture.com.au...
- Page 10 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
- Page 11 Assembly checklist Read through the instructions carefully Ma ke sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten screws Identify and lay out all of the components before you begin assembly .
- Page 12 What you need to assemble the product 1 x Headboard (P1) 4 x Finials (P3) 1x Cross Bar (P5) 2 x Side Rails (P4) 1 x Footboard (P2) Part List: Box 1: Headboard (P1); Footboard (P2); 4 x Finials (P3); Cross Bar (P5) 26 x Plastic Slat Caps (P6);...
- Page 13 Step 1 You will need 4 x Short Bolts (P1) (H1) (P2) 1 x Allen Key (H3) (H1) Insert 4 x short bolts (H1) into the bottom holes of the headboard (P1) and footboard (P2) using the allen key (H3). Do not fully tighten the bolts and leave a gap of 5mm as shown. Step 2 (H3) (H4)
- Page 14 Step 3 (P7) (P6) (P6) You will need: 26 x Plastic Slat Caps (P6) 13 x Slats (P7) Push 26 x plastic slat caps (P6) firmly onto 13 x slats (P6). Step 4 Lower the slat (P7) with the end connectors (P6) to the side rails (P4). Ensure the plastic slat caps are in place over the side rail holes and apply downward pressure until the plastic slat caps are fully inserted into the rails.
- Page 15 Step 5 (H2) (P3) You will need 4 x Headless Bolts (H2) Screw 4 x headless bolts (H2) into the posts of the headboard (P1) and footboard (P2). Then attach the 4 x finials (P3) by rotating clockwise as shown. Step 6 IMPORTANT: Fully tighten all bolts on bed.
