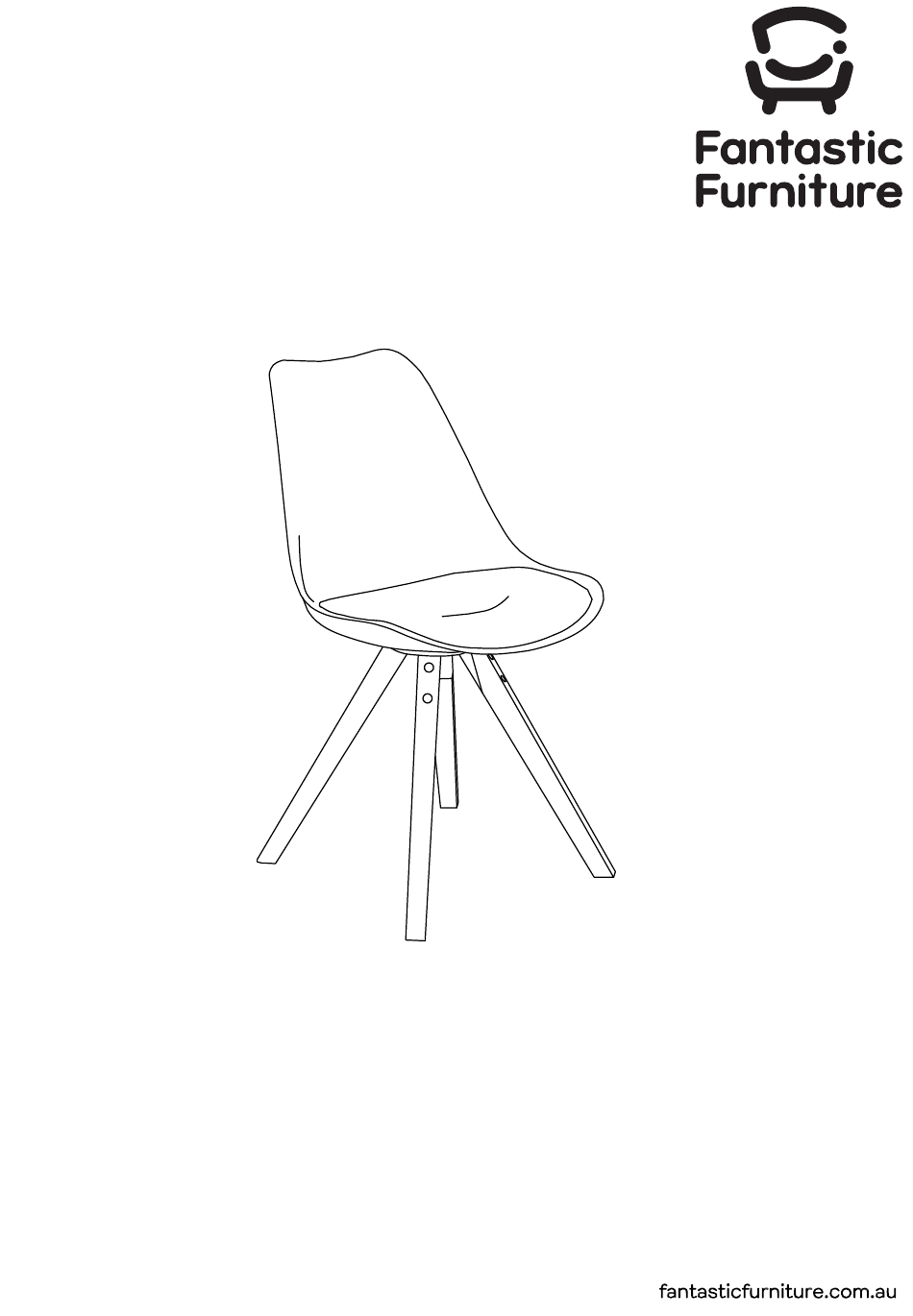

- Page 1 Version 1.0 Dimi Chair...
- Page 2 Fantastic! We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture...
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled. - Page 7 Version 1.0 Hamilton Table D6 Extension fantasticfurniture.com.au...
- Page 8 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...
- Page 9 Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.
- Page 10 What you need to assemble the product Top Panel (P1) DO NOT USE Top Panel (P2) Other tools you need: (P4) Phillips head screwdriver Rail (P3) Block Side Panel (P6) Rail (P5) Rail (P8) Block (P8) (P6) (P4) Rail Block (P9) (P6) Rail...
- Page 11 Step 1 You will need (P9) 6 x Screws 4 x Dowels (H13) (H9) Phillips Head (P8) Screwdriver Attach Rails (P9x2) to Rails (P8x2) with 4 x Dowels (H9) and secure with 6 x Screws (H13). Tightening with the Phillips Head Screwdriver. Step 2 You will need Phillips Head...
- Page 12 This is how a cam nut works..Step 3 The head of the cam bolt goes into the open mouth of the You will need cam nut. You then turn the cam nut so it tightens over the bolt. 4 x Dowels 4 x Cam Nuts (H9) (H12)
- Page 13 Step 5 (P6) You will need (P6) (P5) 12 x Screws Phillips Head (H10) Screwdriver (P5) (P6) (P6) Attach Blocks (P6x4) to Side Panels (P5x2) with 12 x Screws (H10) by tightening with the Phillips Head Screwdriver. Step 6 (P6) (P3) You will need (P6)
- Page 14 Step 7 You will need 8 x Screws 2 x Brackets (H14) (H8) (P11) (P10) Phillips Head Screwdriver Attach 2 x Barckets (H8) to Scab (P10&P11) with 8 x Screws (H14) by tightening with the Phillips Head Screwdriver. Step 8 (P1) (P10) (P11)
- Page 15 Step 9 Push down the Locker, So that the brackets on You will need runner can be moveable 8 x Small 1 x Allen Key Bolts (H7) (H5) Tightly close all table tops before attaching to the runner. Push down the lockeron runner. Attach runner to Top Panels (P1&P2) with 8 x Small Bolts (H7) by tightening with the 1 x Allen Key (H5).
- Page 16 Step 11 (P4) You will need (P4) (P6) 8 x Bolts 8 x Washer (H2) (H1) (P6) (P4) 1 x Allen Key 8 x Washer (P6) (H15) (H6) (P6) Attach Legs (P4 x 4) to Apron Frame (P6 x 4) with 8 x Washers (H2) , 8 x Washers (H6) and 8 x Bolts (H1) by tightening (P4)
-
Page 17: Job Complete
Step 13 You will need (P1) (P10) (P7) 2 x Screws Phillips Head (H10) Screwdriver (P9) (P2) Attach Rails (P7) to Rails (P9x2) with 2 x Screws (H10) by tightening with the Phillips Head Screwdriver. If there exist unwanted gap between table tops, press down the locker on runner, loosen the bolts on bracket a little, tightly close the tops, then... - Page 18 How to close the table Runner Runner locker Push up the locker to allow the runner can be extended . Runner Runner locker Press down the locker to fix the runner. Push up the lockers on two runners, pull left and right table tops outwards, turn down the middle top, close left and right table tops, Press down the lockers to lock the runners.
- Page 19 How to extend the table Runner Runner locker Push up the locker to allow the runner can be extended . Runner Runner locker Press down the locker to fix the runner. Push up the lockers on two runners, pull the left and right table tops outwards, turn up the middle top and insert it into the left and right table tops, Press down the lockers to lock the runners.
