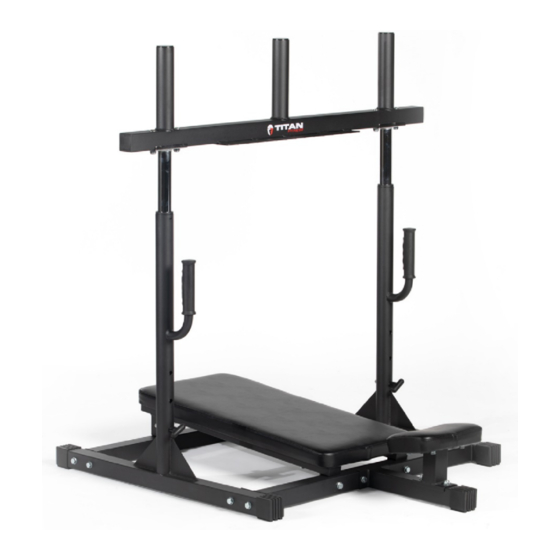

FLAT WEIGHT BENCH

VLEGPRS

400573

Operator's Manual

Read the Operator's Manual entirely. When you see this

symbol, the subsequent instructions and warnings are

serious follow without exception. Your life and the lives

of others depend on it!

Cover photo may show optional equipment not supplied

with standard unit. For an Operator's Manual and Decal

Kit in French or Spanish Language, please see your dealer.

Need help?

Do you have a question about the VLEGPRS and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan Fitness VLEGPRS

Page 1 FLAT WEIGHT BENCH VLEGPRS 400573 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit.
Page 2 PARTS DIAGRAM / EXPLODED VIEW...
Page 3 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION UPRIGHT FRAME (16) END CAP Φ48*2 FRONT CONNECT FRAME (17) END CAP F50 REAR CONNECT FRAME (18) END CAPF50*2 SHORT BASE FRAME (19) END CAP J25*50*2 HEAD CUSHION FRAME (20) CARRIAGE BOLT M10*65 HEX SOCKET HEAD BOLT BACK CUSHION FRAME (21)
Page 4 ASSEMBLY INSTRUCTIONS STEP 1 Assemble Upright Frame (1), Front Connect Frame (2), Back Cushion Frame (6) with Short Base Frame (4), using Hex Head Bolt M10*70 (25), Flat WasherΦ11*Φ20*2 (28). Do not tighten the bolts. Fix the Head Cushion Frame (5) to the Short Base Frame (4), using Hex Bolt M10*65 (20), Flat Washer Φ11*Φ20*2 (28) and Nut M10 (29).
Page 5 ASSEMBLY INSTRUCTIONS STEP 2 Fix the Back Cushion (10) to the Back-Cushion Frame (6), using Hex Head Bolt M8*45 (23), Flat Washer Φ8 (26) and Flat Washer 9*Φ16*1.6 (27). Do not tighten the bolts. Fix the Head Cushion (9) to the Head Cushion Frame (5), using Hex Head Bolt M8*25 (22), Flat Washer Φ8 (26) and Flat Washer 9*Φ16*1.6 (27).
Page 6 ASSEMBLY INSTRUCTIONS STEP 3 Connect the Upright Frame (1), the Front Connect Frame (2) and Rear Connect Frame (3) using Hex Head Bolt M10*65 (24) and Flat WasherΦ11*Φ20*2 (28). Assemble the Knob (13) on the Upright Frame (1). PLEASE TIGHTEN ALL THE BOLTS AND NUTS.
Page 7 ASSEMBLY INSTRUCTIONS STEP 4 Fix the Weight Plate Holder (7) to the Adjustable Frame (7) using Carriage Bolt (20), Flat WasherΦ11*Φ20*2 (28) and NutM10 (29). PLEASE TIGHTEN ALL THE BOLTS AND NUTS.
Page 8 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
