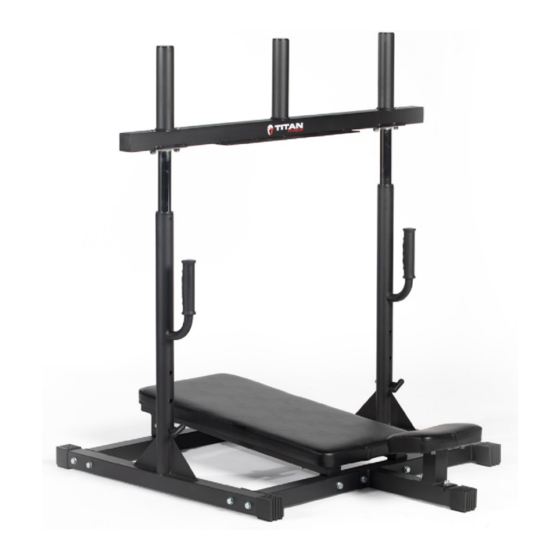

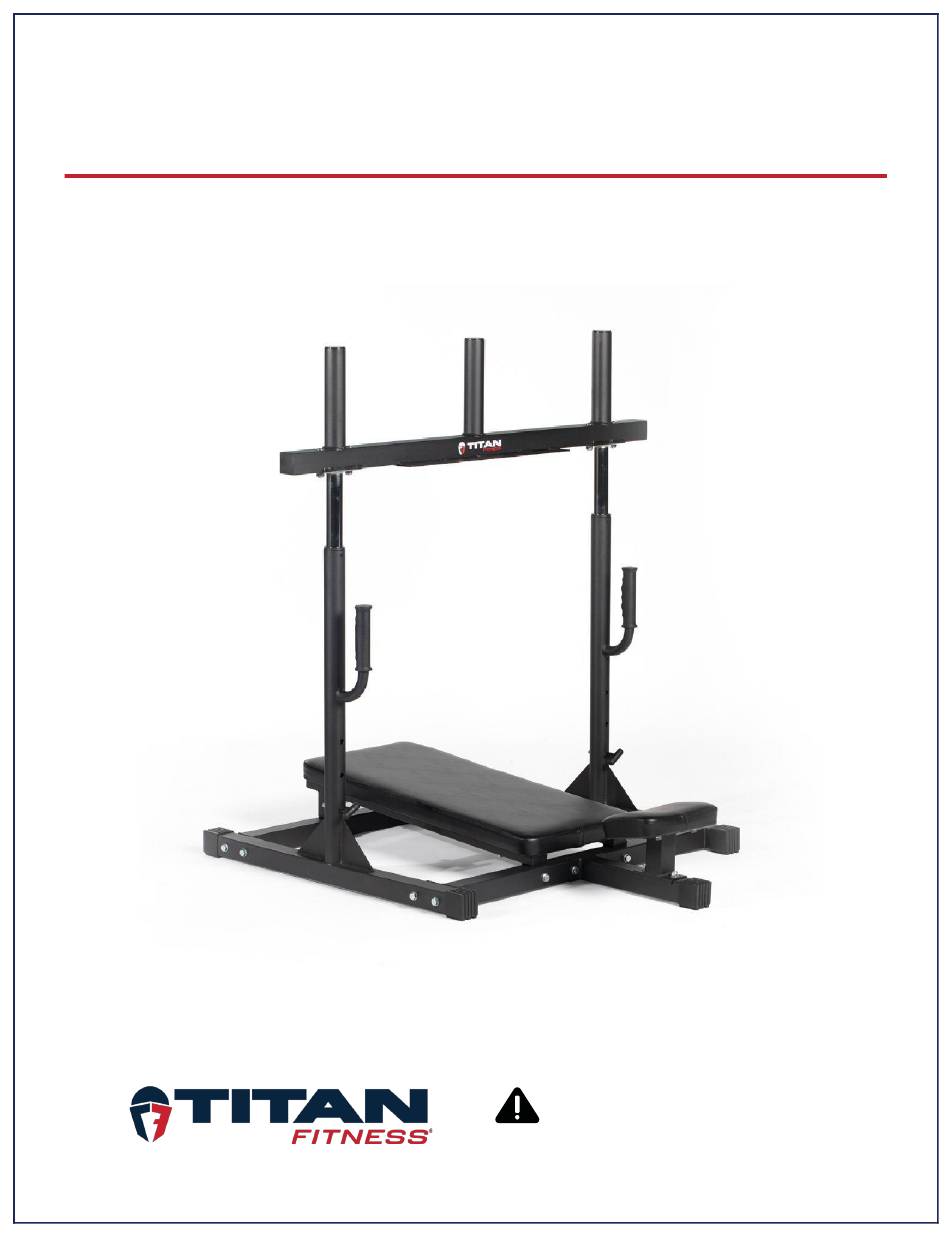

- Page 1 VERTICAL LEG PRESS VLEGPRS 400573 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 FUll PARTS DIAGRAM / EXPLODED VIEW...
- Page 3 FUll PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION UPRIGHT FRAME FRONT CONNECT FRAME REAR CONNECT FRAME SHORT BASE FRAME HEAD CUSHION FRAME BACK CUSHION FRAME ADJUSTABLE FRAME WEIGHT PLATE HOLDER HEAD CUSHION BACK CUSHION HOLLOW SLEEVE END CAP Φ45*Φ38*20 HANDLEBAR GRIP Φ24.5*155 END CAP Φ48*2 END CAP 50*50 END CAP 50*50*2...
- Page 4 ASSEMBLY INSTRUCTIONS Step 1 1. Connect the Front Connect Frame (2), Rear Connecting Frame (3) and Back Cushion Frame (6), using Flat Washer Φ11*Φ20*2 (27), Nut M10 (28) and Hex Bolt M10*70 (24). 2. Assemble the Short Base Frame (4) to the Front Connect Frame (2), using Flat Washer Φ11*Φ20*2 (27), Nut M10 (28) and Hex Bolt M10*70 (24).
- Page 5 ASSEMBLY INSTRUCTIONS Step 2 1. Assemble the Head Cushion (9) to the Head Cushion Frame (5), using Flat Washer Φ9*Φ16*1.6 (26), Spring Washer Φ8 (25) and Hex Bolt M8*25 (21). 2. Assemble the Back Cushion (10) to the Back Cushion Frame (6), using Flat Washer Φ9*Φ16*1.6 (26), Spring Washer Φ8 (25) and Hex Bolt M8*45 (22).
- Page 6 ASSEMBLY INSTRUCTIONS Step 3 1. Assemble the Pin (13) on the Upright Frame (1). 2. Connect the Upright Frame (1), the Front Connect Frame (2) and Rear Connect Frame (3), using Flat Washer Φ11*Φ20*2 (27) and Hex Bolt M10*65 (23).
- Page 7 ASSEMBLY INSTRUCTIONS Step 4 Connect the Adjustable Frame (7) and Weight Plate Holder (8), using Flat Washer Φ11*Φ20*2 (27), Nut M10 (28) and Carriage Bolt M10*65 (19). Tighten all the bolts and nuts.
- Page 8 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
