The SG850 is born from the elegance and prestige that has always distinguished BEINAT S.r.l. and from the home
fitness concept.
The device is a IP66 gas detection unit that, either combined with a BEINAT industrial control unit or in stand alone
mode, detects the presence of:
- Oxygen
- Carbon Dioxide
2
SG850-O FOR OXYGEN DETECTION
This sensor, through an optical fluorescence technology based sensor, detects the presence of: Oxygen (O
With this probe it is possible to:
1) S A
ELECT THE LARM INTERVENTION FOR
2) S
ELECT THE POSITIVE SAFETY OF THE RELAY

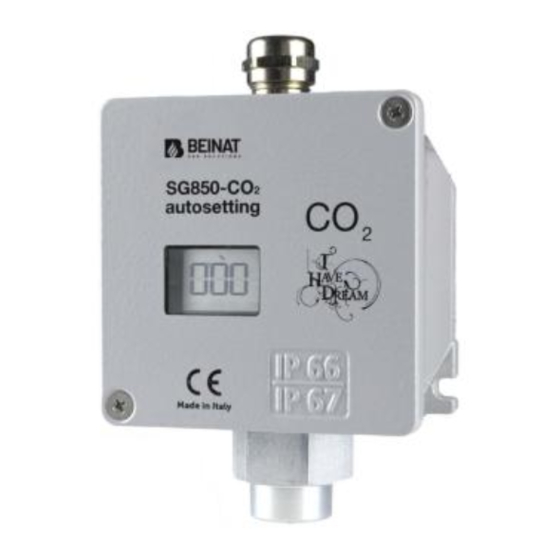

SG850-CO FOR CARBON DIOXIDE DETECTION
2
This sensor, through an infrared technology based sensor, detects the presence of: Carbon dioxide (CO
With this probe it is possible to:
1) S A
ELECT LARM THRESHOLDS
2) S
ELECT THE POSITIVE SAFETY OF THE RELAY
The probe is managed by a microprocessor which not only supplies an alarm signal to the control unit connected to
the device, but also maneges the execution of a self-diagnosis, and related AUTOMATIC CALIBRATION, in order to always
have the maximum detection accuracy.
With this self-calibration the probe adapts its detection in harsh and variable temperature environments, avoiding false
alarms due to anomalous events.
The sensor, based on its range of detection, has a linear output conforming to the 4 ÷ 20mA standard, for which can
be connected with one of BEINAT's industrial control units.
Instrument of testing TS1008
To facilitate the reading of the functional parameters of the probe as well as the
control of annual operating, the BEINAT S.r.l. has built a new portable tester TS1008.
The tester allows to read all the data in the memory of the probes eand by serial
transmission, it prints the ticket that confirms the testing data, certifying your own work.
Important:
Assembly / maintenance of the appliance must be carried out by qualified personnel and in accordance with
applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with particular
environmental and / or installation standards.
Important note
Before connecting the equipment, it is recommended that you read the instruction manual carefully and keep
it for future reference. It is also recommended to perform the electrical connections correctly as per enclosed
drawings, observing the instructions and the Standards.
N.B. Refer to the documentation in all cases where the symbol is on the side

Installation and
user guide
Stand-alone Gas Sensor SG850
: > O E
XYGEN XCESS OR
: 5%, 10%, 15% 20%
OR
Install in a safe area
No ATEX
<D
EFICIENCY
CONFORMITY
Installation EN 60079-29-2
Reports issued by TUV Italia
Electric connections also available on
Channel: Beinat gas solutions
Belonging to
V. R4
2 )
)
2
EN 50270
EN 61010-1
Compliant EN 60079-29-1
