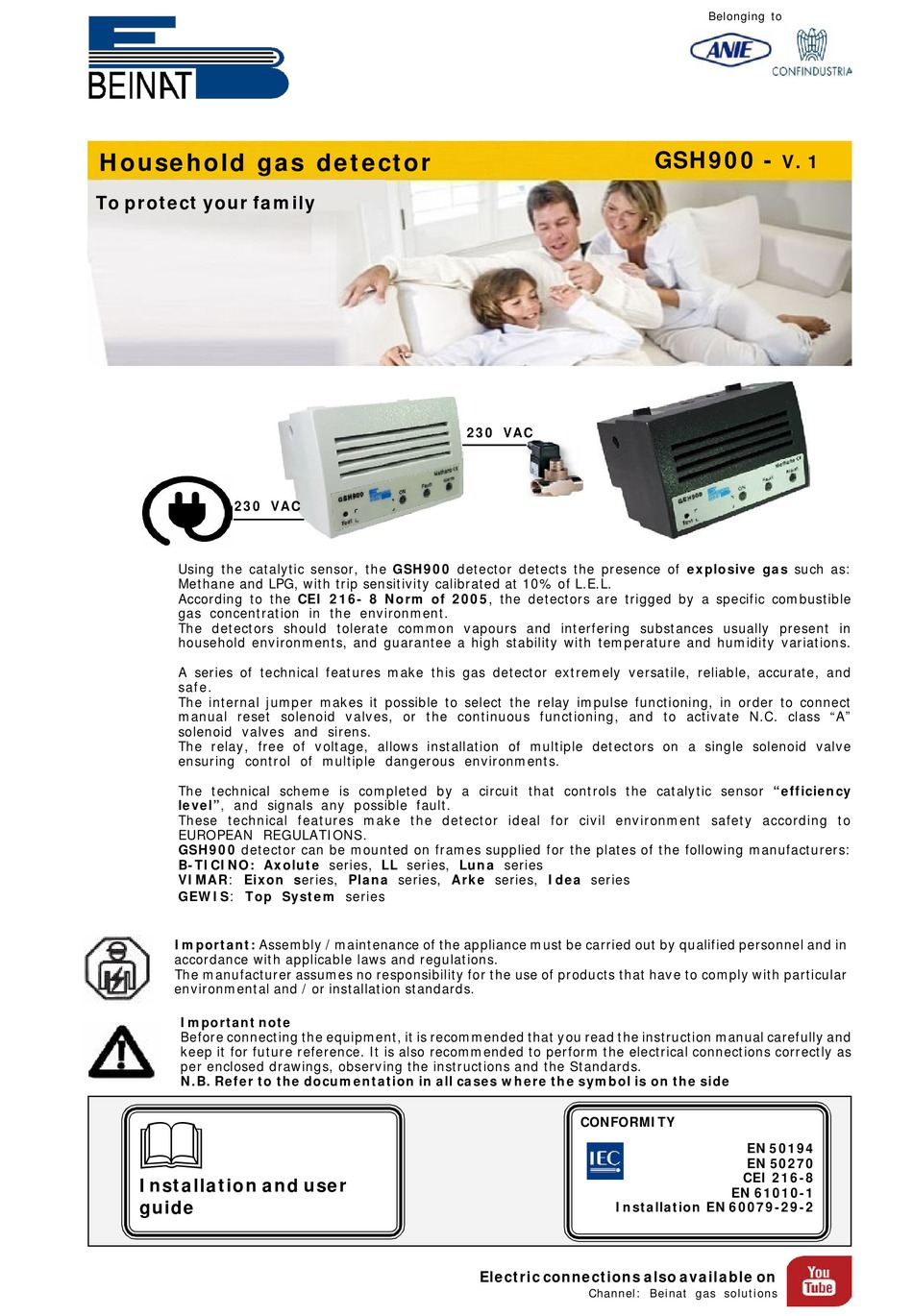

Household gas detector
To protect your family
230 VAC
Using the catalytic sensor, the GSH900 detector detects the presence of explosive gas such as:
Methane and LPG, with trip sensitivity calibrated at 10% of L.E.L.
According to the CEI 216- 8 Norm of 2005, the detectors are trigged by a specific combustible
gas concentration in the environment.
The detectors should tolerate common vapours and interfering substances usually present in
household environments, and guarantee a high stability with temperature and humidity variations.
A series of technical features make this gas detector extremely versatile, reliable, accurate, and
safe.
The internal jumper makes it possible to select the relay impulse functioning, in order to connect
manual reset solenoid valves, or the continuous functioning, and to activate N.C. class "A"
solenoid valves and sirens.
The relay, free of voltage, allows installation of multiple detectors on a single solenoid valve
ensuring control of multiple dangerous environments.
The technical scheme is completed by a circuit that controls the catalytic sensor "efficiency
level",
and signals any possible fault.
These technical features make the detector ideal for civil environment safety according to
EUROPEAN REGULATIONS.
GSH900 detector can be mounted on frames supplied for the plates of the following manufacturers:
B-TICINO: Axolute series, LL series, Luna series
VIMAR: Eixon series, Plana series, Arke series, Idea series
GEWIS: Top System series
Important: Assembly / maintenance of the appliance must be carried out by qualified personnel and in
accordance with applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with particular
environmental and / or installation standards.
Important note
Before connecting the equipment, it is recommended that you read the instruction manual carefully and
keep it for future reference. It is also recommended to perform the electrical connections correctly as
per enclosed drawings, observing the instructions and the Standards.
N.B. Refer to the documentation in all cases where the symbol is on the side
Installation and user
guide
230 VAC
CONFORMITY
Installation EN 60079-29-2
Electric connections also available on
Channel: Beinat gas solutions
Belonging to
GSH900 -
V. 1
GSH900
EN 50194
EN 50270
CEI 216-8
EN 61010-1
Advertisement
Table of Contents
Related Manuals for BEINAT GSH900
Summary of Contents for BEINAT GSH900
- Page 1 230 VAC 230 VAC Using the catalytic sensor, the GSH900 detector detects the presence of explosive gas such as: Methane and LPG, with trip sensitivity calibrated at 10% of L.E.L. According to the CEI 216- 8 Norm of 2005, the detectors are trigged by a specific combustible gas concentration in the environment.
- Page 2 INSTALLATION When performing the installation, please remind that if you pierce the GSH900 container, it will lose its properties and its conformity to REGULATIONS. TERMS and EXPECTATIONS...
- Page 3 Alarm 1) MAINS connected indication LED. After turning on, the GSH900 performs a test of the sensor’s efficiency status, and gets it to the functioning temperature. This phase lasts about 60 seconds. At the end, the detector will issue a “BEEP”.
- Page 4 Turn on and testing After turning on, the GSH900 performs a test of the sensor’s efficiency status, and gets it to the functioning temperature. This phase lasts about 60 seconds. At the end, the detector will issue a “BEEP”. Then it is ready for detection.
- Page 5 Check that the wiring is correct and that the jumper that carries power to the relay has been set properly. All relays must be free from electrical power. Check the drawing of the connections. If other problems arise, a specialised and/or authorised technician and/or the Distributor of BEINAT S.r.l. should be contacted directly.
- Page 6 Carefully follow the instructions and the connections according to Regulations in force. An automatic disconnetting switch (appropriately identified as the detector sectioning device) must be incorporated in the electrical system, suitably located and easily accessible. Connection Scheme of GSH900 Detector WARNING ! All relays are free of voltage.
- Page 7 with a normally open valve 230VAC Connection Scheme WARNING ! All relays are free of voltage. Power supply 230 V Electrovalve with a normally open valve 230VAC One or more detectors Connection 230V ac with a normally close valve 230VAC One or more detectors Connection 230V ac...
- Page 8 Dealer Stamp Purchase Date: Registration Number : Beinat S.r.l. following the targhet to improve its products, reserves the right to modify the technical features, aesthetic and functional any time without prior notice.. BEINAT S.r.l. Via Fatebenefratelli 122/C 10077, S. Maurizio C/se (TO) - ITALY Tel.
