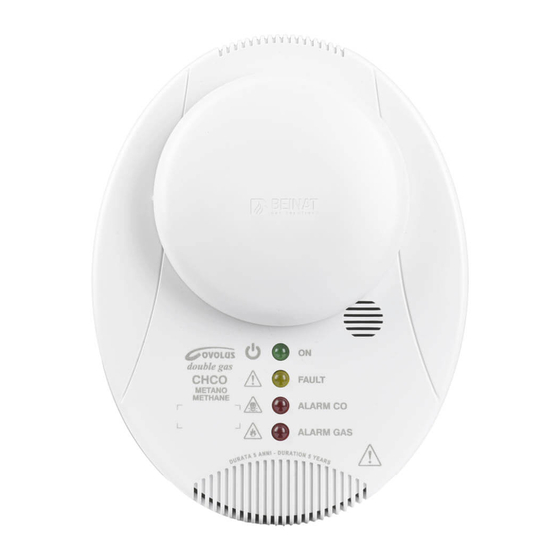

CHCO Double Gas Detector
The CHCO Detector has been designed and built according to European regulations to
detect the presence of
A microprocessor is used to create a complete surveillance and control system with
maximum flexibility. Thanks to this and its other features, this detector is suitable for
household applications.
The CHCO Detector can
The first gas detected is Methane, with trip sensitivity calibrated at 10% of L.E.L.
The second gas detected is Carbon Monoxide, when both the maximum CO admissible
concentration threshold of 300ppm is exceeded, and when low CO concentrations persist
in the environment for lengthy periods, which according to the principle of accumulation
could also damage the human organism.
The probe can activate solenoid valves, sirens, and any other signal or alarm handling
devices using built-in relays. A series of technical features make this detector extremely
versatile, reliable, accurate, and safe.
The relay, free of voltage, allows installation of multiple detectors on a single solenoid valve
ensuring control of multiple dangerous environments.
The detector is complete with a special circuit that controls the sensor's efficiency level, and
signals any possible fault. The external container has an IP42 protection degree.
F i r m w a r e .
User Guide
Ver sione 3 .1
Firmware
Version 1.0
Important Note
Before connecting the unit careful reading of instruction booklet is recommended, and it is kept
in a safe place for future reference. Furthermore, the correct electrical connections according to
the enclosed drawings, complying with instructions and Regulations in force, is recommended.
toxic and explosive
detect the presence of two gases.
CONFORMITY
gas.
Belonging to
Made in Italy
CHCO
EN 50194
EN 50291
CEI 216-3
EN 50270
Advertisement
Table of Contents
Related Manuals for BEINAT CHCO
Summary of Contents for BEINAT CHCO

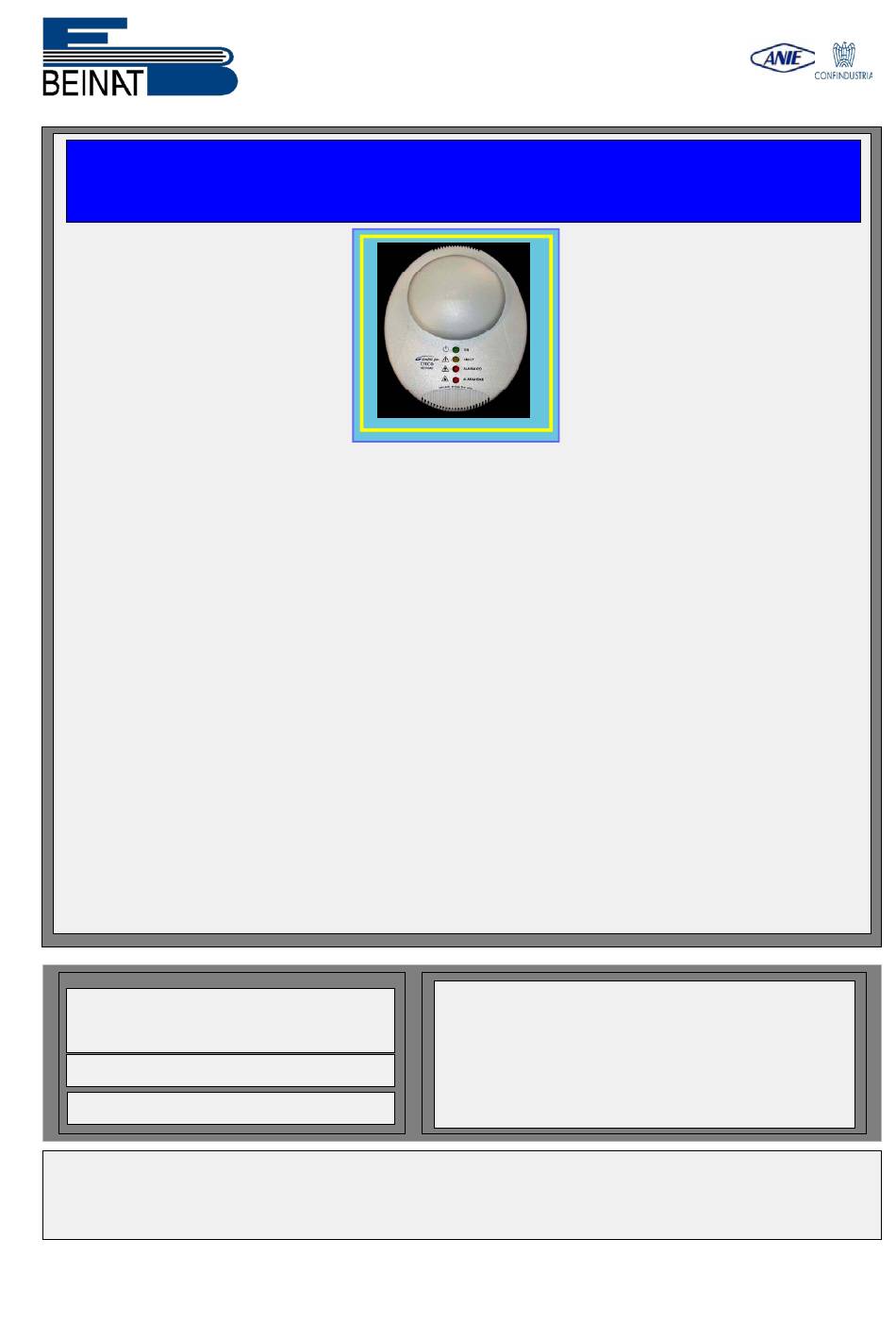

- Page 1 Belonging to Made in Italy CHCO Double Gas Detector CHCO The CHCO Detector has been designed and built according to European regulations to detect the presence of toxic and explosive gas. A microprocessor is used to create a complete surveillance and control system with maximum flexibility.
- Page 2 In order to achieve long and satisfactory use of your CHCO gas detector,, use it by respecting the following precautions.
- Page 3 This phase takes about 100 seconds. Afterwards the LED stays on without blinking. During the test period, the CHCO does not detect the gas. 2) FAULT indication LED. If this LED turns on, it means that one of the gas detection sensors is not working efficiently and must be replaced in an authorized centre.
- Page 4 -10°C or over 40°C. When powering on the CHCO, you will see that the MAINS LED lights up and starts blinking for about 100 seconds. Afterward the LED stays on without blinking. Now, the CO922 is ready.
- Page 5 Check that the wiring is correct and that the jumper that carries power to the relay has been set properly. All relays are free from electrical power. Check the drawing of the connections. If other problems arise, a specialised and/or authorised technician and/or the Distributor of BEINAT S.r.l. should be contacted directly. Page 5...
- Page 6 Carefully follow the instructions and the connections according to Regulations in force, keeping in mind that the signal cables should be laid separate from the power cables. Connection Scheme of CHCO Detector WARNING ! The Relay is free of voltage.
- Page 7 normally open valve 230VAC Connection Scheme WARNING ! The Relay is free of voltage. Power Supply Electrovalve 230 V with a normally open valve 230VAC One or more detectors Connection 230V ca with a normally close valve 230VAC One or more detectors Connection 230V ca WARNING !
- Page 8 Defects caused by unauthorized personnel tampering, incorrect installation and negligence resulting from phenomena outside normal functioning shall be excluded from the warranty. BEINAT S.r.l. is not liable for possible damage, direct or indirect, to people, animals, or things; from product faults and from its enforced suspension of use.
