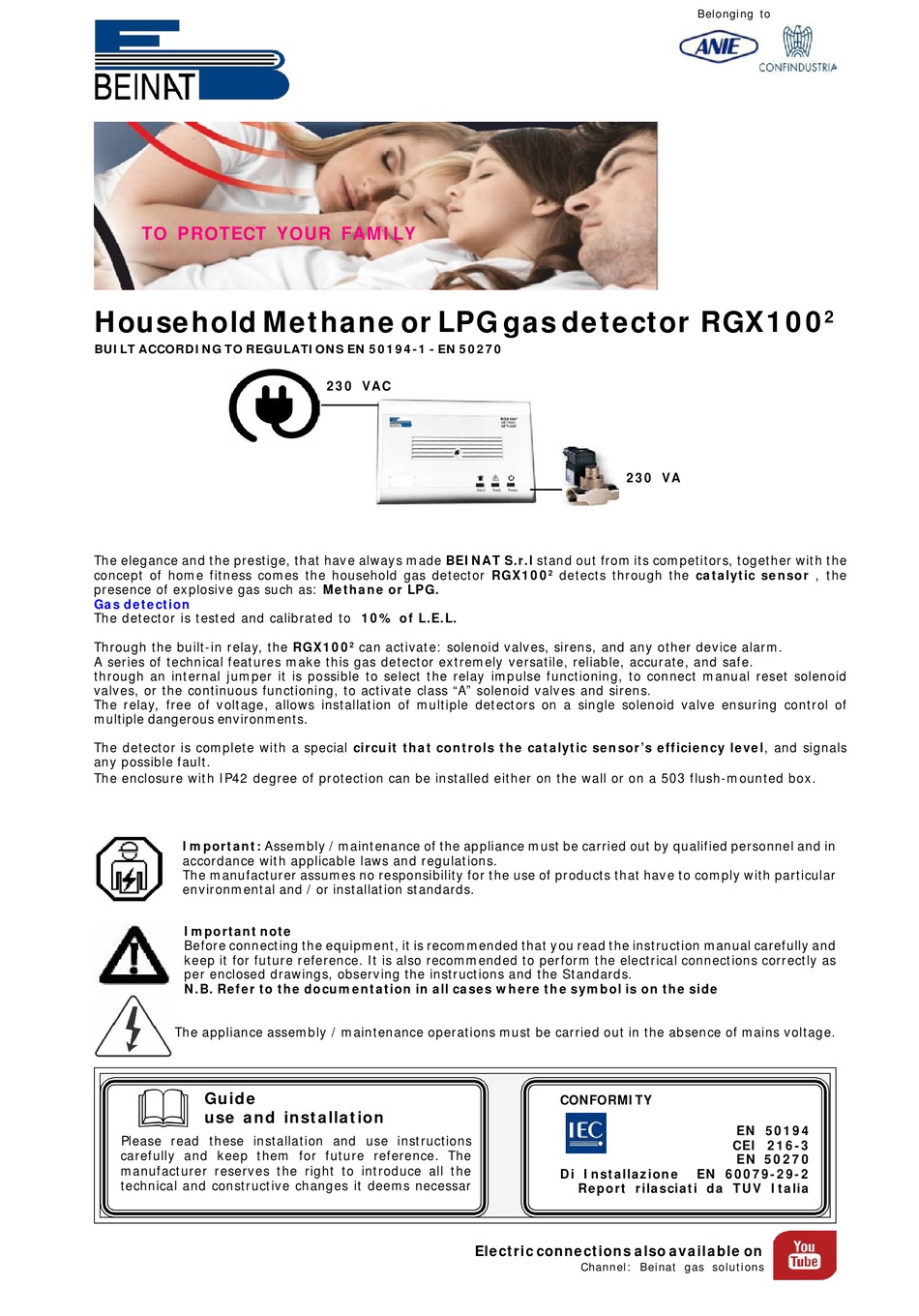

Household Methane or LPG gas detector RGX100
BUILT ACCORDING TO REGULATIONS EN 50194-1 - EN 50270
The elegance and the prestige, that have always made BEINAT S.r.l stand out from its competitors, together with the
concept of home fitness comes the household gas detector RGX100
presence of explosive gas such as: Methane or LPG.
Gas detection
The detector is tested and calibrated to 10% of L.E.L.
Through the built-in relay, the RGX100
A series of technical features make this gas detector extremely versatile, reliable, accurate, and safe.
through an internal jumper it is possible to select the relay impulse functioning, to connect manual reset solenoid
valves, or the continuous functioning, to activate class "A" solenoid valves and sirens.
The relay, free of voltage, allows installation of multiple detectors on a single solenoid valve ensuring control of
multiple dangerous environments.
The detector is complete with a special circuit that controls the catalytic sensor's efficiency level, and signals
any possible fault.
The enclosure with IP42 degree of protection can be installed either on the wall or on a 503 flush-mounted box.
Important: Assembly / maintenance of the appliance must be carried out by qualified personnel and in
accordance with applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with particular
environmental and / or installation standards.
Important note
Before connecting the equipment, it is recommended that you read the instruction manual carefully and
keep it for future reference. It is also recommended to perform the electrical connections correctly as
per enclosed drawings, observing the instructions and the Standards.
N.B. Refer to the documentation in all cases where the symbol is on the side
The appliance assembly / maintenance operations must be carried out in the absence of mains voltage.
Guide
use and installation
Please read these installation and use instructions
carefully and keep them for future reference. The
manufacturer reserves the right to introduce all the
technical and constructive changes it deems necessar
230 VAC
2
can activate: solenoid valves, sirens, and any other device alarm.
Electric connections also available on
Belonging to
230 VA
2
detects through the catalytic sensor , the
CONFORMITY
Di Installazione
EN 60079-29-2
Report rilasciati da TUV Italia
Channel: Beinat gas solutions
2
EN 50194
CEI 216-3
EN 50270
Advertisement
Table of Contents
Related Manuals for BEINAT RGX1002
Summary of Contents for BEINAT RGX1002
- Page 1 230 VAC 230 VA The elegance and the prestige, that have always made BEINAT S.r.l stand out from its competitors, together with the concept of home fitness comes the household gas detector RGX100 detects through the catalytic sensor , the presence of explosive gas such as: Methane or LPG.
- Page 2 When doing the electrical connections, follow the drawing closely. Any use of the detector for purposes other than the intended one is considered improper, and as a result of which BEINAT S.r.l. therefore disclaims any responsibility for possible damages caused to people, animals or objects.
- Page 3 Dimensions 37 mm Rear view 5 mm 83 mm Fixing holes Pass cables 120 mm Wall installation 1 2 3 4 5 Pass cables Installation on 503 box The installation of the detector does not exempt from ..The compliance with all regulations concerning the characteristics, installation and use of gas appliances.
- Page 4 Components and commands Buzzer Catalytic sensor Serial Number 7) Serial Number Label Year 2019 1 2 3 4 5 JUMPER to select the relay Terminal Block 1) MAINS Led FAULT LED ALARM LED TEST button 1) MAINS connected indication LED (ON). 2) FAULT LED and decadence of the functioning period If this LED turns on, it means that the gas detection catalytic sensor is not working efficiently and must be replaced by an authorized service center.
- Page 5 Installation measures and positioning Currently national standards enforceable in the installation country covering the installation and use of gas powered equipment are to be respected, as are standards covering smoke dispersion and ventilation of enclosed areas, even though gas detection equipment is installed. Essential element for the correct functioning of the detector is its correct installation.
- Page 6 Electrical connections WARNING Before connecting to the mains power, ensure the voltage is correct. Carefully follow the instructions and the connections according to Regulations in force. An automatic disconnetting switch (appropriately identified as the detector sectioning device) must be incorporated in the electrical system, suitably located and easily accessible. Principle Schemes of the Detector ATTENTION ! The relay is voltage free...
- Page 7 Do not tamper with the detector In order not to cause decalibration of the device and electric shock. If other problems arise, it is necessary to call a specialised and/or authorised technician and/or the Distributor of BEINAT S.r.l. should be contacted directly. Page 7...
- Page 8 Dealer Stamp Purchase Date: Registration Number : Beinat S.r.l. following the targhet to improve its products, reserves the right to modify the technical features, aesthetic and functional any time without prior notice.. BEINAT S.r.l. Via Fatebenefratelli 122/C 10077, S. Maurizio C/se (TO) - ITALY Tel.
